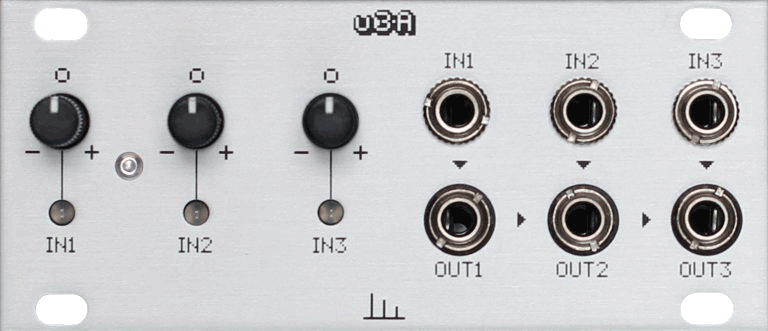

The u3A (v1) is a three channel attenuverter DIY kit for the 1U Intellijel format. Useful for scale, add offset, invert or sum signals. As each input is normalled to +5V, with nothing plugged into the jacks, each knob controls a voltage range from -5V to +5V. Each output is also summed to the adjacent channel on the right when no cable is connected.
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
DIY-Kit-Type:
SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 30 |
|---|---|
| Current draw -12 V [mA]: | 30 |
| DIY Level: | Easy |
| Depth [mm]: | 30 |
| Width [HP]: | 18 |
| Format: | 1U |
| Panel / Color: | Silver Alu |
