Threetom Modular - Mixing Flask
Product number:
100058
Product information "Threetom Modular - Mixing Flask"

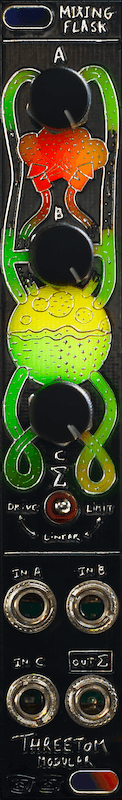

The Threetom Modular “Mixing Flask” is a utility mixer offering mix-bus limiting and a cornucopia of indicator lights integrated behind a unique chemical lab-inspired front panel.
I designed Mixing Flask as a solution to my main three gripes with conventional utility mixers:
• Mixing too hot is too easy, leading to hard clipping on the mix-bus. And even when there’s an indicator light to warn you when this is happening, there are no features to actively prevent it.
• Utility mixers usually only offer unity gain, so when you have a weak input signal (like a MTM Radio Music), you’re out of luck
• They’re nauseatingly boring
MIXING FLASK provides solutions to these annoyances in the following ways:
• I’ve implemented a soft-clipping limiting circuit on the mix-bus (inspired by DOPPIO). The highest setting prevents the mix-bus from hard clipping altogether in favor of warm saturation.
• All inputs have a gain of +6dB allowing you to better equalize between volumes while maintaining a hot mix-bus output
• The myriad of indicator lights and front-panel graphics make you feel like a mad scientist in your modular chemical lab. I bet you won’t find another utility mixer that makes mixing more exciting than Mixing Flask!
Use cases:
• Mix oscillator waveforms without the risk of hard-clipping
• Mix CV signals while keeping an eye on what’s coming in and going out
• Give a gentle boost to weak input signals (e.g. from a sampler module)
• Have a utility mixer in your case that’s interesting to look at, and doesn’t bore you to death!
Features:
• Three different flavors of saturation on the mix output (hard clipping, soft/hard clipping, or soft-limiting)
• Three inputs with up to +6dB of gain, and bipolar monitor lights
• One mix output with three-stage bipolar monitor lights (signal present, signal nominal, hard-clipping warning)
• Backlit chemical-lab-inspired front-panel graphics

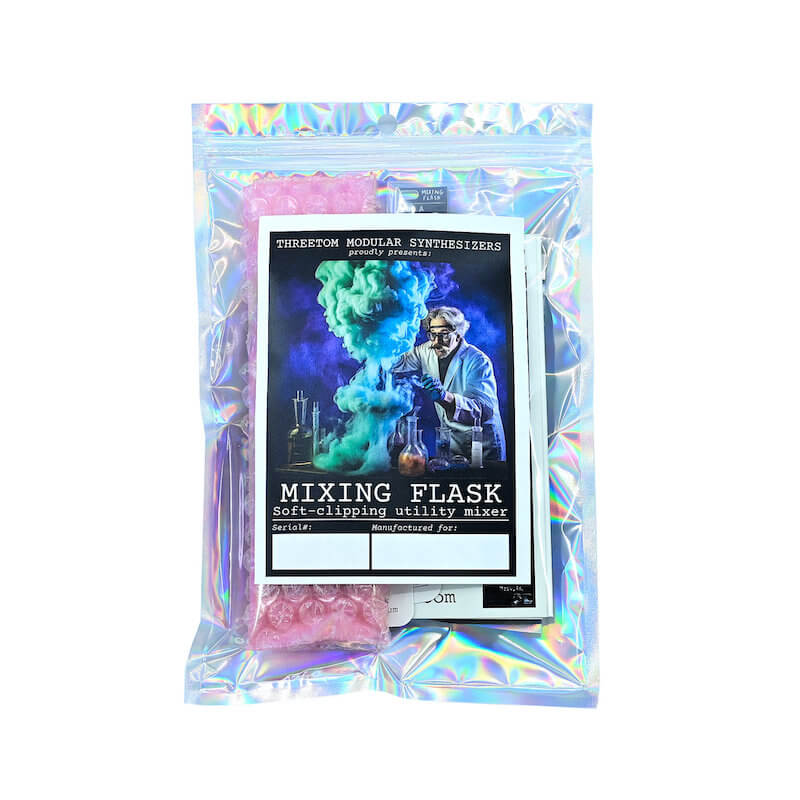

DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
I designed Mixing Flask as a solution to my main three gripes with conventional utility mixers:
• Mixing too hot is too easy, leading to hard clipping on the mix-bus. And even when there’s an indicator light to warn you when this is happening, there are no features to actively prevent it.
• Utility mixers usually only offer unity gain, so when you have a weak input signal (like a MTM Radio Music), you’re out of luck
• They’re nauseatingly boring
MIXING FLASK provides solutions to these annoyances in the following ways:
• I’ve implemented a soft-clipping limiting circuit on the mix-bus (inspired by DOPPIO). The highest setting prevents the mix-bus from hard clipping altogether in favor of warm saturation.
• All inputs have a gain of +6dB allowing you to better equalize between volumes while maintaining a hot mix-bus output
• The myriad of indicator lights and front-panel graphics make you feel like a mad scientist in your modular chemical lab. I bet you won’t find another utility mixer that makes mixing more exciting than Mixing Flask!
Use cases:
• Mix oscillator waveforms without the risk of hard-clipping
• Mix CV signals while keeping an eye on what’s coming in and going out
• Give a gentle boost to weak input signals (e.g. from a sampler module)
• Have a utility mixer in your case that’s interesting to look at, and doesn’t bore you to death!
Features:
• Three different flavors of saturation on the mix output (hard clipping, soft/hard clipping, or soft-limiting)
• Three inputs with up to +6dB of gain, and bipolar monitor lights
• One mix output with three-stage bipolar monitor lights (signal present, signal nominal, hard-clipping warning)
• Backlit chemical-lab-inspired front-panel graphics
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 36 |
|---|---|
| Current draw -12 V [mA]: | 36 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 36 |
| Width [HP]: | 4 |
| Format: | 3 U |
| Panel / Color: | Black FR4 |
