Song Huei R0904N (vertical)
Product number:
103001B105RD
Product information "Song Huei R0904N (vertical)"

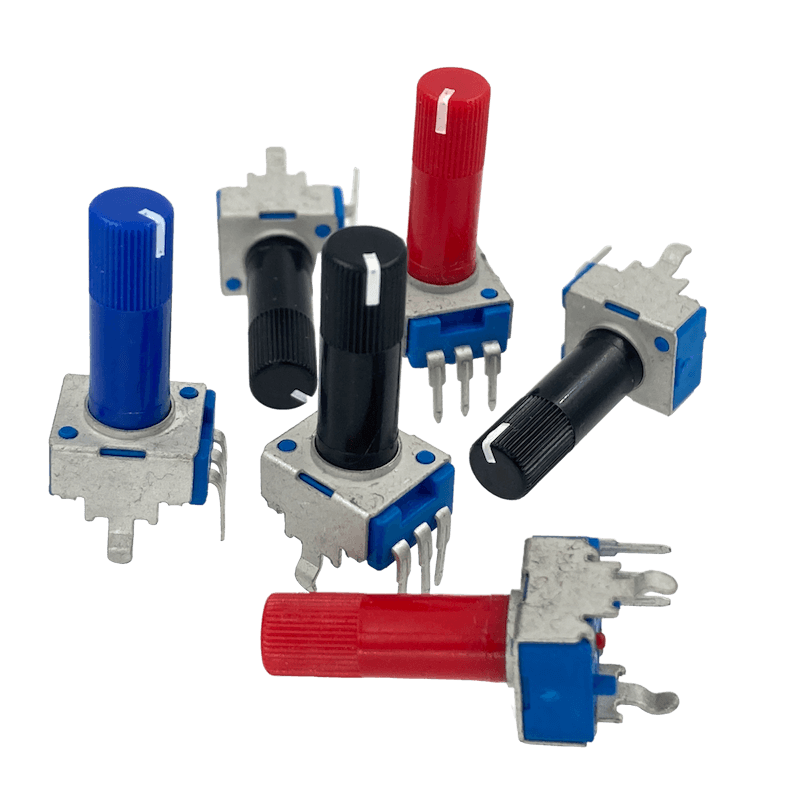

The usual Song Huei R0904N alias tall trimmer pot. Vertical 9mm snap-in trimmer potentiometer with knurled 17mm long shaft. Linear (B) and logarithmic (A) taper, black, blue or red shaft (colors might run out, black should be always available). Rotation angle 280°. 6mm diameter round, knurled shaft with white indicator line.
| Mounting / Direction: | PCB, Vertical |
|---|---|
| Number of Tapers: | 1 |
| Resistance [Ω]: | 1 M |
| Rotation Angle [Deg]: | 280 |
| Shaft Length [mm]: | 17 |
| Shaft Material / Color: | Plastics / Red |
| Shaft Type: | 6 mm Pointer |
| Special Features: | white Pointer, no Knob needed |
| Taper Characteristics: | B (lin) |
| Threading: | None |
| Threading Length [mm]: | None |
