Sinusoda - Juice & Straw
Product information "Sinusoda - Juice & Straw"

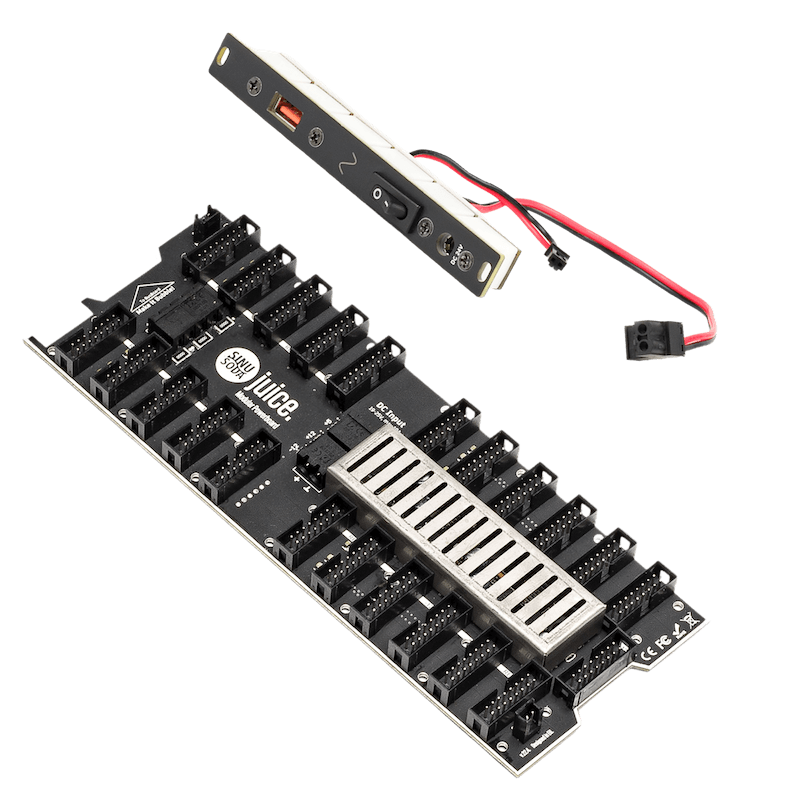

Juice Powerboard is Sinusoda’s Ultra Low Noise power supply solution offering up to +12V: 3A / -12V: 1.5A / +5V: 2A of clean power for your synths. Several Juices can be connected together in series for more power - 2 Juices can be powered from one 96 W Brick, and 4 Juices with 200 W Brick.
Every output is actively filtered giving your modules really clean power. There are also various protective measures so that even if something unexpected happens your precious modules should be safe. Precise information and full technical data sheet available at https://sinusoda.com
No power brick included - you will need to buy power brick separately.
Dimensions:
Juice: 226 x 86 x 19 mm
Straw: 3U, 3 HP, 22 mm Depth
Every output is actively filtered giving your modules really clean power. There are also various protective measures so that even if something unexpected happens your precious modules should be safe. Precise information and full technical data sheet available at https://sinusoda.com
No power brick included - you will need to buy power brick separately.
Dimensions:
Juice: 226 x 86 x 19 mm
Straw: 3U, 3 HP, 22 mm Depth
| Current out +5 V [mA]: | 2000 |
|---|---|
| Current out +12 V [mA]: | 3000 |
| Current out -12 V [mA]: | 1500 |
| DIY Level: | NOT DIY |
| Depth [mm]: | 22 |
| Height [mm]: | N/A |
| Max power input [W]: | 96 |
| Number of Power-Pinheader: | 23 |
| Power Input Type (pri.): | 19 - 25 Vdc / Barrel (5,5/2,5) |
| Width [HP]: | 3 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
Manufacturer / Hersteller:
JLF Sp. z o.o.
ul. Bieniewicka 22 m.17
01-632 Warszawa
Poland
