SetonixSynth - Noise Complaint (1U)
Product information "SetonixSynth - Noise Complaint (1U)"

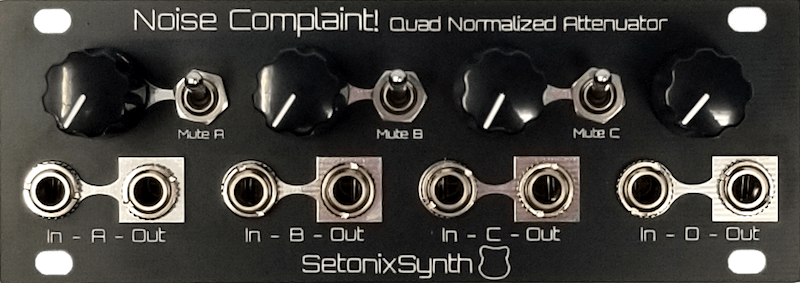

The SetonixSynth Noise Complaint! is a passive utility module which provides a bank of four passive attenuators which can be used with audio or CV. Each of the Noise Complaint’s four inputs are normalized (left to right), so that with nothing patched to a channel’s input it can be used as an attenuated mult, distributing up to four versions of one input signal and opening up myriad control possibilities, such as use of Channel One as a Macro control over the three other outputs. Channels 1-3 also have muting switches for performance-friendliness and preservation of settings.
The Noise Complaint! has proven to be a very useful module for attenuation of all kinds, and adds a nice-feeling, sturdy set of performance controls to what is often a cluttered rack full of densely-packed jacks and tiny attenuation knobs.
Features:
• Four passive attenuator channels, three with mute switch
• Inputs normalized A-D for use as an attenuated mult and more
• Sturdy, performance-friendly hardware and design
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Noise Complaint! has proven to be a very useful module for attenuation of all kinds, and adds a nice-feeling, sturdy set of performance controls to what is often a cluttered rack full of densely-packed jacks and tiny attenuation knobs.
Features:
• Four passive attenuator channels, three with mute switch
• Inputs normalized A-D for use as an attenuated mult and more
• Sturdy, performance-friendly hardware and design
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| DIY Level: | Easy |
|---|---|
| Depth [mm]: | 15 |
| Width [HP]: | 22 |
| Format: | 1U |
| Panel / Color: | Black FR4 |
