Sebsongs - Sampler
Product information "Sebsongs - Sampler"

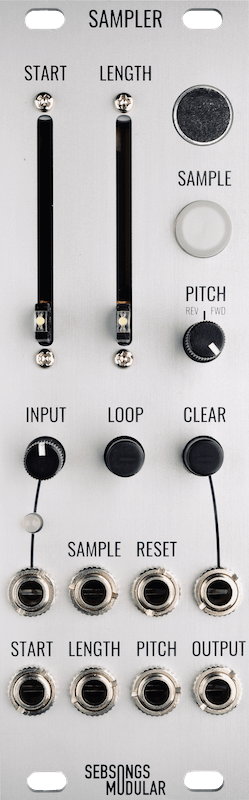

The Sebsongs Modular SAMPLER is an intuitive 12 bit audio recorder and manipulator designed for short loops and one shots. Sounds can be recorded either with the built in microphone or a mono input jack, which can handle anything from a regular laptop or smartphone to modular level signals. The SAMPLER has granular control of the recorded audio and you can play around with pitch, forward and reverse, start position and loop length (or connect cv/gate to any parameter) to open up a world of interesting sounds!
The SAMPLER can be used in looping mode, where for instance time stretch like effects can be obtained easily by modulating the start parameter, or in one shot mode where the reset input is used to trigger playback of the recorded audio and the SAMPLER can function as a drum sample player.
The maximum recording length is around 3.5 seconds in the highest sample rate (pitch control fully forward or reverse). If you lower the pitch you get longer recording time. Change the pitch while sampling to obtain pitch fluctuations and tape stop effects.
Sound can be recorded either with the built in electret microphone or via mono input jack*. The audio input has enough gain for amplifying regular laptop or smartphone headphone outputs, and the input can also handle modular level signals.
* If connecting stereo signal from a laptop / smartphone via either TS or TRS mini jack cable it is advisable to pan the source fully left to avoid distortion.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The SAMPLER can be used in looping mode, where for instance time stretch like effects can be obtained easily by modulating the start parameter, or in one shot mode where the reset input is used to trigger playback of the recorded audio and the SAMPLER can function as a drum sample player.
The maximum recording length is around 3.5 seconds in the highest sample rate (pitch control fully forward or reverse). If you lower the pitch you get longer recording time. Change the pitch while sampling to obtain pitch fluctuations and tape stop effects.
Sound can be recorded either with the built in electret microphone or via mono input jack*. The audio input has enough gain for amplifying regular laptop or smartphone headphone outputs, and the input can also handle modular level signals.
* If connecting stereo signal from a laptop / smartphone via either TS or TRS mini jack cable it is advisable to pan the source fully left to avoid distortion.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 106 |
|---|---|
| Current draw -12 V [mA]: | 12 |
| DIY Level: | Medium/Advanced |
| Depth [mm]: | 40 |
| Width [HP]: | 8 |
| Format: | 3U |
| Panel / Color: | Silver Alu |
Manufacturer / Hersteller:
Thonk Ltd.
New England House
BN1 4GH Brighton
UK
support@thonk.co.uk
EU responsible:
Sebsongs Industries
Gustaf Rydbergsgatan 16 Lgh 1001
21755 MALMÖ
Sweden
info@sebsongs.com
Product Safety Information
Eurorack DIY Kits
Important Notice & Intended Use
Please read this safety guide before installation or use. This kit is intended for adult users experienced in electronics and modular synthesis. Assembly, including soldering, is required. Proper testing and installation are essential to ensure safe and functional operation. The completed module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
General Warnings
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
• Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the module.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it in your Eurorack system. When the unit has malfunctions due to incorrect assembly, the entire Eurorack system might be damaged. It's a good idea to test it in a separate case with only that single module.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Mount securely in a Eurorack case using the provided screws.
• Use only the included or manufacturer-recommended power cable.
• Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
Contact Information
For further assistance, contact the manufacturer (you'll find the info under each product in our shop) or our shop support team at:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19, 04229 Leipzig, Germany
support@exploding-shed.com
Thonk Ltd.
New England House
BN1 4GH Brighton
UK
support@thonk.co.uk
EU responsible:
Sebsongs Industries
Gustaf Rydbergsgatan 16 Lgh 1001
21755 MALMÖ
Sweden
info@sebsongs.com
Product Safety Information
Eurorack DIY Kits
Important Notice & Intended Use
Please read this safety guide before installation or use. This kit is intended for adult users experienced in electronics and modular synthesis. Assembly, including soldering, is required. Proper testing and installation are essential to ensure safe and functional operation. The completed module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
General Warnings
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
• Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the module.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it in your Eurorack system. When the unit has malfunctions due to incorrect assembly, the entire Eurorack system might be damaged. It's a good idea to test it in a separate case with only that single module.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Mount securely in a Eurorack case using the provided screws.
• Use only the included or manufacturer-recommended power cable.
• Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
Contact Information
For further assistance, contact the manufacturer (you'll find the info under each product in our shop) or our shop support team at:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19, 04229 Leipzig, Germany
support@exploding-shed.com
Manufacturer "Sebsongs Modular"
Hi! I’m Sebastian and I’m the person behind Sebsongs Modular. I’ve been building and designing modular kits, guitar pedals and other electronics for 20 years. In the fall of 2021 I made my eurorack module designs available as DIY kits. We now have four modules available, with more to follow in the future! If you have questions or just want to say hello, contact me via the contact page or follow Sebsongs Modular on Instagram!
