Products of Qingpu Electronics

QingPu is the original manufacturer of the Thonkiconn connectors and many other ones. We import them directly from the source.

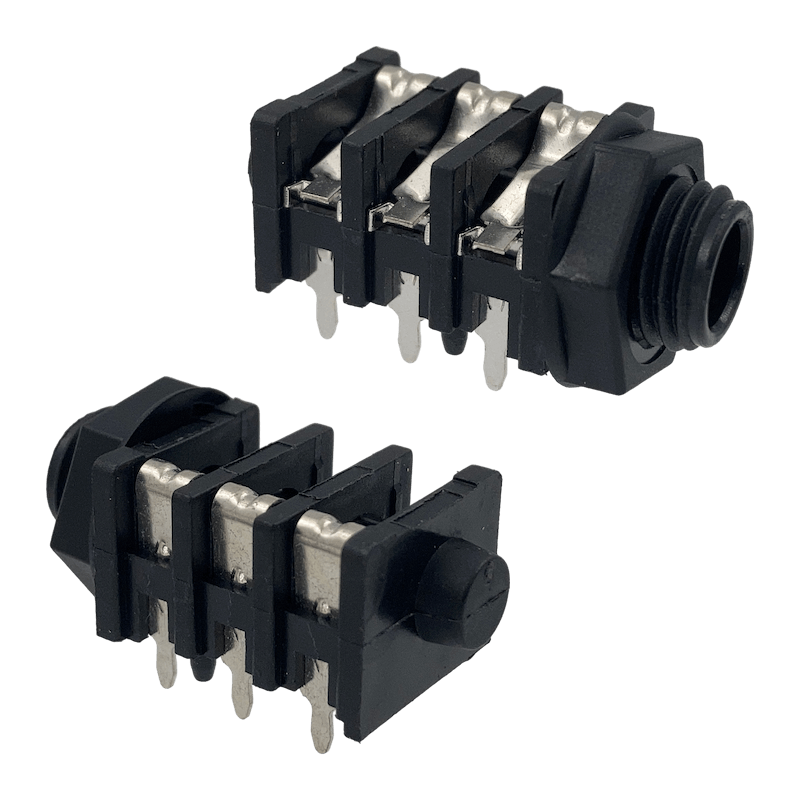

6,3 mm TRS Connector PJ6110

available

A very reliable 6,3 mm TRS (stereo) connector with switching function. Slimline version, very useful when space is limited, for example in DIY pedals or synths. Quite similar to the Neutrik slimline ones. PCB mount. Nuts are included.

€0.75*

Hex Nuts

available

Silver Hex Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags 20 and 50 pieces.Available variations:• Hex Nuts• Knurled Nuts• Smooth Nuts

€1.10*

Details

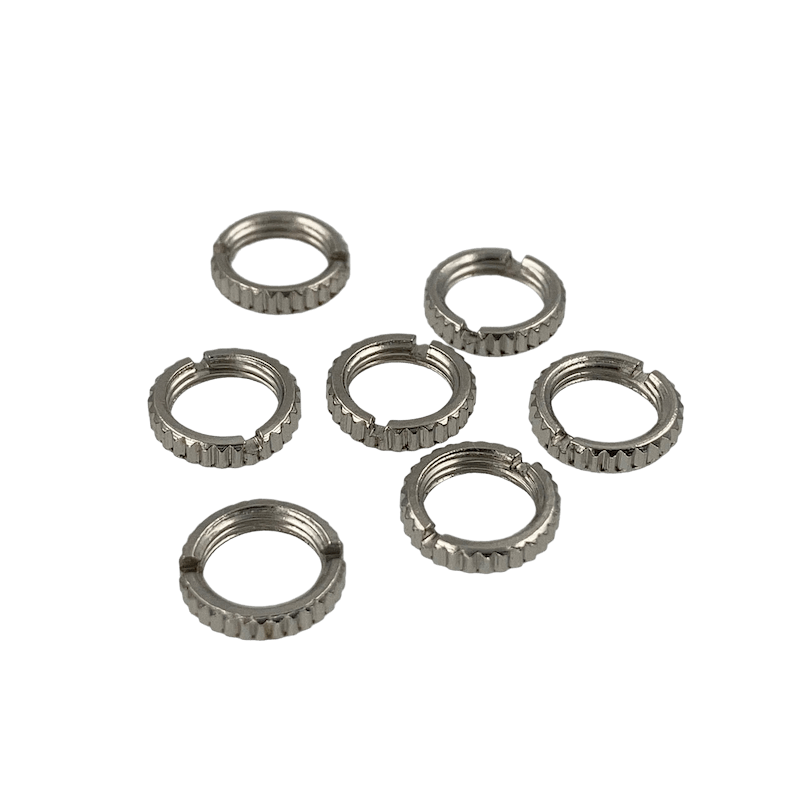

Knurled Nuts

available

Silver Knurled Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags of 20 and 50 pieces.Available variations:• Hex Nuts• Knurled Nuts• Smooth Nuts

€1.10*

Details

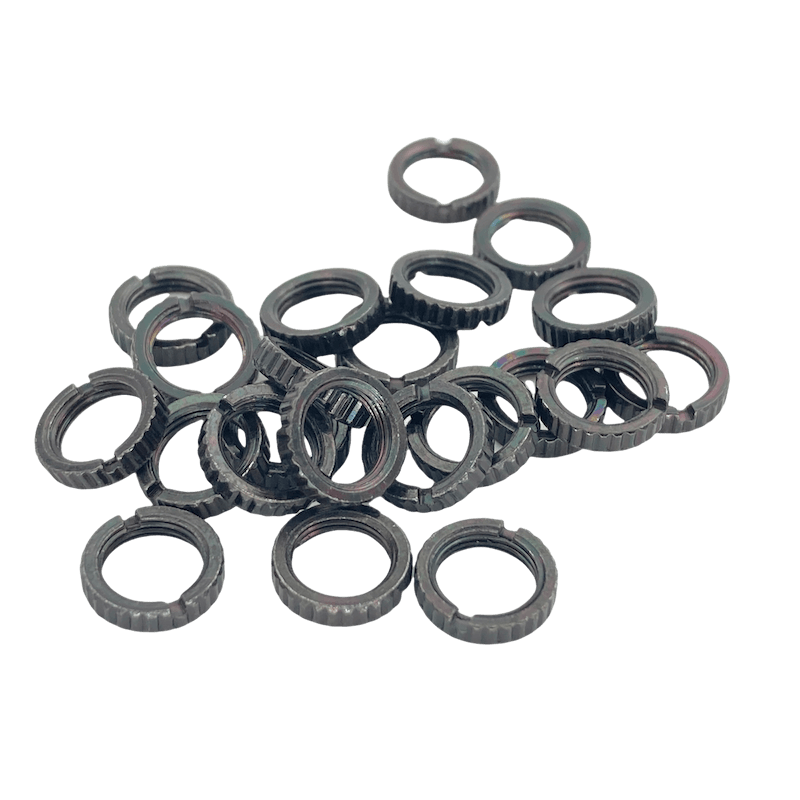

Knurled Nuts Black

available

Black Knurled Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags of 20 and 50 pieces.

€5.95*

Details

New

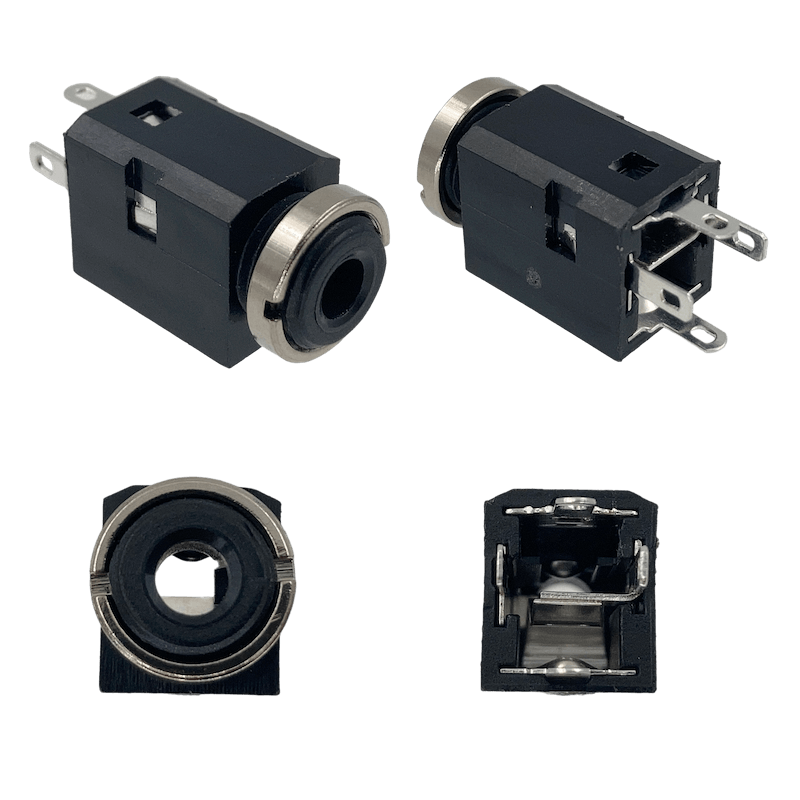

PJ3410 Stereo

available

PJ3410 is a 3,5mm TRS (stereo) connector with switching function for the tip contact and a replacement for Cliff FC681374V. It features solder lugs with hole. Dimensions: with 9mm, height 10,5mm, lenth (body) 13mm. Needs an 8mm hole in the front panel. You can use it as a mono jack (when your PCB configuration demands it) and simply pull out pin 2 (ring).Split nuts are included!

€0.65*

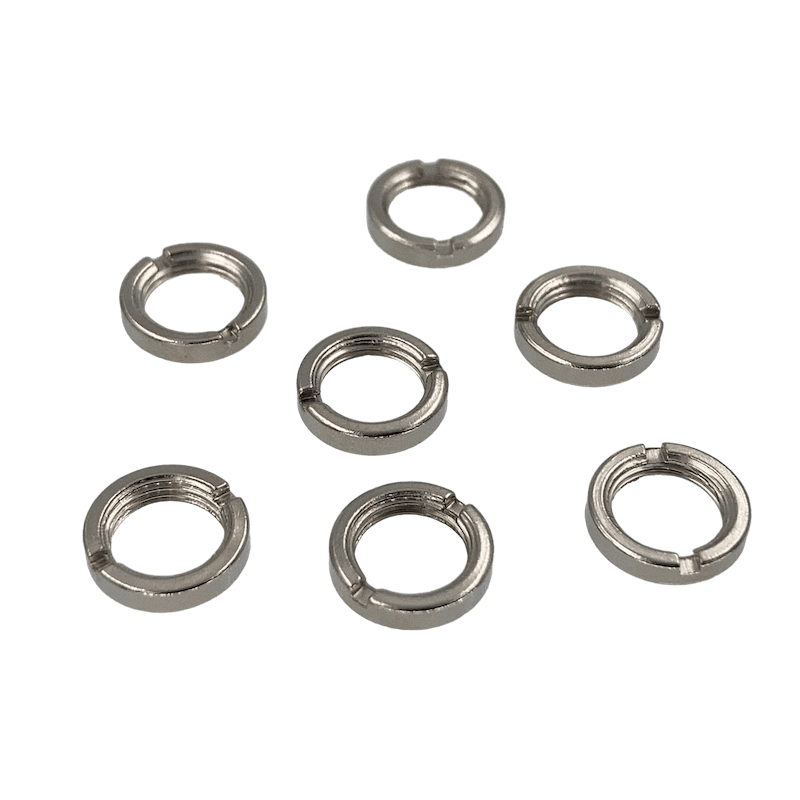

Smooth Nuts

available

Silver Smooth Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags 20 and 50 pieces.Available variations:• Hex Nuts• Knurled Nuts• Smooth Nuts

€1.10*

Details

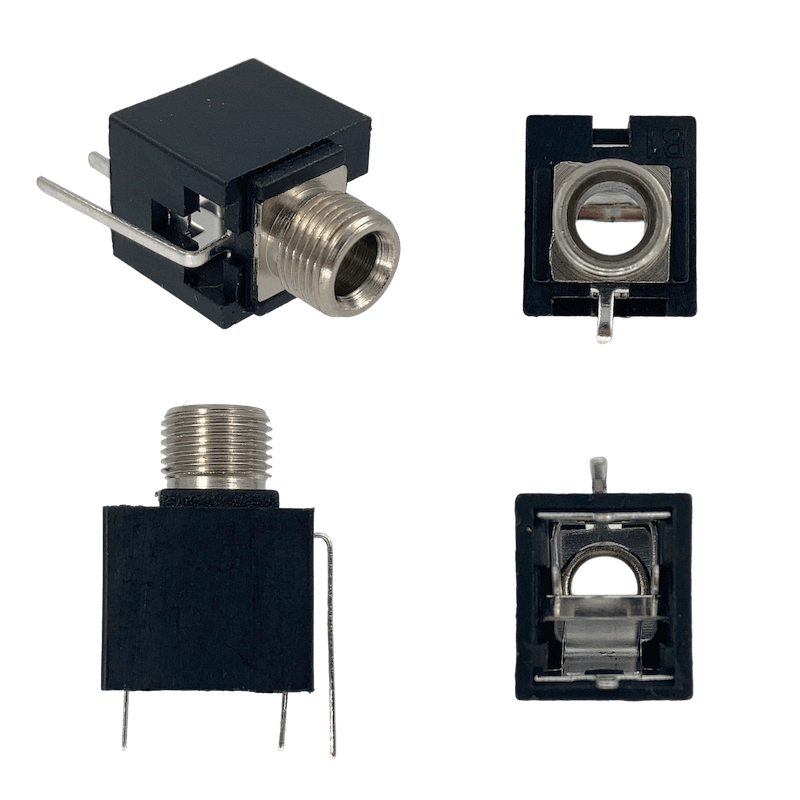

Thonkiconn Mono WQP518MA

available

Thonkiconn is the standard audio connector in Eurorack. 3,5 mm mono connector with switching function for PCB mounting. Dimensions: effective total body height 10mm, threading 4,5 mm, needs a 6 mm hole in the panel.Older versions were named PJ398SM and PJ301M-12. The new version is called WQP518MA, is more reliable and has a longer lifecycle. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!

€0.55*

Details

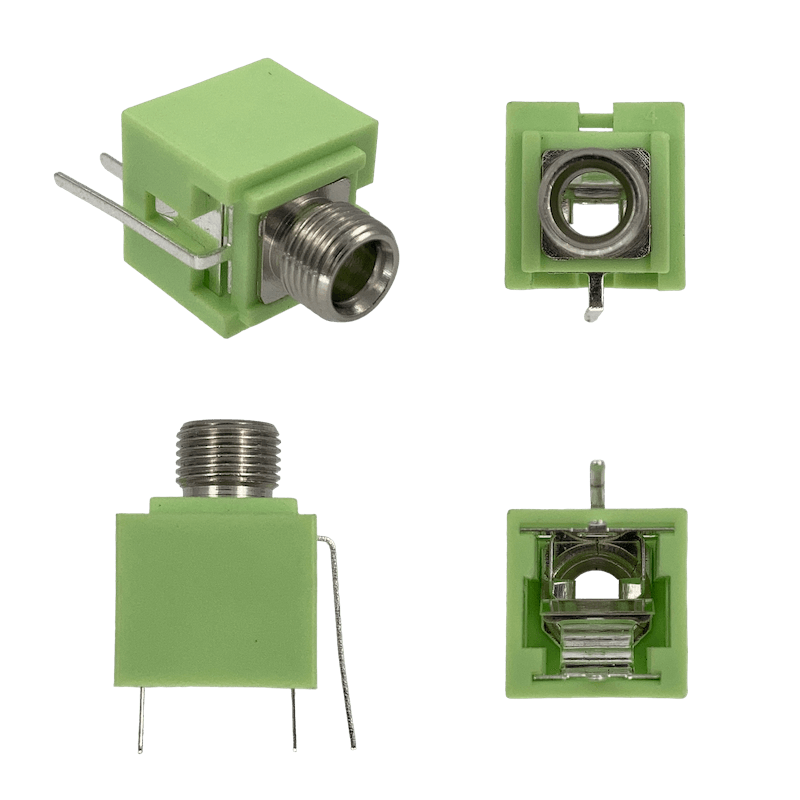

Thonkiconn Stereo WQP419GR

available

Stereo version of Thonkiconn, the standard audio connector in Eurorack. 3,5 mm stereo connector without switching function for PCB mounting. Dimensions: effective total body height 10 mm, threading 4,5 mm, needs a 6 mm hole in the panel. The stereo version is 1 mm wider than the mono version.The older version was named PJ366ST. The new version is called WQP419GR. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!

€0.57*

Details

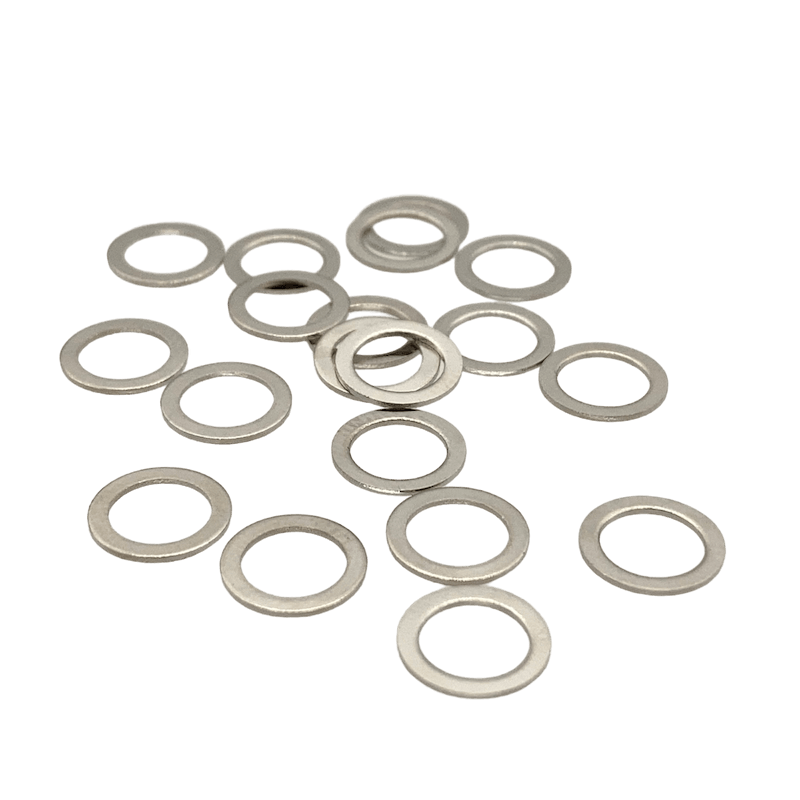

Washers

available

Silver washers. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags of 20 and 50 pieces. Measurements 6,1 mm * 8,5 mm * 0,5 mm

€1.10*

Details

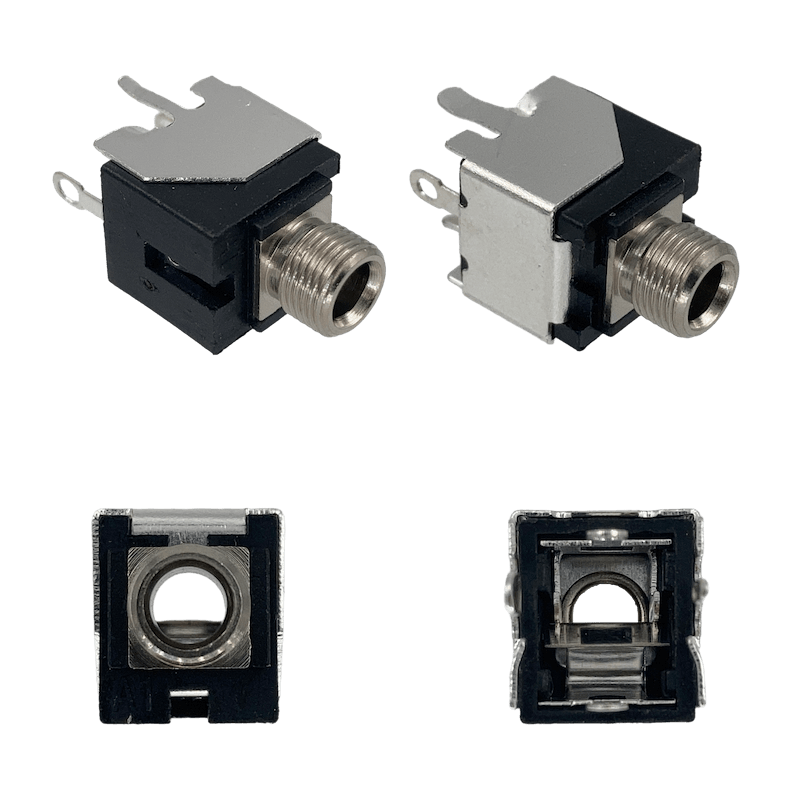

WQP518MA-BM

available

It is one of the standard audio connectors in Eurorack. It is also knowns as "Flight of Harmony" or "Erthenvar" connector. 3,5 mm mono connector with switching function and 2 GND pins for PCB mounting. Dimensions: effective total body height 11,5 mm, threading 4,5 mm, needs a 6mm hole in the panel.An older version was named PJ301BM, the new version is called WQP518MA-BM now, is more reliable and has a longer lifecycle. Like the newer Thonkiconns it has a rectangle tab instead of semi-round one (the part between body and threading, where the front panel will sit on) but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!

€0.57*
