Plinky
Product number:
100085
Product information "Plinky"
This is the DIY Desktop version of this unit, but it can also used as an Eurorack module.

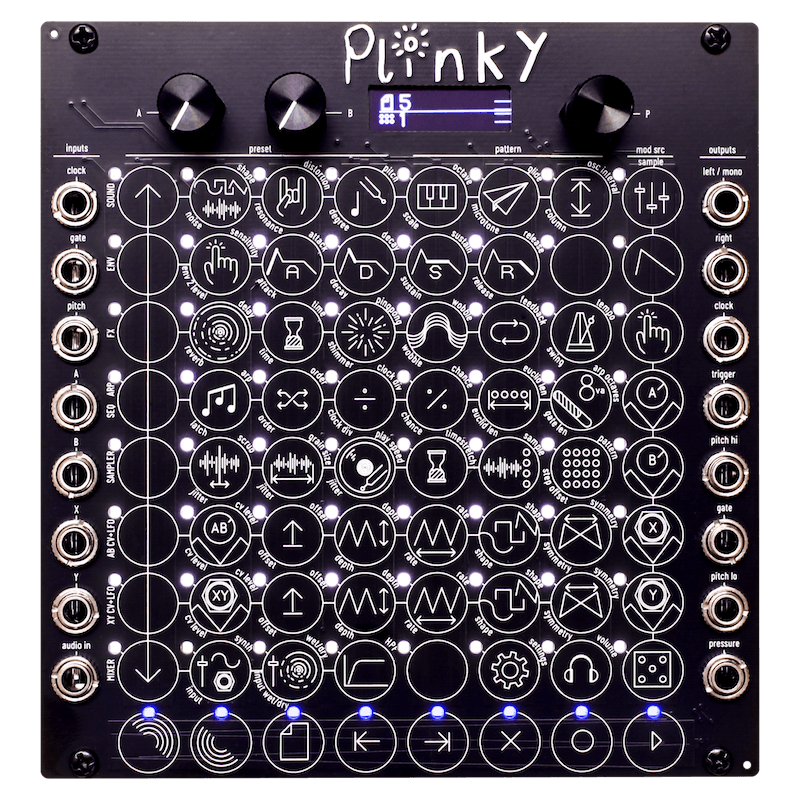

Plinky is an 8 voice expressive polyphonic touch synthesizer that specializes in fragile, melancholic sounds, designed by mmalex.
Think of it as an eight stringed instrument, with eight vertical monophonic strips. You can play it straight away on its 64 main pads. Each of the eight strings has 4 oscillators or sampler grains, detuned by the touch of your fingers, white noise, two ADSR envelopes and a resonant 2-pole low-pass gate. Plinky also has a global delay, reverb, high pass filter and saturation along with a simple mixer, arpeggiator, sequencer and sampler. It supports four external CV modulation sources, each with their own LFO.
Plinky was released in 2021, then hit hard by the chip crisis. In coordination with Plinky’s creator mmalex, Making Sound Machines are bringing back Plinky both as assembled unit and as a beginner-friendly DIY Kit.
Plinky v3 integrates TRS MIDI input and output directly on-board, so you sequence polyphonic chords externally and play a melodic line on top on its touch surface.
The revision also upgrades to USB-C, optimizes the build experience, and introduces improvements to the audio path.
Works as standalone unit with USB-C power or Eurorack power cable.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Plinky is an 8 voice expressive polyphonic touch synthesizer that specializes in fragile, melancholic sounds, designed by mmalex.
Think of it as an eight stringed instrument, with eight vertical monophonic strips. You can play it straight away on its 64 main pads. Each of the eight strings has 4 oscillators or sampler grains, detuned by the touch of your fingers, white noise, two ADSR envelopes and a resonant 2-pole low-pass gate. Plinky also has a global delay, reverb, high pass filter and saturation along with a simple mixer, arpeggiator, sequencer and sampler. It supports four external CV modulation sources, each with their own LFO.
Plinky was released in 2021, then hit hard by the chip crisis. In coordination with Plinky’s creator mmalex, Making Sound Machines are bringing back Plinky both as assembled unit and as a beginner-friendly DIY Kit.
Plinky v3 integrates TRS MIDI input and output directly on-board, so you sequence polyphonic chords externally and play a melodic line on top on its touch surface.
The revision also upgrades to USB-C, optimizes the build experience, and introduces improvements to the audio path.
Works as standalone unit with USB-C power or Eurorack power cable.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +5 V [mA]: | 150 |
|---|---|
| Current draw +12 V [mA]: | 10 |
| Current draw -12 V [mA]: | 10 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 12 |
| Width [HP]: | 24 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
