LeafAudio - Knapplåda
Product information "LeafAudio - Knapplåda"

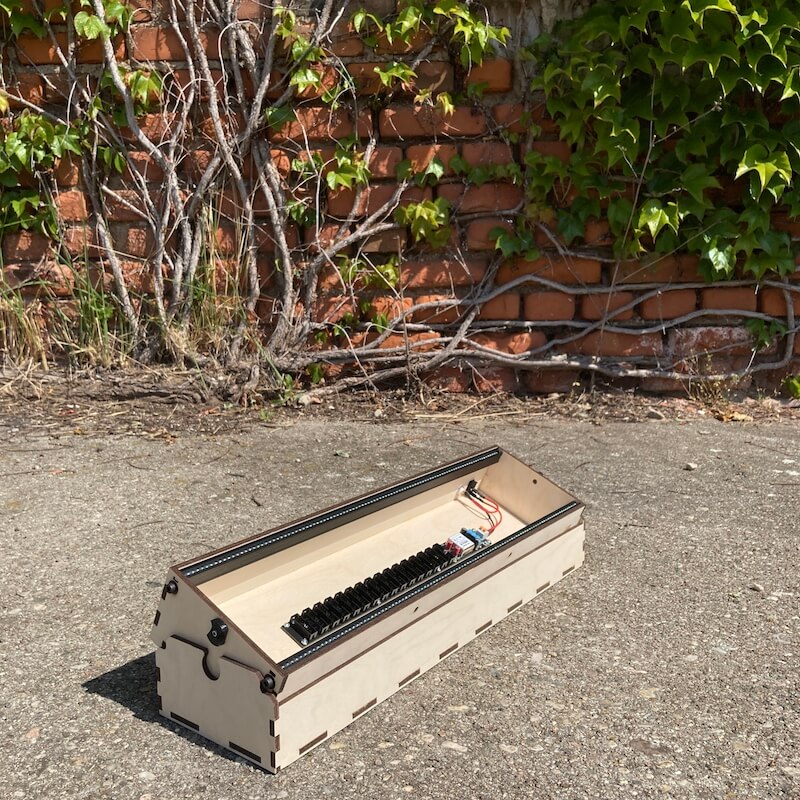

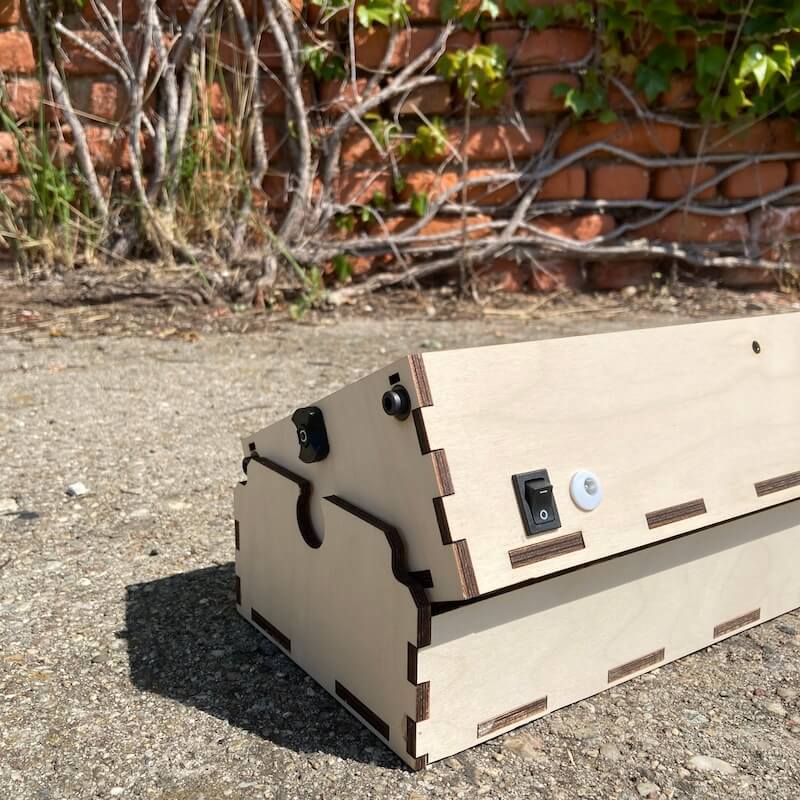

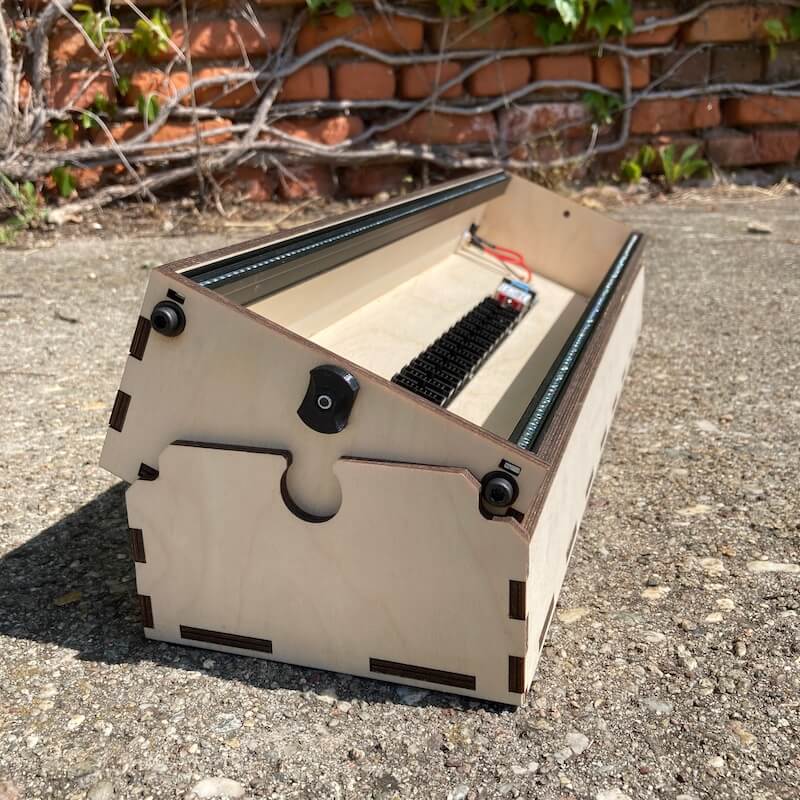

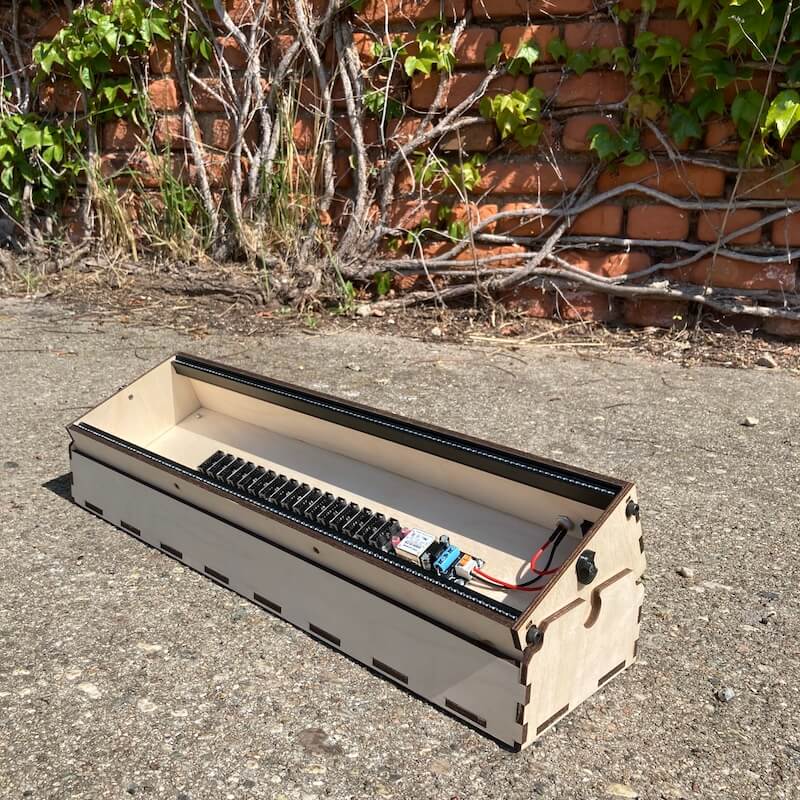

Knapplåda is a DIY case with 104 HP space for your modules, a busboard with 16 bus-connectors and ~1 Ampere on +12V, -12V and +5V. The cover also acts as a stand, so you have your modules placed in a nice angle in front of you.
It is your perfect entry into the modular world without spending much cash on power supply and case. Who did some research on that topics knows that it quickly gets complicated and expensive. Our answer: just get an all-in-one solution and focus on music instead of tech stuff! Here is Knapplåda!
The DIY kit includes all materials you need to build the case. On top of that you will need some tools. You need solder- and woodworking skills. We think it will take around one or two evenings to build it for most of you. Please make sure to check the building instructions before you buy the kit. We put a lot of effort in this project and we hope you like it!
Features:
• 104 HP
• Including busboard & power supply

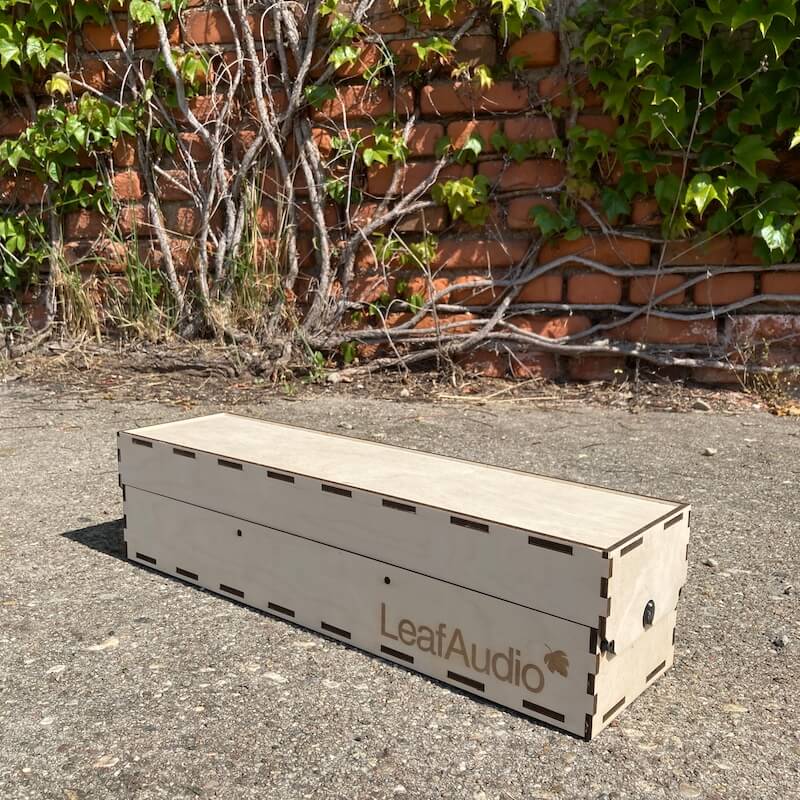

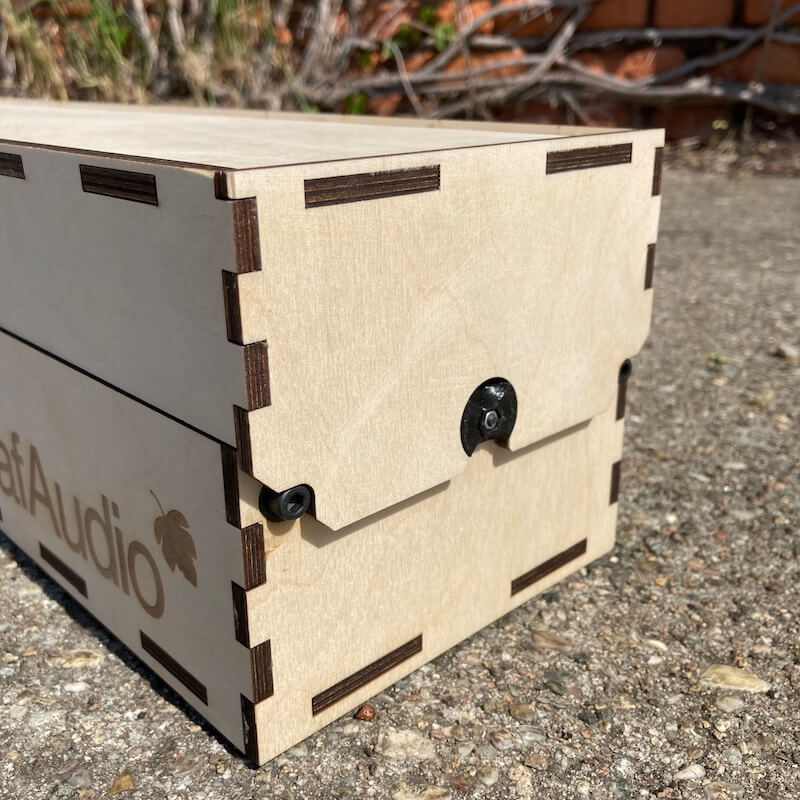

• Cover/stand included

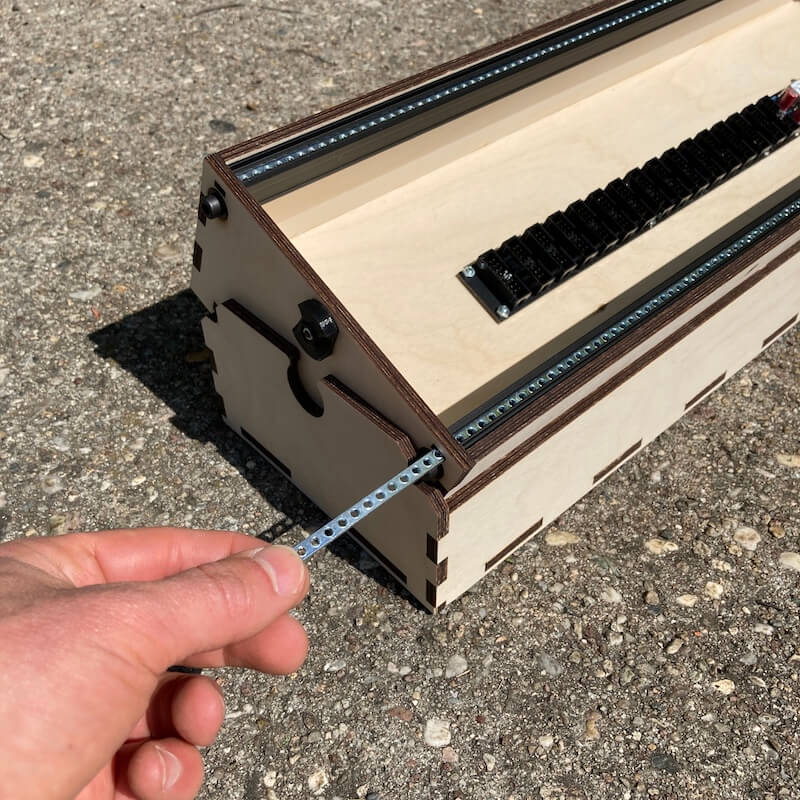

• Slide nuts or threaded strips (M3) can be inserted from the side
• ~1 Ampere each on +12V/ -12V/ +5V
• Find more specs in the manual
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
It is your perfect entry into the modular world without spending much cash on power supply and case. Who did some research on that topics knows that it quickly gets complicated and expensive. Our answer: just get an all-in-one solution and focus on music instead of tech stuff! Here is Knapplåda!
The DIY kit includes all materials you need to build the case. On top of that you will need some tools. You need solder- and woodworking skills. We think it will take around one or two evenings to build it for most of you. Please make sure to check the building instructions before you buy the kit. We put a lot of effort in this project and we hope you like it!
Features:
• 104 HP
• Including busboard & power supply
• Cover/stand included
• Slide nuts or threaded strips (M3) can be inserted from the side
• ~1 Ampere each on +12V/ -12V/ +5V
• Find more specs in the manual
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current out +5 V [mA]: | 1000 |
|---|---|
| Current out +12 V [mA]: | 1250 |
| Current out -12 V [mA]: | 1250 |
| DIY Level: | Medium/Advanced |
| Depth [mm]: | 48 |
| Material / Color: | Wood |
| Max power input [W]: | 35 |
| Number of Power-Pinheader: | 16 |
| Power Input Type (pri.): | 15 Vdc / Barrel (5,5/2,1) |
| Width [HP]: | 104 |
| Format: | 3U |
Manufacturer "LeafAudio"
LeafAudio is the brand of Manuel Richter. He is a trained drummer & audio engineer, studio- and live-musician, was interested in electronic and experimental sounds since his childhood. He made releases and lots of live appearances as Xabec. He toured with Haujobb and others, was producer & songwriter for Anne Clark. LeafAudio started as Manuel's studio in 2008, he made lots of mixings and masterings but quickly ended up doing one of the most well known DIY workshop series in Germany by the mid 2010s. Meanwhile LeafAudio is most well known for their Microphonic Soundboxes and other sound design instruments which became super popular worldwide. Most of the production is still made by hand in Leipzig, Germany.
