LeafAudio - Geophone L
Product number:
100658
Product information "LeafAudio - Geophone L"

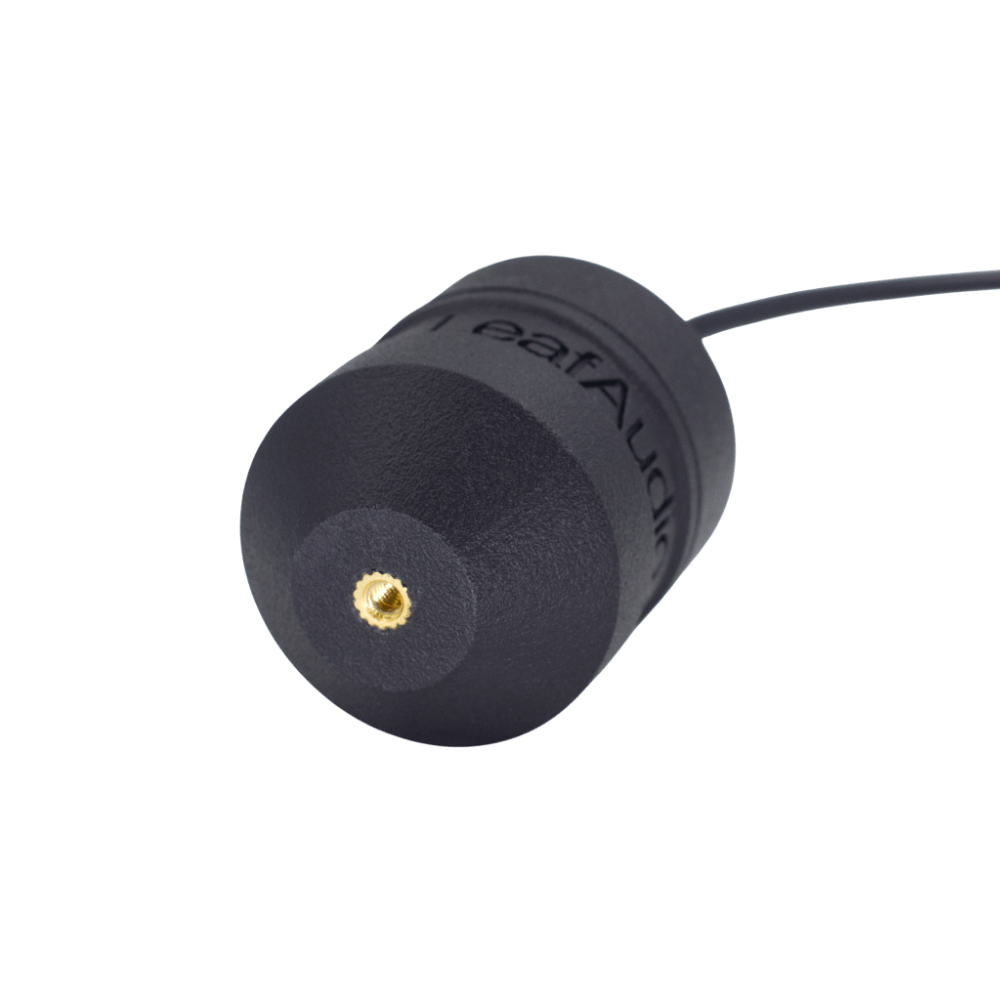

Geophones are omnidirectional seismic sensors to capture low-frequent vibrations. Besides detecting seismic activity, Geophones are used to capture extreme low-end for sound design, music production, field recording, foley and game sound.

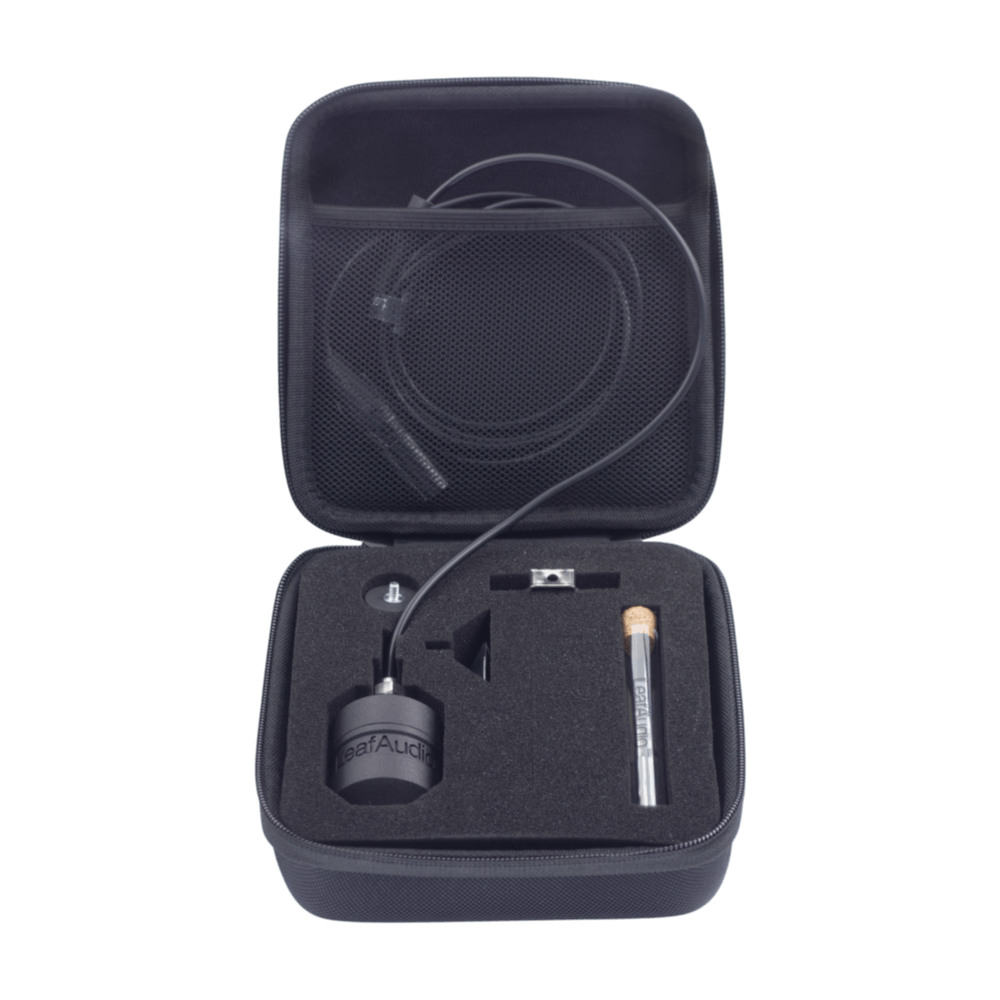

We offer two versions to meet your budget and your needs: Geophone S and Geophone L. Both come in a protective hard case, equipped with a magnet, steel spike, clamp and suction cup.
We offer an add-on pack for both versions - it includes a variable clamp that allows the angle to be continuously adjusted to optimize their sound performance, a special woodscrew and an adapter from M4 to 1/4" universal camera mount.
Geophone L has an extended frequency range and sensitivity over Geophone S.
* Due to the nature of Geophones it might be possible that it picks up electromagnetic fields and interferences in some areas. Please note that the Geophone itself, and also the included magnets might have unwanted effects on credit cards, hard disks, ICDs and other devices that work on the basis of electromagnetism!
Expoding Shed is only shipping to EU, UK, CH & NOR! For other countries, please check one of LeafAudio's retailers in August:
Schneidersladen (EU)
Musikhaus Korn (EU)
Sound Of You (EU)
Thomann (EU)
KMR Audio (UK)
House Of Sound (CH)
Control Voltage (USA)
Perfect Circuit (USA)
Noisebug (USA)
Analogue Haven (USA)
Digilog (Taiwan)
Features:
• Height / width: 76 x 42 mm
• Weight: 250 g (Geophone L with cable & XLR)
• Weight: 472 g (incl. case and included add-ons)

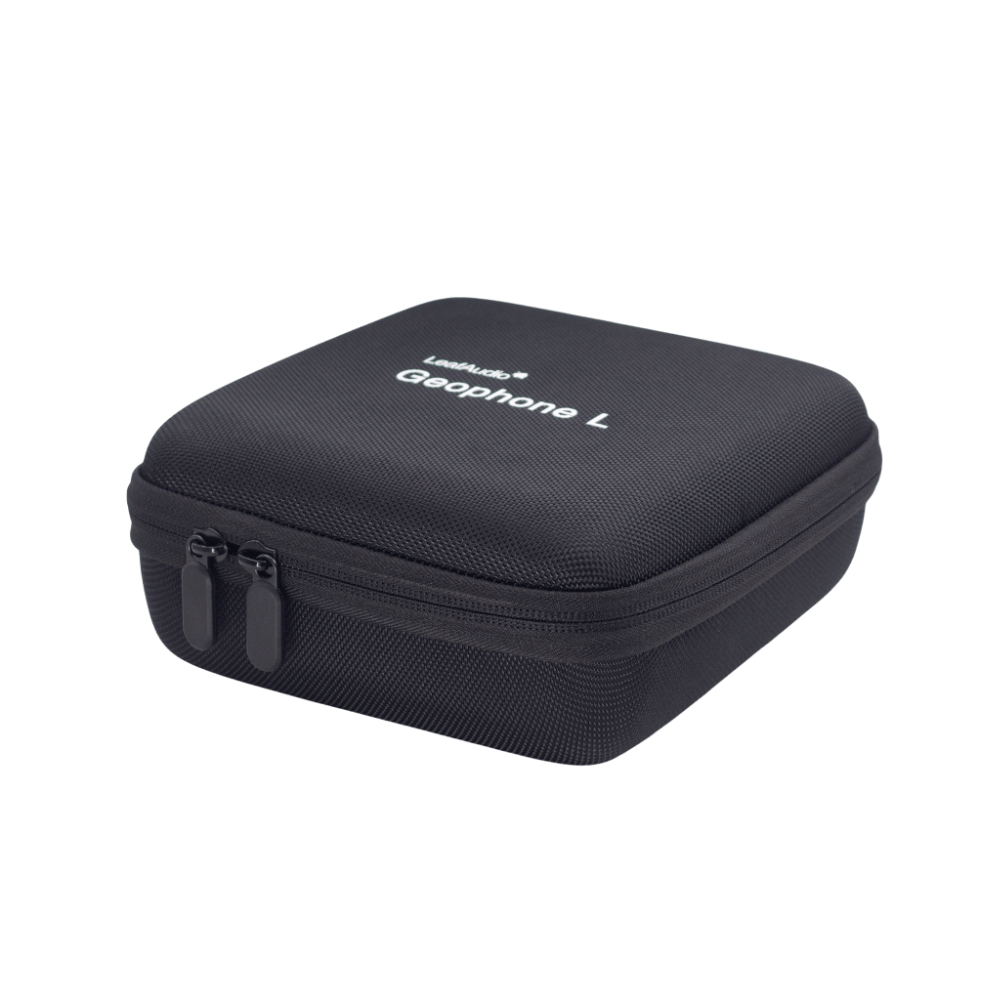

• Case
• 2,0 m cable with balanced XLR
• Frequency range: 15 Hz - 1000+ Hz
• Impedance: 5222 Ohm
• Distortion: 0,05 %
• Sensitivity: 74,8 V/m/s
We offer two versions to meet your budget and your needs: Geophone S and Geophone L. Both come in a protective hard case, equipped with a magnet, steel spike, clamp and suction cup.
We offer an add-on pack for both versions - it includes a variable clamp that allows the angle to be continuously adjusted to optimize their sound performance, a special woodscrew and an adapter from M4 to 1/4" universal camera mount.
Geophone L has an extended frequency range and sensitivity over Geophone S.
* Due to the nature of Geophones it might be possible that it picks up electromagnetic fields and interferences in some areas. Please note that the Geophone itself, and also the included magnets might have unwanted effects on credit cards, hard disks, ICDs and other devices that work on the basis of electromagnetism!
Expoding Shed is only shipping to EU, UK, CH & NOR! For other countries, please check one of LeafAudio's retailers in August:
Schneidersladen (EU)
Musikhaus Korn (EU)
Sound Of You (EU)
Thomann (EU)
KMR Audio (UK)
House Of Sound (CH)
Control Voltage (USA)
Perfect Circuit (USA)
Noisebug (USA)
Analogue Haven (USA)
Digilog (Taiwan)
Features:
• Height / width: 76 x 42 mm
• Weight: 250 g (Geophone L with cable & XLR)
• Weight: 472 g (incl. case and included add-ons)
• Case
• 2,0 m cable with balanced XLR
• Frequency range: 15 Hz - 1000+ Hz
• Impedance: 5222 Ohm
• Distortion: 0,05 %
• Sensitivity: 74,8 V/m/s
| DIY Level: | NOT DIY |
|---|---|
| Depth [mm]: | 42 |
| Height [mm]: | 76 |
| Material / Color: | Black PA 12 |
| Width [mm]: | 42 |
