LeafAudio - ADPT-3,5-JACK-XLR-MALE-ASYM
Product number:
100415-150
Product information "LeafAudio - ADPT-3,5-JACK-XLR-MALE-ASYM"

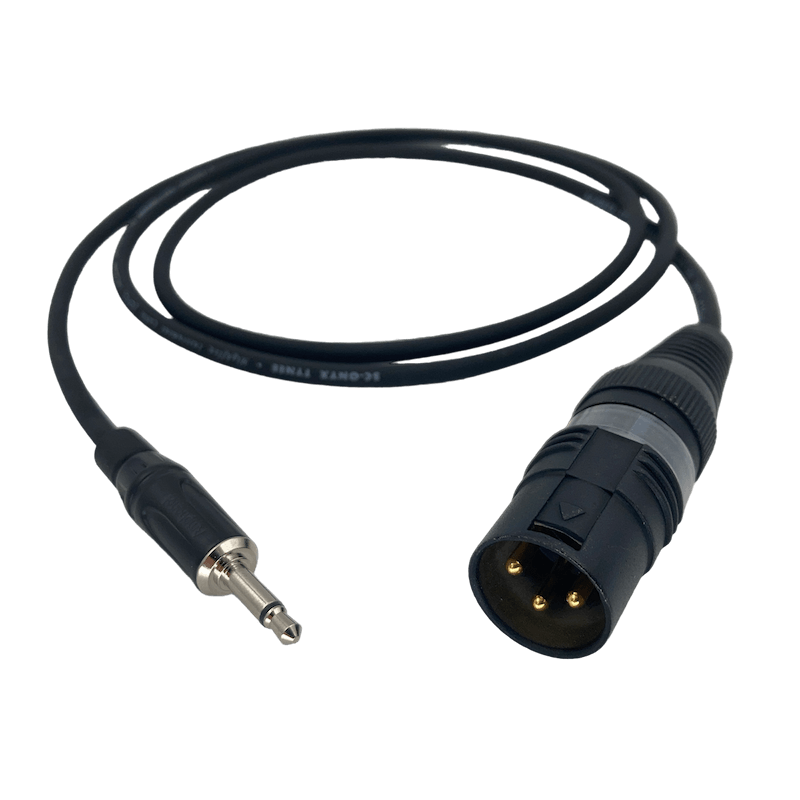

Use this adapter for connecting LeafAudio's Field Amp to symmetrical XLR inputs. As the Field Amp does not feature a symmetrical input or outputs, this adaptor is actually asymmetrical (XLR pins 1 and 3 bridged).
Make sure to read the notes about inputs and outputs in the Field Amp manual, you'll find it on the LeafAudio website. www.leaf-audio.com
Features:
• Asymmetrical 3,5mm (1/8") mono jack to XLR male
• Amphenol 3,5mm (1/8") mono jack
• HiCon XLR connector male
• Sommer Cable Onyx Tynee cable material
• Length: 1,5m (~5 feet)
Make sure to read the notes about inputs and outputs in the Field Amp manual, you'll find it on the LeafAudio website. www.leaf-audio.com
Features:
• Asymmetrical 3,5mm (1/8") mono jack to XLR male
• Amphenol 3,5mm (1/8") mono jack
• HiCon XLR connector male
• Sommer Cable Onyx Tynee cable material
• Length: 1,5m (~5 feet)
| Connector 1: | Jack 3,5 mm TS |
|---|---|
| Connector 2: | XLR (3) male |
| DIY Level: | NOT DIY |
| Length [cm]: | 150 |
| Material / Color: | Black |
