Product information "Jolin - Nexum"

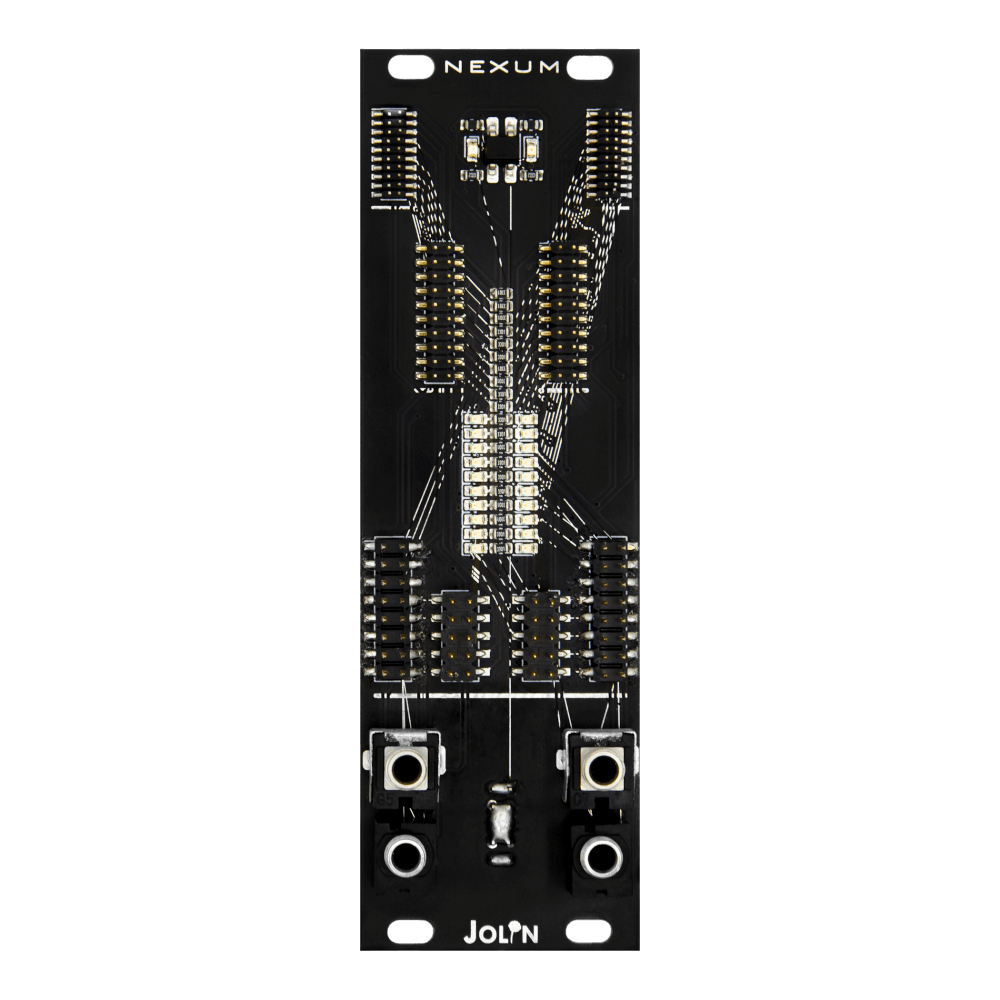

NEXUM is a smart eurorack multi-cable tester.
Plug a cable in one of the sockets and the other end specularly on the opposite side. Check if the blue LEDs light up steady in a number equal to the cores of the cable you are testing. Wiggle the wire back and forth just to be sure that all the individual cores are firmly connected.
Due to its configuration, the connection is considered true only if there is no continuity between the adjacent wires or discontinuity in that specific core. This smart feature will avoid false positives.
Features:
• Universal eurorack power cable tester - 10 and 16 pins 2.54mm.
• Mono and stereo patch cable compatibility - 3.5mm TS and TRS.
• Additional 20 pins 1.27mm / 2.00mm sockets.
• Power line indicators.
• Single board design - extremely skiff friendly.
• “Whatever” power connector a.k.a. don’t mind the polarity.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Plug a cable in one of the sockets and the other end specularly on the opposite side. Check if the blue LEDs light up steady in a number equal to the cores of the cable you are testing. Wiggle the wire back and forth just to be sure that all the individual cores are firmly connected.
Due to its configuration, the connection is considered true only if there is no continuity between the adjacent wires or discontinuity in that specific core. This smart feature will avoid false positives.
Features:
• Universal eurorack power cable tester - 10 and 16 pins 2.54mm.
• Mono and stereo patch cable compatibility - 3.5mm TS and TRS.
• Additional 20 pins 1.27mm / 2.00mm sockets.
• Power line indicators.
• Single board design - extremely skiff friendly.
• “Whatever” power connector a.k.a. don’t mind the polarity.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 50 |
|---|---|
| Current draw -12 V [mA]: | 5 |
| DIY Level: | Easy |
| Depth [mm]: | 18 |
| Width [HP]: | 8 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
Manufacturer "Jolin"
Jolin is an audio electronics lab specialized in eurorack modules, sound sculptures and DIY workshops.
The project was founded in Milan, Italy in the summer of 2018 by Federico Intrisano, hardware designer, and Pedro Ferragut, software engineer. The aim is promoting electronic music made with analog and digital synthesizers.
Although our main activity is research, we also build hand-crafted instruments and DIY kits with educational aim.
