Herbs and Stones - Legs
Product number:
100549
Product information "Herbs and Stones - Legs"

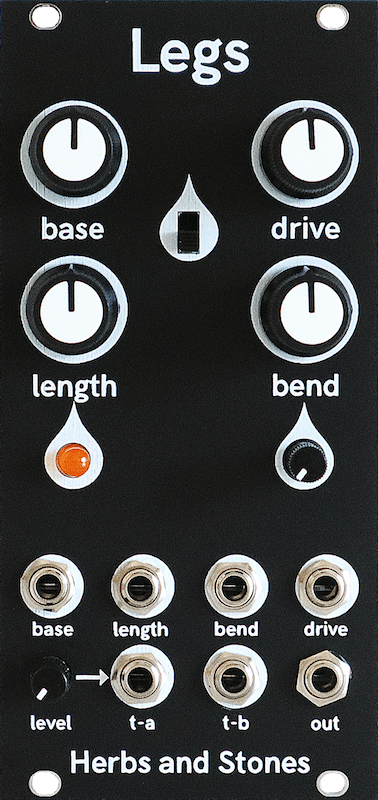

Legs is an analog kick and percussion synthesizer module in eurorack format.
It is based around a triangle core voltage controlled oscillator and a two levels voltage controlled saturation stage.
Each parameter has its own dedicated CV input, when a control signal is patched into any of the inputs its corresponding knob will act as a CV attenuator.
Two independent gate/trigger input with level control can be used to create accents, pattern changes and generally work on track dynamic.
Features:
• Triangle core VCO
• Two-stage voltage controlled saturation
• Two separate gate/trigger inputs
• CV control over every parameter
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
It is based around a triangle core voltage controlled oscillator and a two levels voltage controlled saturation stage.
Each parameter has its own dedicated CV input, when a control signal is patched into any of the inputs its corresponding knob will act as a CV attenuator.
Two independent gate/trigger input with level control can be used to create accents, pattern changes and generally work on track dynamic.
Features:
• Triangle core VCO
• Two-stage voltage controlled saturation
• Two separate gate/trigger inputs
• CV control over every parameter
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 12 |
|---|---|
| Current draw -12 V [mA]: | 8 |
| DIY Level: | Easy |
| Depth [mm]: | 22 |
| Width [HP]: | 12 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
