Product information "Frequency Central - Thermo Nuclear"

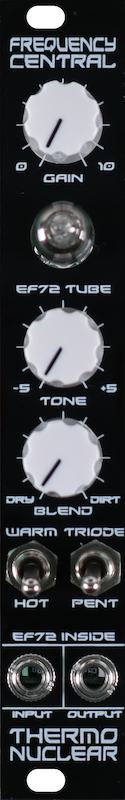

ThermoNuclear is a sub-miniature vacuum tube based overdrive. The first stage is a MOSFET with switchable mu-amp. The second stage is a self biased sub-miniature pentode with switchable triode/pentode. Then there’s a tonestack based on the EH Big Muff. Finally, there’s a blend control and another MOSFET stage for some gain recovery after the tonestack. ThermoNuclear will crush and destroy your tone with a pleasing warm tubey goodness.
Although the filament of the tube will glow, it’s not a lightbulb, and the level of glow may vary between different tubes.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Although the filament of the tube will glow, it’s not a lightbulb, and the level of glow may vary between different tubes.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 175 |
|---|---|
| Current draw -12 V [mA]: | 4 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 39 |
| Width [HP]: | 4 |
| Format: | 3 U |
| Panel / Color: | Black Alu |
