Alfa Rpar - AS662D - Dual Operational Transconductance Amplifiers (OTA)
Product number:
103140SO16
Product information "Alfa Rpar - AS662D - Dual Operational Transconductance Amplifiers (OTA)"

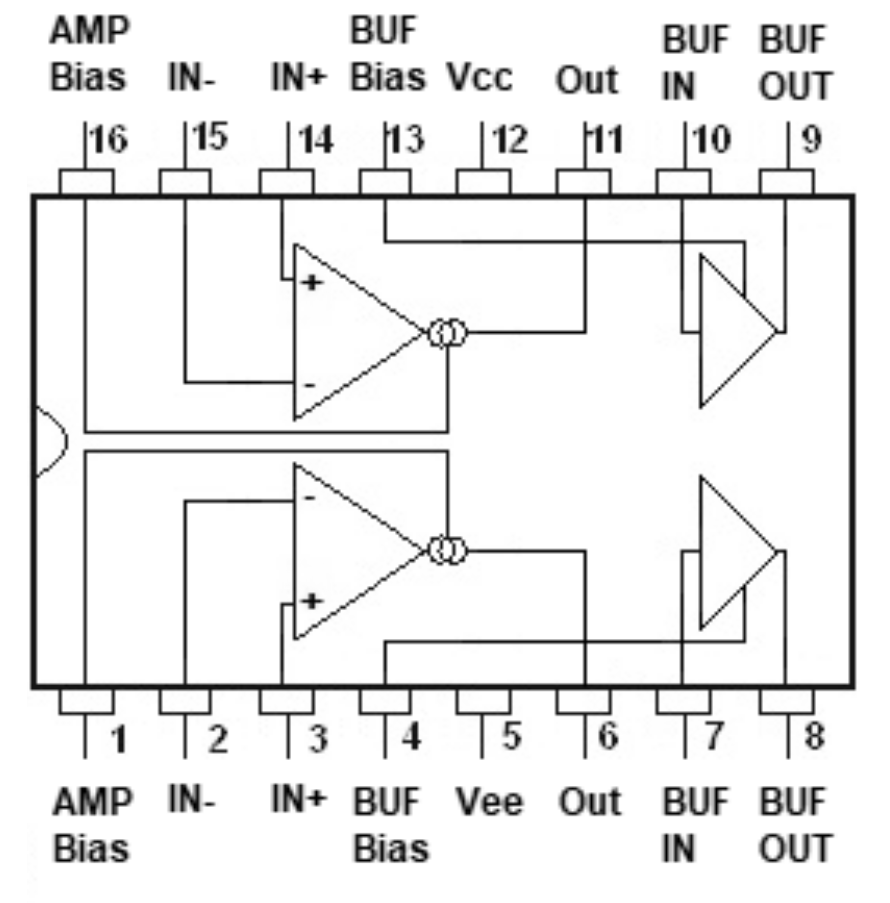

The AS662D consists of two current-controlled transconductance amplifiers OTA, each with differential inputs and a push-pull output. Both amplifiers share common supplies, but operate independently. Two buffers allows external control and gives flexibility in application.
Features:
• gm adjustable over 6 decades
• excellent gm linearity
• excellent matching between amplifiers
• controlled buffer
• high output SNR
• LM13700 functional replacement
Applications:
• current-controlled amplifiers
• stereo audio amplifiers
• current-controlled impedances
• current-controlled filters
• current-controlled oscillators
• multiplexers
• VCA
• S&H circuits
Features:
• gm adjustable over 6 decades
• excellent gm linearity
• excellent matching between amplifiers
• controlled buffer
• high output SNR
• LM13700 functional replacement
Applications:
• current-controlled amplifiers
• stereo audio amplifiers
• current-controlled impedances
• current-controlled filters
• current-controlled oscillators
• multiplexers
• VCA
• S&H circuits
| Basic Function: | OTA (2x) |
|---|---|
| IC Package: | SOIC-16 (SMT) |
| Pin Count: | 16 |
| Pin Pitch [mm]: | 1,27 |
| Technology: | SMT |
