Alfa Rpar - AS395H - Matched PNP Transistor Pair
Product information "Alfa Rpar - AS395H - Matched PNP Transistor Pair"
The AS395 dual monolithic PNP transistor offers excellent parametric matching and high frequency performance. Low noise characteristics (1 nV/√Hz typ @ 1 kHz), high bandwidth (190 MHz typical), and low offset voltage (100 μV max), makes the AS395 an excellent choice for demanding preamplifier applications.
Tight current gain matching (3% max mismatch) and high current gain (100 min), over a wide range of collector current, makes the AS395 an excellent choice for current mirrors. A low value of bulk resistance makes the AS395 an ideal component for applications requiring accurate logarithmic conformance.

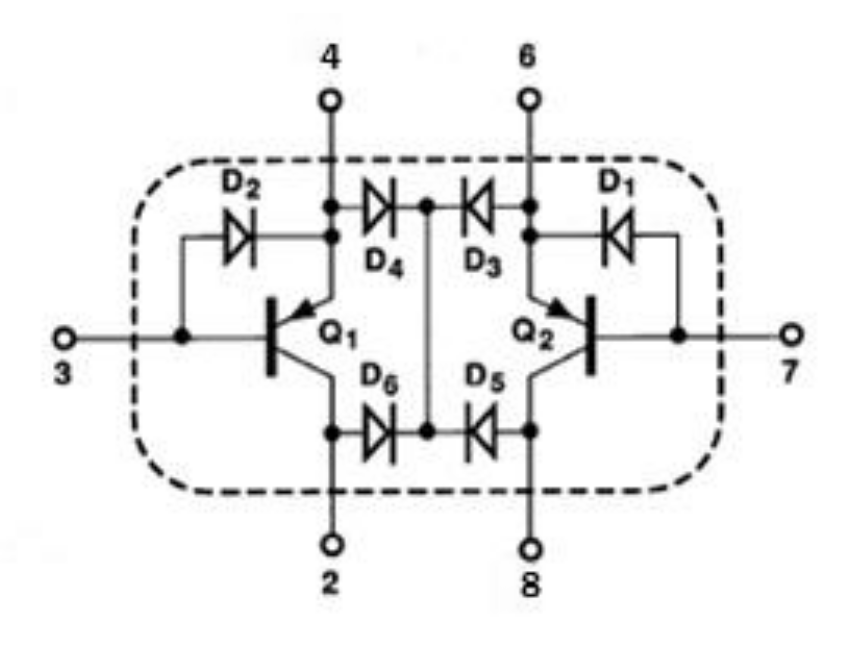

To insure the long-term stability of the matching parameters, internal protection diodes across the base-emitter junction clamp any reverse base-emitter junction potential. This prevents a base-emitter breakdown condition which can result in degradation of gain and matching performance due to excessive breakdown current.
The AS395H are available in the 8-pin metal can TO5-8.
Features:
• dual matched PNP transistor
• low offset voltage: 100 μV max
• low noise: 1 nV/√Hz @ 1 kHz typ
• high gain: 100 min
• high gain bandwidth: 190 MHz typ
• tight gain matching: 3% max
• excellent logarithmic conformance
Tight current gain matching (3% max mismatch) and high current gain (100 min), over a wide range of collector current, makes the AS395 an excellent choice for current mirrors. A low value of bulk resistance makes the AS395 an ideal component for applications requiring accurate logarithmic conformance.
To insure the long-term stability of the matching parameters, internal protection diodes across the base-emitter junction clamp any reverse base-emitter junction potential. This prevents a base-emitter breakdown condition which can result in degradation of gain and matching performance due to excessive breakdown current.
The AS395H are available in the 8-pin metal can TO5-8.
Features:
• dual matched PNP transistor
• low offset voltage: 100 μV max
• low noise: 1 nV/√Hz @ 1 kHz typ
• high gain: 100 min
• high gain bandwidth: 190 MHz typ
• tight gain matching: 3% max
• excellent logarithmic conformance
| Basic Function: | Matched 2xPNP |
|---|---|
| IC Package: | TO5-8 (THT) |
| Pin Count: | 8 |
| Pin Pitch [mm]: | 1,94 |
| Technology: | THT |
