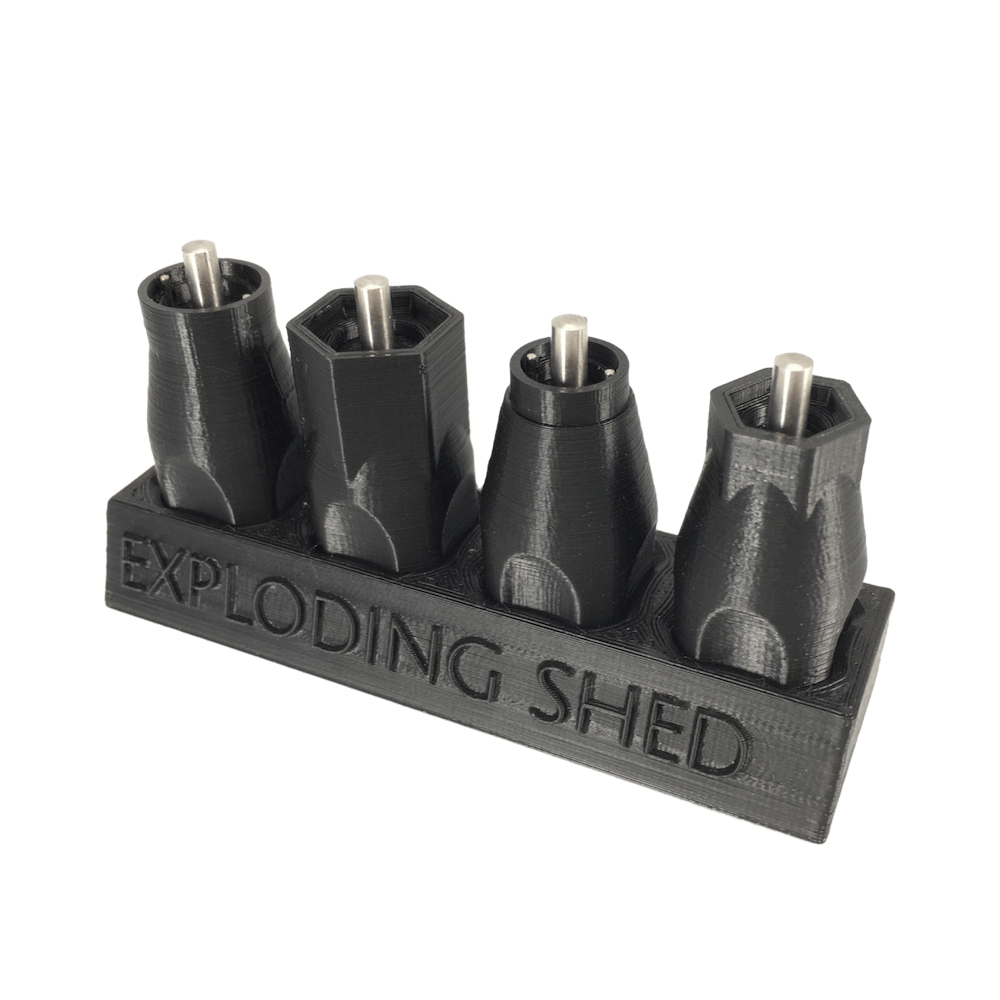

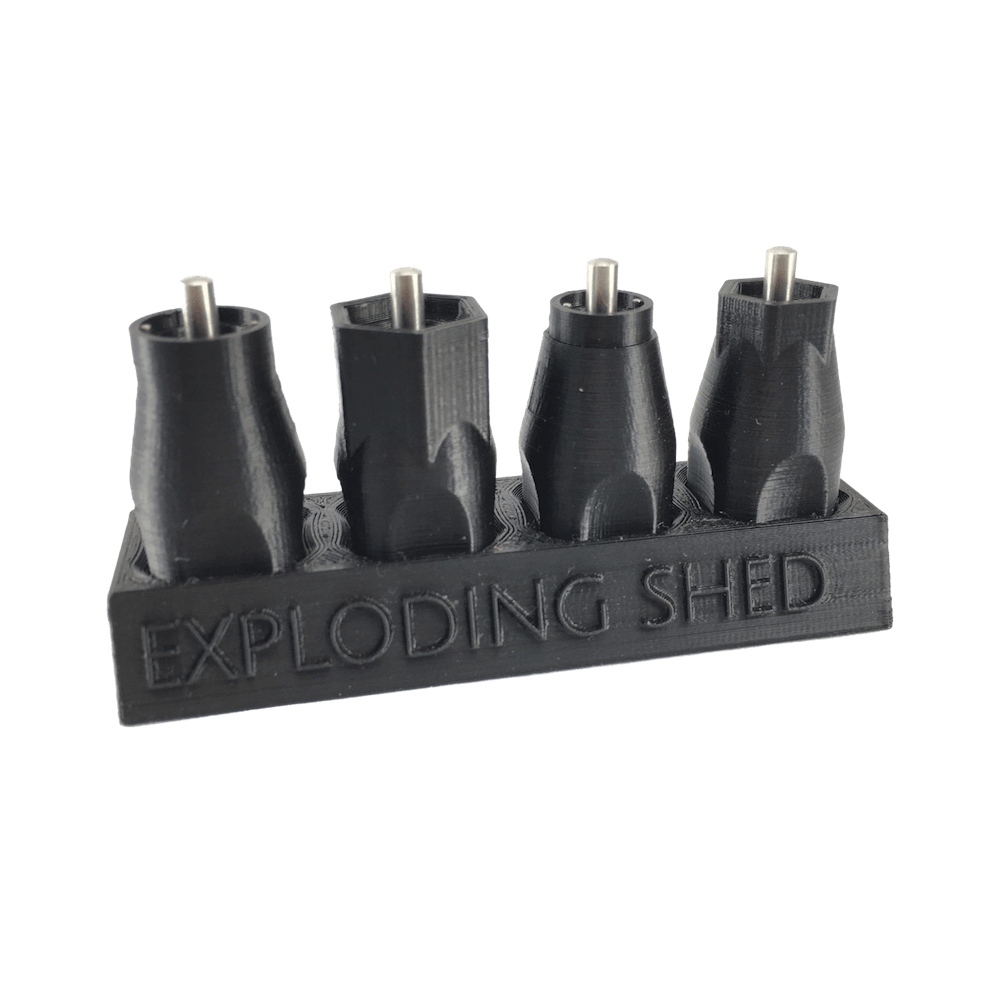

4x Nut Tool Set
Product number:
100019
Product information "4x Nut Tool Set"
Forget scratched panels! This set includes tools for the 4 most common nuts in the world of Eurorack!
1) Thonkiconn / Knobbicon 8mm knurled nut
2) Thonkiconn / Knobbicon 8mm hex nut
3) Befaco Bananuts / Cliff FC681374V / PJ3410 split nut
4) Doepfer (Cliff CL1384 / S6-BB) hex nuts
1) Thonkiconn / Knobbicon 8mm knurled nut
2) Thonkiconn / Knobbicon 8mm hex nut
3) Befaco Bananuts / Cliff FC681374V / PJ3410 split nut
4) Doepfer (Cliff CL1384 / S6-BB) hex nuts
