WQP518MA-BM (1 pc)
Product number:
100522P001
Product information "WQP518MA-BM (1 pc)"

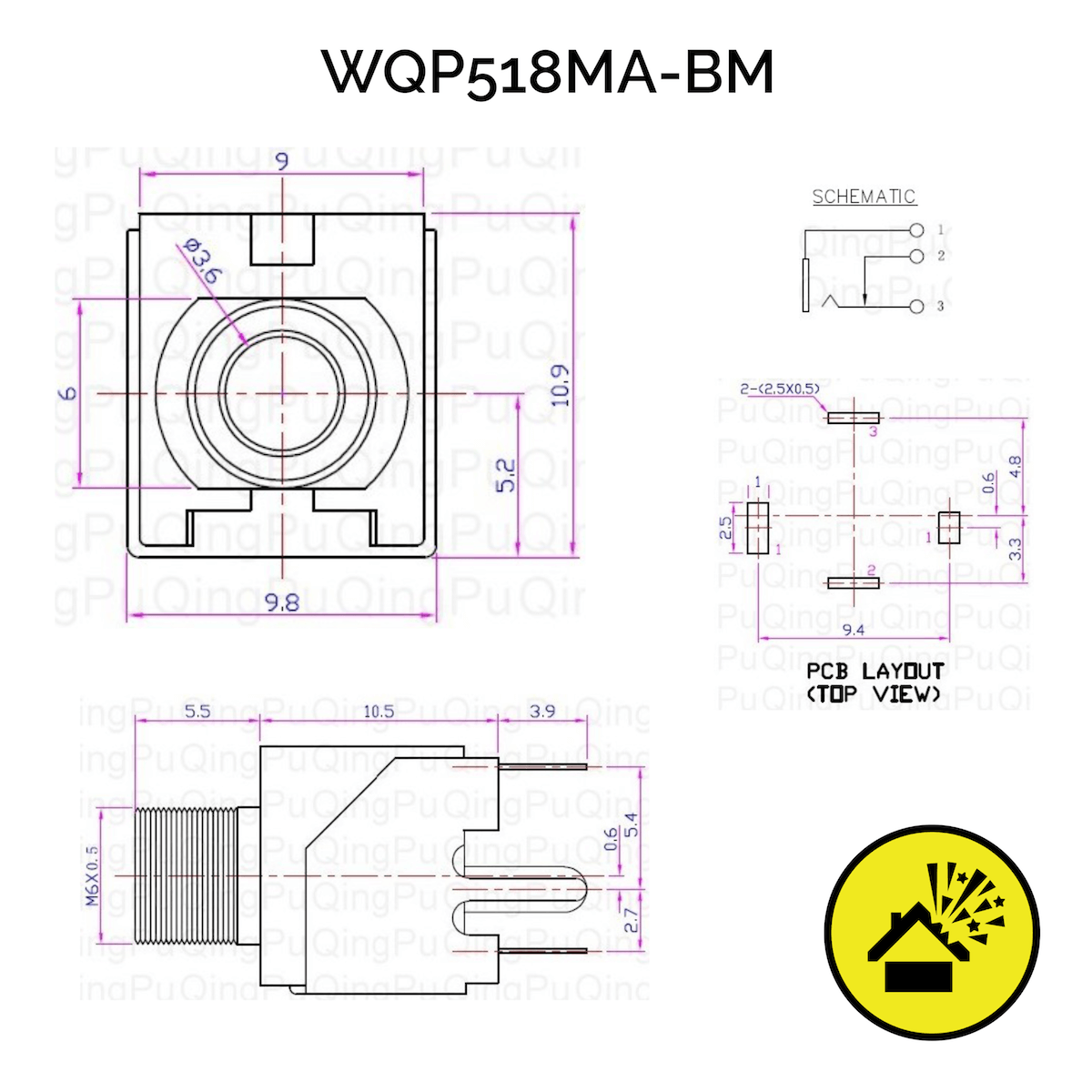

It is one of the standard audio connectors in Eurorack. It is also knowns as "Flight of Harmony" or "Erthenvar" connector. 3,5 mm mono connector with switching function and 2 GND pins for PCB mounting. Dimensions: effective total body height 11,5 mm, threading 4,5 mm, needs a 6mm hole in the panel.
An older version was named PJ301BM, the new version is called WQP518MA-BM now, is more reliable and has a longer lifecycle. Like the newer Thonkiconns it has a rectangle tab instead of semi-round one (the part between body and threading, where the front panel will sit on) but the height is completely the same. Footprint and dimensions are the same.
Don’t forget to buy nuts separately, they are not included!
An older version was named PJ301BM, the new version is called WQP518MA-BM now, is more reliable and has a longer lifecycle. Like the newer Thonkiconns it has a rectangle tab instead of semi-round one (the part between body and threading, where the front panel will sit on) but the height is completely the same. Footprint and dimensions are the same.
Don’t forget to buy nuts separately, they are not included!
| Connector 1: | Jack 3,5 mm TS |
|---|---|
| Material / Color: | Black |
Manufacturer "Qingpu Electronics"
QingPu is the original manufacturer of the Thonkiconn connectors and many other ones. We import them directly from the source.
