Thonkiconn Stereo WQP419GR (1 pc)
Product number:
100516P001
Product information "Thonkiconn Stereo WQP419GR (1 pc)"

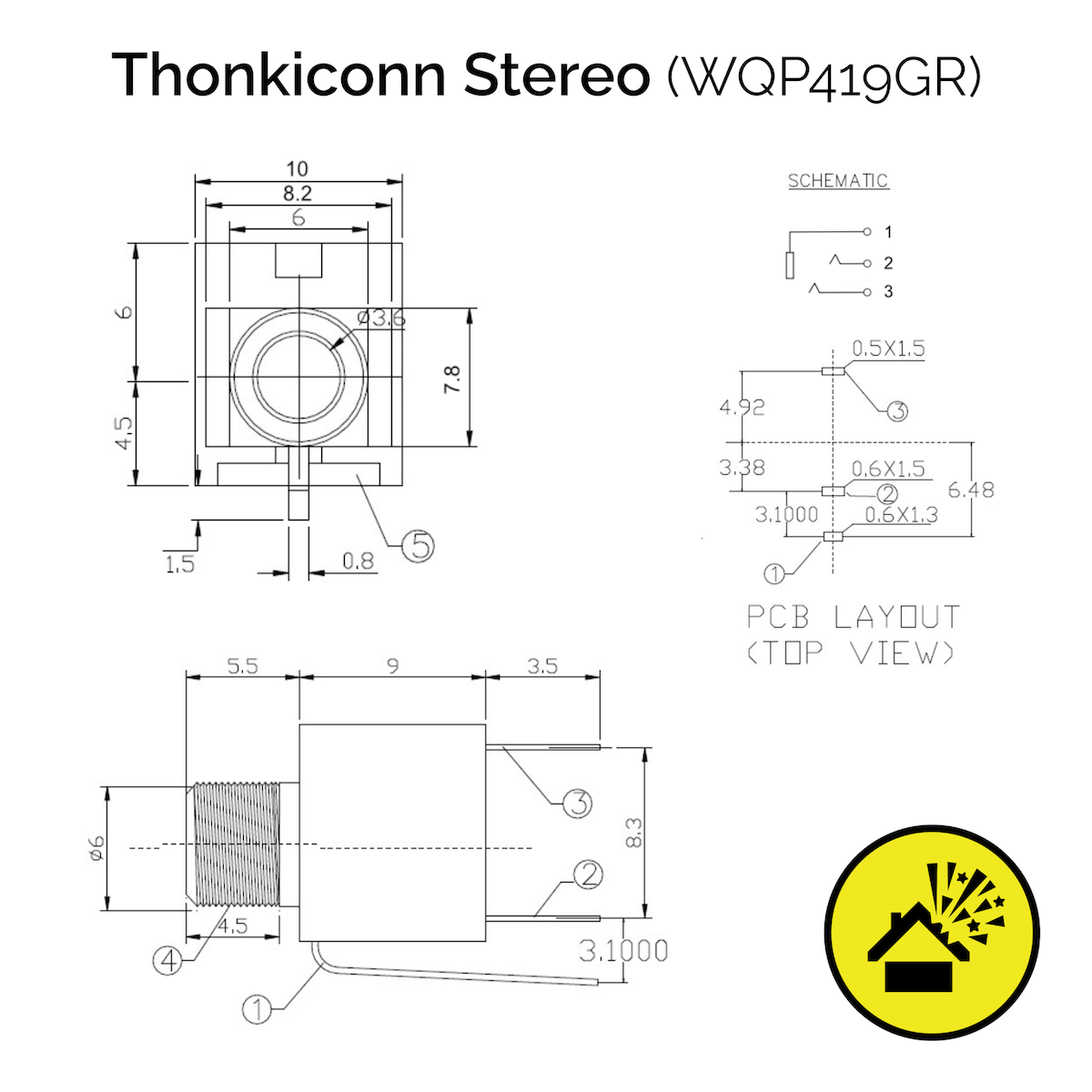

Stereo version of Thonkiconn, the standard audio connector in Eurorack. 3,5 mm stereo connector without switching function for PCB mounting. Dimensions: effective total body height 10 mm, threading 4,5 mm, needs a 6 mm hole in the panel. The stereo version is 1 mm wider than the mono version.
The older version was named PJ366ST. The new version is called WQP419GR. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.
Don’t forget to buy nuts separately, they are not included!
| Connector 1: | Jack 3,5 mm TRS |
|---|---|
| Material / Color: | Green |
Manufacturer "Qingpu Electronics"
QingPu is the original manufacturer of the Thonkiconn connectors and many other ones. We import them directly from the source.
