Thonkiconn Mono WQP518MA (1 pc)
Product number:
100515P001
Product information "Thonkiconn Mono WQP518MA (1 pc)"

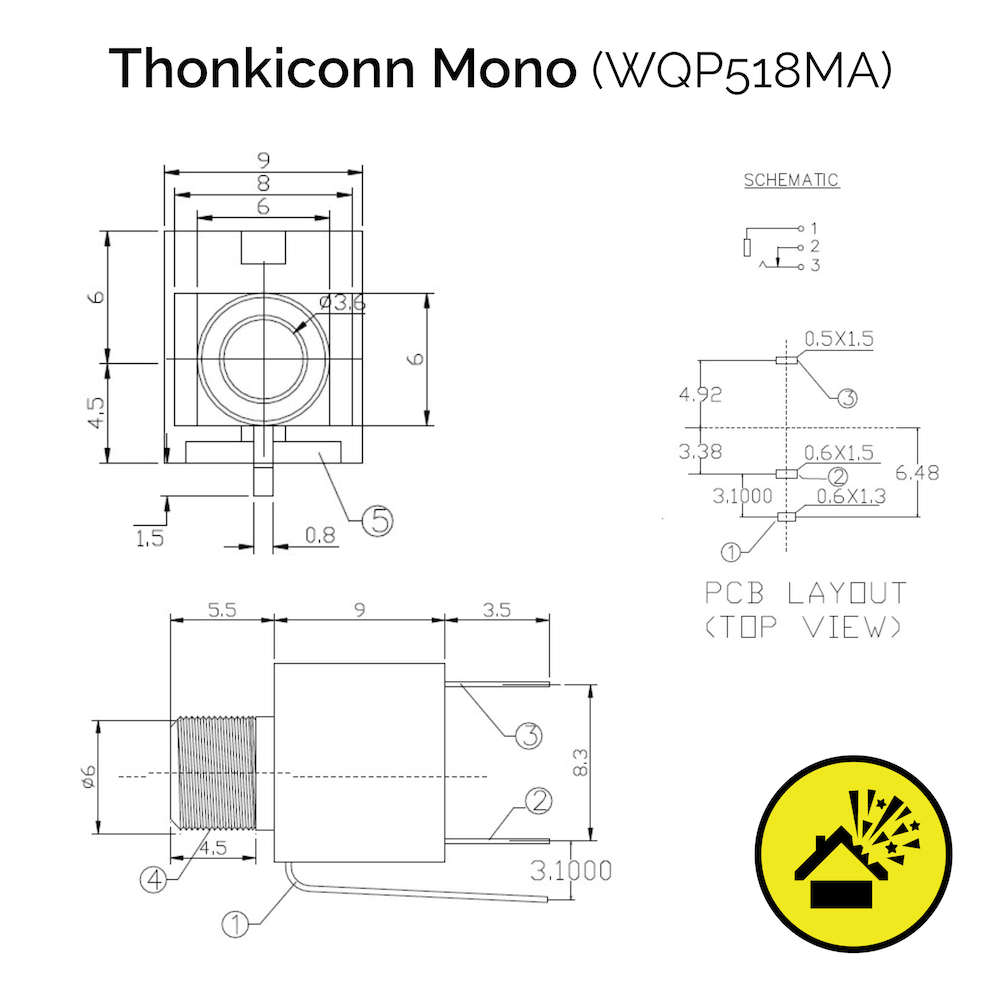

Thonkiconn is the standard audio connector in Eurorack. 3,5 mm mono connector with switching function for PCB mounting. Dimensions: effective total body height 10mm, threading 4,5 mm, needs a 6 mm hole in the panel.
Older versions were named PJ398SM and PJ301M-12. The new version is called WQP518MA, is more reliable and has a longer lifecycle. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.
Don’t forget to buy nuts separately, they are not included!
| Connector 1: | Jack 3,5 mm TS |
|---|---|
| Material / Color: | Black |
Manufacturer "Qingpu Electronics"
QingPu is the original manufacturer of the Thonkiconn connectors and many other ones. We import them directly from the source.
