Sinusoda - The Can (Unsassembled, Grey)
Product information "Sinusoda - The Can (Unsassembled, Grey)"

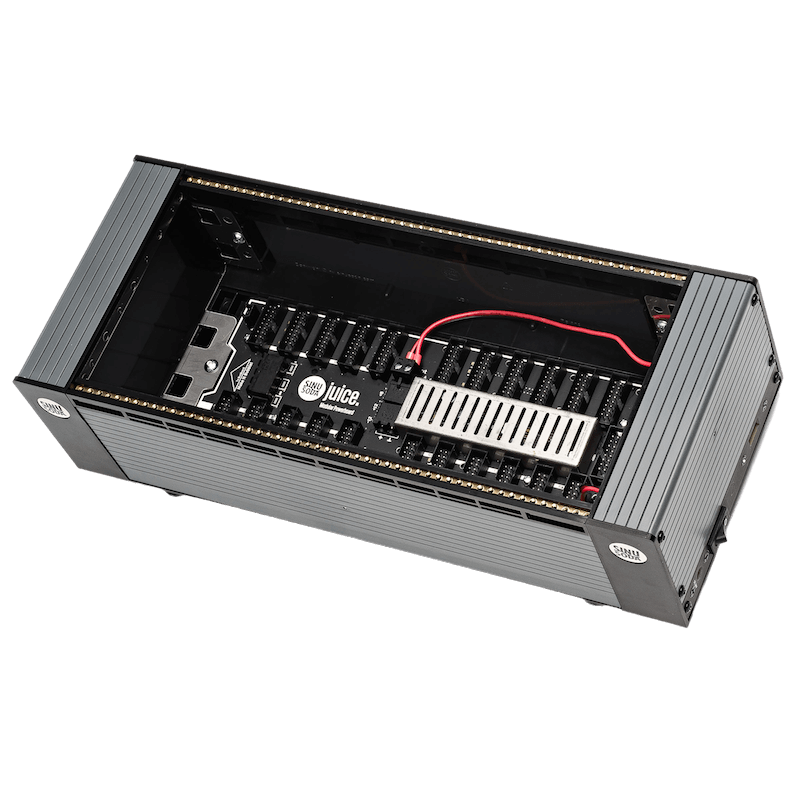

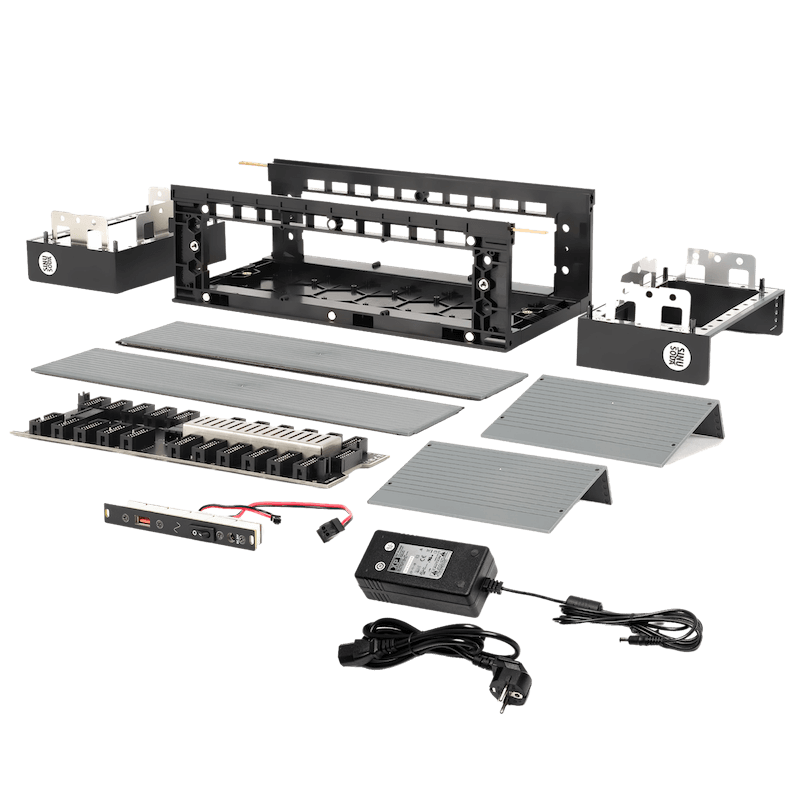

Sinusoda - The Can (3U, 52HP, Juice, Straw, 60W Brick) - Grey (unassembled)
The Can is Sinusoda’s 3U 52 HP case that comes with Juice Powerboard, Straw power inlet and 60W power brick. Comes in parts and ready for self-assembly. Additional vertical and horizontal connectors of the casing system included. It’s a starting point for a truly modular case for modular synths.
You can connect any amount of Sinusoda’s Empty Cans to add more HP to this case.
Juice Powerboard is Sinusoda’s Ultra Low Noise power supply solution offering up to +12v: 3A / -12v: 1.5A / +5v: 2A of clean power for your synths. Several Juices can be connected together in series for more power.
Straw power inlet has a USB charging port for your mobile devices, midi devices or lamps.
Side blinds can be cut into blank panels revealing more space - additional 4 hp from the top on both sides, and up to 14 hp from the sideway mount.
For more information on the Sinusoda modular casing system visit the Sinusoda Website.
Features:
Dimensions: 325 x 130 x 85 mm
Case depth: 70 mm without powerboard, and 56 mm with powerboard
Weight: 0,9 kg (power brick included)
The Can is Sinusoda’s 3U 52 HP case that comes with Juice Powerboard, Straw power inlet and 60W power brick. Comes in parts and ready for self-assembly. Additional vertical and horizontal connectors of the casing system included. It’s a starting point for a truly modular case for modular synths.
You can connect any amount of Sinusoda’s Empty Cans to add more HP to this case.
Juice Powerboard is Sinusoda’s Ultra Low Noise power supply solution offering up to +12v: 3A / -12v: 1.5A / +5v: 2A of clean power for your synths. Several Juices can be connected together in series for more power.
Straw power inlet has a USB charging port for your mobile devices, midi devices or lamps.
Side blinds can be cut into blank panels revealing more space - additional 4 hp from the top on both sides, and up to 14 hp from the sideway mount.
For more information on the Sinusoda modular casing system visit the Sinusoda Website.
Features:
Dimensions: 325 x 130 x 85 mm
Case depth: 70 mm without powerboard, and 56 mm with powerboard
Weight: 0,9 kg (power brick included)
| Current out +5 V [mA]: | 2000 |
|---|---|
| Current out +12 V [mA]: | 3000 |
| Current out -12 V [mA]: | 1500 |
| DIY Level: | Easy |
| Depth [mm]: | 56 |
| Material / Color: | Grey Plastic |
| Max power input [W]: | 96 |
| Number of Power-Pinheader: | 23 |
| Power Input Type (pri.): | 19 - 25 Vdc / Barrel (5,5/2,5) |
| Width [HP]: | 52 |
| Format: | 3U |
