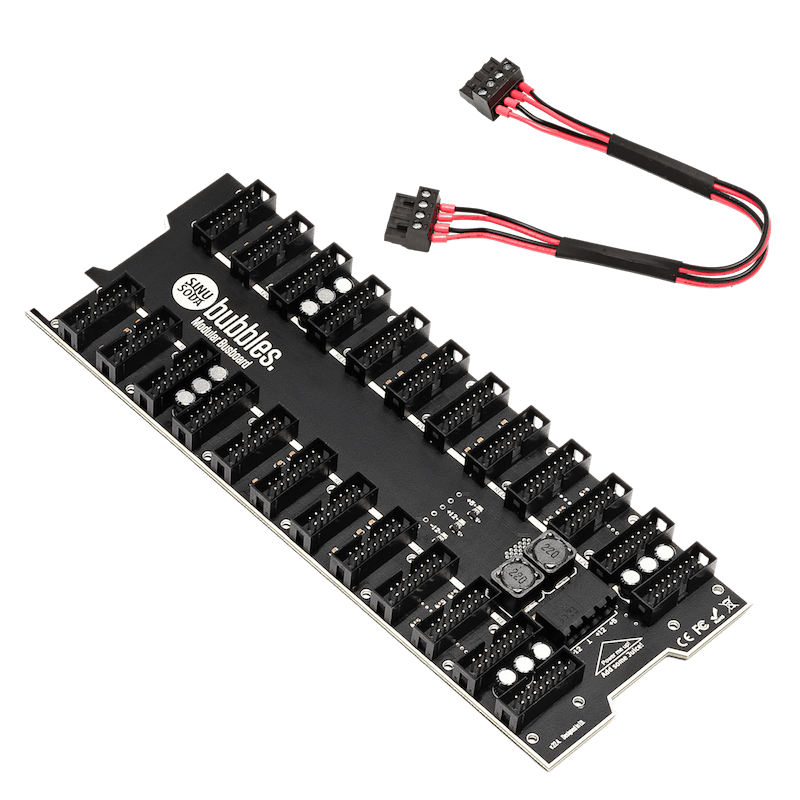

Sinusoda - Bubbles
Product information "Sinusoda - Bubbles"
Ultra Low Noise filtering & safety technologies we’ve used in Juice. You can add up to two Bubbles to your Juice Powerboard.
Bubbles can also be used with other power solutions by connecting the one header with a ribbon cable to your power unit. More information available at https://sinusoda.com
No power brick included - you will need to buy power brick separately (Power brick is needed for Juice & Straw to work, Bubbles is an expander for Juice, and only one power brick is needed for the whole system).
Dimensions: 226 x 86 x 19 mm
Bubbles can also be used with other power solutions by connecting the one header with a ribbon cable to your power unit. More information available at https://sinusoda.com
No power brick included - you will need to buy power brick separately (Power brick is needed for Juice & Straw to work, Bubbles is an expander for Juice, and only one power brick is needed for the whole system).
Dimensions: 226 x 86 x 19 mm
| DIY Level: | NOT DIY |
|---|---|
| Depth [mm]: | N/A |
| Height [mm]: | N/A |
| Max power input [W]: | N/A |
| Number of Power-Pinheader: | 24 |
| Power Input Type (pri.): | +/- 12 Vdc & 5 Vdc |
| Width [HP]: | N/A |
| Panel / Color: | Black FR4 |
