Products of Shakmat
Shakmat is a modular synthesizer company based in Brussels, Belgium. We create modules pushing musical expression and creativity forward. Shakmat team gathers engineers, designers and musicians, providing a mixed technical and musical approach to module conception.
Shakmat - Aeolus Mixer
available
Aeolus Mixer is a 6HP quadraphonic unity mixer. Three quadraphonic inputs and two stereo outputs are mixed to provide a quadraphonic output with 5.1 compatibility.Features:• Quadraphonic unity mixer• 3 quadraphonic inputs with mono and stereo normalisation• 2 stereo inputs with mono normalisation• Cross switch on the second stereo input allowing stereo crossing in the quadraphonic space• 5.1 compatible outputs thanks to the center and sum output in addition to the four main outputs• Jumpers on the back on the module for gain reductionDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€121.38*
Shakmat - Aeolus Seeds
only 1 left
Aeolus Seeds manipulate the dynamics of a fully analog signal path through four VCAs driven by a handy multi channel modulation source.As well as an obvious tool for quadraphonic spatialisation, Aeolus Seeds is also a useful device for vector synthesis, thanks to its Sum output.The CV output also pushes the exploration further by providing signals to other modules, enabling you to breathe more life into the sound spatialisation of a quad environment.Features:• Full analog path quadraphonic spatializer• 6 main modes of modulation including LFO, envelops and randomness• 6 different configurations (which path the sound takes in the quadraphonic space)• Sync input allowing resettable and synced modulations• CV output providing different parameters of the modulation such as the angle or the distance from the center• Suitable for vector synthesis, scanning or morphing applications thanks to the Sum output• Bipolar CV inputs• Current state storing• Skiff Friendly• Djtechtools rubber injected potentiometersDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€193.97*
Shakmat - Clock O’Pawn mk2
available
The Clock O’Pawn mk2 serves as a versatile clock device, taking on the role of true "chef d’orchestre" for your modular system. Its transport section lets you start, stop, and reset instruments synchronized with its intuitive internal clock or have your setup dance with your MIDI equipment.If you find metronomic clock signals uninspiring, a variety of groove patterns and clock humanization features enable the maestro to guide your setup with distinctive shuffles and swings. To complete this rich set of features in a small yet powerful clock source: presets memory, select bus compatibility, and several handy options to configure the Clock O'Pawn the way it suits you the best.Features:• Clock source module offering four distinct outputs• Transport section with play, pause, stop, tap tempo and manual reset operations• Diverse selection of grooves, ranging from classic swing to experimental clock manipulation• Humanize adding randomisation to the clock timing• Accent output with 27 different patterns• Option menu for customizable preferences• Midi input for external sync with midi devices• Memory of 16 presets• Select bus compatibility• Skiff friendlyDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€140.00*
Shakmat - Dual Dagger (discontinued)
sold out at the moment
* * * Dual Dagger is gonna be discontinued when sold out! Last ones available. * * *The Dual Dagger is a double-sided weapon, carefully sharpened to chop stereo signals. The module gives independent control over low-pass and high-pass cutoff frequencies, and an assignable resonance is shared on one control.The Link function turns the dual filter into a band-pass filter, with control over frequency, bandwidth and band edges resonance! The module is carefully calibrated to share the exact same parameters on both audio channels and thanks to the pan function, it is easy to break up the cutoff frequencies of each side up, which leads to a whole new territory of stereo treatments!Features:• Dual 24dB/octave (low pass and high pass) stereo filter• Individual control on the low pass and high pass frequencies• Shared and assignable control upon resonance• Link function turning the module into a 48dB/octave bandpass filter• CV input over low pass frequency, hi pass frequency and resonance• CV input for “panning” control of the low pass and the hi pass• Heavily calibrated module for identical left and right channels behaviourDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€183.26*
Shakmat - Gemini's Path (discontinued)
sold out at the moment
* * * Gemini's Path DIY is now discontinued! * * *This 6 HP skiff friendly amplitude processor is a very handy module to control the dynamics of two signals or mess with the stereo image. Based on a pair of high-end VCAs, an audio to trigger converter and a smart modulation source, the Gemini’s Path allows numerous operations such as decay/gate on amplitude, auto accentuation, side chain compression, auto pan and more!Features:• Dual VCA• Stereo / dual mono dynamic and pannig processor• Low noise and distorsion That Corp dual VCA core• Trigger detector section extracting gates & triggers from any audio / CV signal• 4 dynamic modes : pump, animated pump, expander and holder• 4 panning modes : LFO pan, random pan, auto-pan and granuliser• Simple VCA mode giving direct access to level and panning• Flexible control assignement : shared, dual or independent control with ability to load different modes for each channel• Audio and external inputs DC coupled• Unipolar CV inputs• User replaceable firmware chip• Digital jumper allowing to set dynamic modes sensible to triggers or gates• Current state storing• Skiff Friendly• Djtechtools rubber injected potentiometersDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€164.22*
Shakmat - Harlequin's Context
sold out at the moment
The Harlequin's Context is a theatre piece in 16 scenes and 4 acts. In those scenes, four channels can shapeshift into different roles such as: offset, random, LFO or envelope. Scene selection can be done manually or can be addressed / sequenced with the CV and gate inputs depending on the set configuration.Packed in 12hp with a ton of features, the Harlequin's Context is a powerful tool to prepare a live set with, and to create very peculiar modulation signals in the studio.Features:• Quad channel modulation presetter• 16 scenes manually selectable, CV adressable or sequenceable with a clock signal• 15 different modulation algorithms : Offsets, LFOs, Randoms, Envelops or Serial• 14 different sets, defining the way the module reacts to the CV and Gate inputs• Morphing mode allowing to morph different modulation types• Non-volatile memory of 16 slots of 16 scenes• Select bus compatible as tranmsitter or receiver• Djtechtools rubber injected potentiometersDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€211.82*
Shakmat - Jeweler Cast
available
A Genuine Wave Craftsman! The Jeweler Cast melts, bends, and chisels all types of signals, audio, or CV. Composed of two independent sections, the Mix, and the Shaper, the Jeweler Cast combines a ring modulator, a crossfader, a wavefolder and a distortion. Thanks to its tool ensemble, this fully analog yet compact module can manipulate basic waveforms and complex signals in infinite ways.Features:• Mix section crossfading between three sources including a ring modulator• Shape section acting as a wavefolder or a heavy distorsion• Bypass (dry signal) of the shape section at minimum setting• Processing audio or CV signals• AC coupling switchDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€127.33*

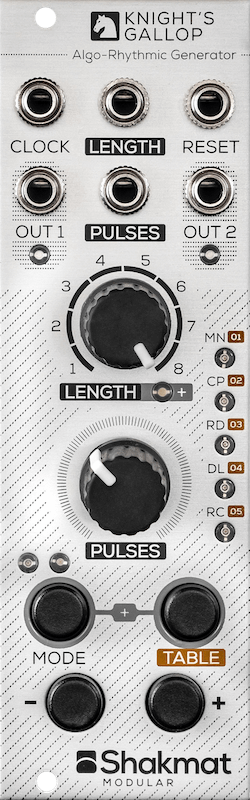

Shakmat - Knight's Gallop (discontinued)
sold out at the moment
AlgoRhythmic Generator. Two outputs and five different rhythmic flavors multiply by a load of “algo-rhythmic” processing to result in a practically infinite number of polyrhythms. That’s the fundamental formula that produces the Knight's Gallop principle : a dual trigger generator providing sequences according to tables and modes.The source tables contain patterns such as the Euclidean polyrhythms, and the modes allow the user manipulate and mangle those patterns according to different algorithms. As the module has two outputs, it is a very powerful instrument to create diversified and instantaneous polyrhythms.Features:• Dual Output Trigger Generator• Variable length sequences (up to 16 steps)• Length and Pulse amount potentiometers and CV inputs• Shift + & shift - buttons allowing to shift the sequence forward and backward• Main mode (MN) providing a lot of utlity modes for the second output : reset, no shift, invert and reverse• Compute mode (CP) calculating associated sequences for the second output delivering very musical polyrythm• Random mode (RD) adding randomness on the second output sequence, 4 amounts of randomness determined by the sub mode• Dual mode (DL) allowing to set the two outputs seperatly• Record mode (RC) turning the Knight's Gallop into a “play your sequence on the buttons to record it” module• Five different kind of tables for five different rythmic flavours : Divider Sequences, Classic Euclidean, Revised Euclidean, Anti Euclidean & Split Sequences• User replaceable firmware chipDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€134.47*
Shakmat - Mod Medusa
available
In a simplistic way, The Mod Medusa could be described as an Euclidean LFO: an “algorithmic” modulation source which produces variable period LFO signals synced to rhythmic patterns. Those patterns are generated by algorithms such as the Euclidean one or different ones coming from the White and Knight's Gallop. The Mod Medusa has 4 outputs generating 4 correlated LFOs, which give different “polyrhythms” according to the chosen mode. Generated waveforms can easily be twisted using the symmetry and shape parameters which continuously morph the signal into different waveshapes. Many on-panel controls, assignable Gate and VCA Inputs turn the Mod Medusa into a strong performance tool. A very unique approach which leads to instantaneous and original results.Features:• Unique concept of sequenced LFO• Four outputs which can be correlated or independent• Four correlation modes: Main, Compute, Random or Phase• Eight tables generated by algorithms producing different rhythmic patterns• Length (from 1 to 16 steps), density and shift controls over the sequence• Shape and symmetry controls over the generated waveforms• Unipolar or Bipolar outputs• Peak Sync function allowing to synchronize the LFO differently to the incoming clock• Assignable gate input which can work as ratchet, track and hold or one shot mode.• Assignable VCA input which can be assigned to any output.• On board clock divider• Bipolar CV inputs (except for the VCA input)• Current state storingDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€222.53*

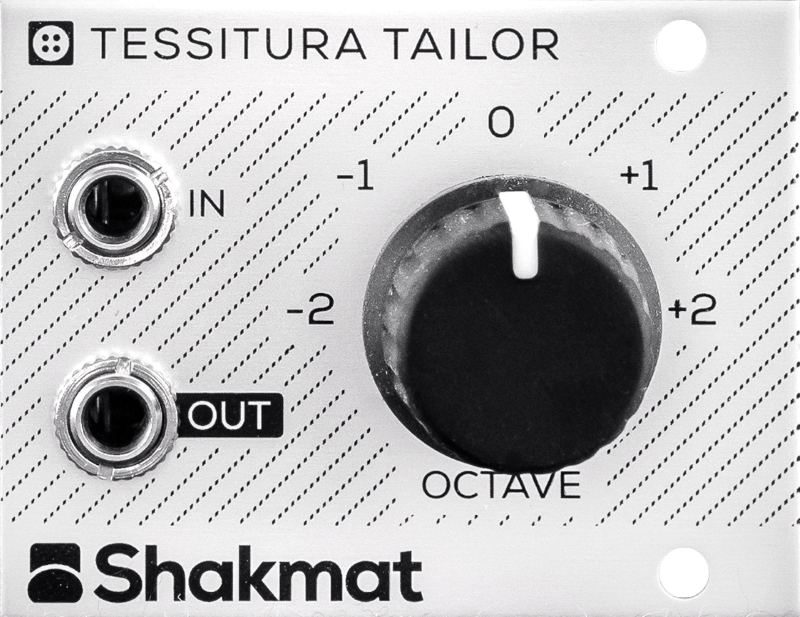

Shakmat - Tessitura Tailor (discontinued)
sold out at the moment
* * * Tessitura Tailor is gonna be discontinued when sold out. Last ones available! * * *The Tessitura Tailor adds or substracts a precise voltage (from -2 to +2 volts) to the signal received at the CV input. This signal is transposed by octaves, depending on the rotary switch’s position. As the CV input is normalised to 0 volt, the module works without any input as an octave switch.Features:• Switchable CV transposer/generator• Stepped potentiometer allowing transposition from -2 to +2 octaves• Precison trimmer at the back of the module for fine-tunning.• Skiff friendly (25mm deep)• Intellijel and Pulp Logic format supportedDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€61.88*
Shakmat - Time Apprentice
sold out at the moment
The Time Apprentice is a compact dual configurable clock divider. The dividers have their own set of divisions, perfect for applications such as clocking and resetting sequencers, syncing pingable modulation sources or triggering events. A set of jumpers at the back of the module allows for personalisation of the divider’s behaviour.Features:• Dual clock dividers• Dedicated potentiometer for each divider with two different ratio ranges• 4 jumpers at the back allowing customisation of the dividers (triggers/gates, auto-reset, alternative clocking)• Skiff friendly (25mm deep)• Intellijel and Pulp Logic format supportedDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€51.17*

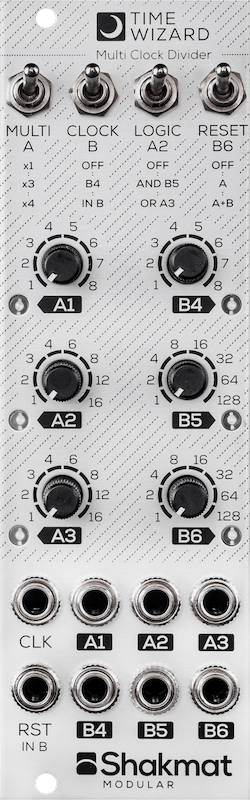

Shakmat - Time Wizard
only 1 left
Casting spells on every boring clock signals, The Time Wizard got a bag full of arcane time-warping tricks. All his magical feats are based on 6 dividers with selectable division factors and 4 switches providing 81 routing variations.This module's occult powers have been harnessed to easily clock and reset other sequencers with odd time signatures, provide weird clock division/multiplication ratios, and create complex poly-rhythmsFeatures:• Sextuple clock divider divided in two sections A and B• Dedicated potentiometer acting on the division factor for each divider• Clock multiplying and weird div / mult ratio abilities for the first section, first section incoming clock can be multiplied by 3 or 4, allowing to get easily triplets from a 16th clock or mult / div association as x4 / 7• Independant clocking or divider association abilities for the second section, so B5 and B6 can get their clock in internaly from B4. For example, associating B4 = /7 and B5 = /16 provide a hit at each clock begining of 4 bars with a 7/4 time signature• Auto-reset available for the first section or the whole module, the autoreset is provided by B6• Additional logic functions for divider A2 : A2 output can provide the following functions : A2 AND B5 or A2 OR A3• Jumper on the back for Trigger or Gate selection for B5 and B6• User replaceable firmware chipDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€127.33*
