SetonixSynth - Solar Gravity Vactrol VCA
Product information "SetonixSynth - Solar Gravity Vactrol VCA"

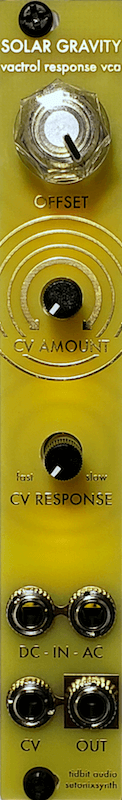

The Solar Gravity is an analog vactrol-based VCA designed to bring the lovely response of optocouplers into the realm of clean, performance-based Eurorack VCAs. Starting with this simple concept, the Solar Gravity utilizes some neat active circuitry to significantly reduce the bleed inherent in vactrol-based VCAs and to provide the user with lots of control over the level, direction, and response of incoming control voltage.
Though it’s primarily designed for use with audio signals, the Solar Gravity can also be used to control the level of CV such as envelopes or stepped voltages with a unique vactrol response through its DC-coupled input.
Features:
• Offset knob for manual control of initial signal gain
• CV attenuator and Slew controls for maximum control
• True VCA: no lowpass filtering of input signals
• Very low bleed when closed
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Though it’s primarily designed for use with audio signals, the Solar Gravity can also be used to control the level of CV such as envelopes or stepped voltages with a unique vactrol response through its DC-coupled input.
Features:
• Offset knob for manual control of initial signal gain
• CV attenuator and Slew controls for maximum control
• True VCA: no lowpass filtering of input signals
• Very low bleed when closed
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 16 |
|---|---|
| Current draw -12 V [mA]: | 18 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 4 |
| Format: | 3U |
| Panel / Color: | Natural FR4 |
