PJ3410 Stereo
Product number:
100680
Product information "PJ3410 Stereo"

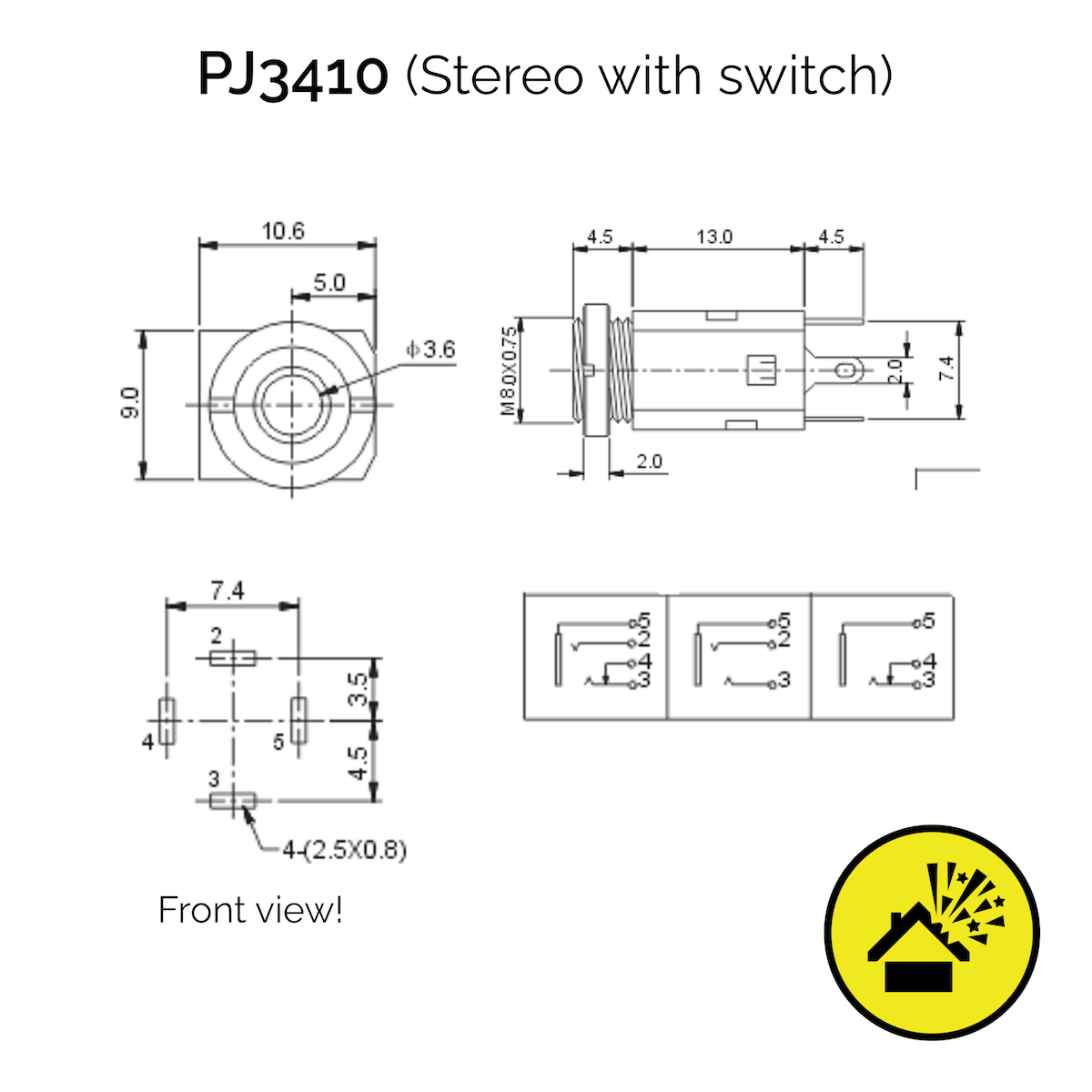

PJ3410 is a 3,5mm TRS (stereo) connector with switching function for the tip contact and a replacement for Cliff FC681374V. It features solder lugs with hole. Dimensions: with 9mm, height 10,5mm, lenth (body) 13mm. Needs an 8mm hole in the front panel. You can use it as a mono jack (when your PCB configuration demands it) and simply pull out pin 2 (ring).
Split nuts are included!
Split nuts are included!
| Connector 1: | Jack 3,5 mm TRS |
|---|---|
| Material / Color: | Black |
| Technology: | Solder Lugs |
| Threading Diam. [mm]: | M8 x 0,75 |
Manufacturer / Hersteller:
Wenzhou Qingpu Electronics Co., Ltd.
North Industry Zone
Hongqiao Yueqing Zhejiang 325608
China
sales@qingpu-electronics.com
EU responsible:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19
04229 Leipzig, Germany
support@exploding-shed.com
WEEE-Nr.: DE94097895
Safety Instructions for Electronic and Mechanical Components
Intended Use:
• Electronic components, including potentiometers, knobs, switches, connectors, resistors, capacitors or integrated circuits (ICs), are designed for use in electronic circuits and devices.
• Use these components only for their intended purposes in electrical and electronic applications, according to their specified voltage, current, and environmental conditions.
• Any use outside the intended applications may result in malfunction or safety risks.
Handling and Installation
Installation:
• Handle electronic components with appropriate tools, such as tweezers, to avoid physical damage or exposure to electric shock.
• Ensure that the components are installed in the correct orientation and according to manufacturer specifications to avoid malfunction or damage to the circuit.
Storage:
• Store components in a dry, cool, and static-free environment to avoid damage from moisture, extreme temperatures, or electrostatic discharge (ESD).
• Avoid direct exposure to sunlight, which could affect component stability and performance.
Protection from Static Electricity:
• Use antistatic equipment (e.g., wrist straps, ESD mats) when handling electronic components to prevent electrostatic discharge, which can damage sensitive devices like ICs.
Compatibility:
• Make sure electronic components are compatible with the circuit in terms of voltage, current, and other technical specifications.
Warnings
Electrical Shock Hazard:
• Some components can retain charge even when disconnected. Use appropriate tools and take precautions when handling components to minimize the risk of electric shock.
Burn or Fire Risk:
• Overloading or misusing electronic components may result in overheating, which could lead to burning or fires. Ensure that components are used within their specified voltage and current ratings.
Danger from Misuse:
• Incorrect handling or use outside specified limits can damage the components or affect the performance and functionality of connected devices. Only use components within their specified tolerances and conditions.
Choking Hazard:
• Small electronic components can pose a choking hazard if swallowed. Keep components out of reach of children.
Wenzhou Qingpu Electronics Co., Ltd.
North Industry Zone
Hongqiao Yueqing Zhejiang 325608
China
sales@qingpu-electronics.com
EU responsible:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19
04229 Leipzig, Germany
support@exploding-shed.com
WEEE-Nr.: DE94097895
Safety Instructions for Electronic and Mechanical Components
Intended Use:
• Electronic components, including potentiometers, knobs, switches, connectors, resistors, capacitors or integrated circuits (ICs), are designed for use in electronic circuits and devices.
• Use these components only for their intended purposes in electrical and electronic applications, according to their specified voltage, current, and environmental conditions.
• Any use outside the intended applications may result in malfunction or safety risks.
Handling and Installation
Installation:
• Handle electronic components with appropriate tools, such as tweezers, to avoid physical damage or exposure to electric shock.
• Ensure that the components are installed in the correct orientation and according to manufacturer specifications to avoid malfunction or damage to the circuit.
Storage:
• Store components in a dry, cool, and static-free environment to avoid damage from moisture, extreme temperatures, or electrostatic discharge (ESD).
• Avoid direct exposure to sunlight, which could affect component stability and performance.
Protection from Static Electricity:
• Use antistatic equipment (e.g., wrist straps, ESD mats) when handling electronic components to prevent electrostatic discharge, which can damage sensitive devices like ICs.
Compatibility:
• Make sure electronic components are compatible with the circuit in terms of voltage, current, and other technical specifications.
Warnings
Electrical Shock Hazard:
• Some components can retain charge even when disconnected. Use appropriate tools and take precautions when handling components to minimize the risk of electric shock.
Burn or Fire Risk:
• Overloading or misusing electronic components may result in overheating, which could lead to burning or fires. Ensure that components are used within their specified voltage and current ratings.
Danger from Misuse:
• Incorrect handling or use outside specified limits can damage the components or affect the performance and functionality of connected devices. Only use components within their specified tolerances and conditions.
Choking Hazard:
• Small electronic components can pose a choking hazard if swallowed. Keep components out of reach of children.
Manufacturer "Qingpu Electronics"
QingPu is the original manufacturer of the Thonkiconn connectors and many other ones. We import them directly from the source.
