Nyström - Crum Hum (Assembled)
Product number:
100826
Product information "Nyström - Crum Hum (Assembled)"
This is the assembled version of the Crum Hum!
Crum Hum is a 3-voice experimental and expressive soundscaping instrument designed for generative and ever-evolving melodic and harmonic creation.
The Crum Hum features 12 sound engines which range from simple sawtooth and square waves with lowpass filtering, to various wavetable and FM engines and more complex setups like bass, chords, and melody. There are also 12 different built-in scales to play with.

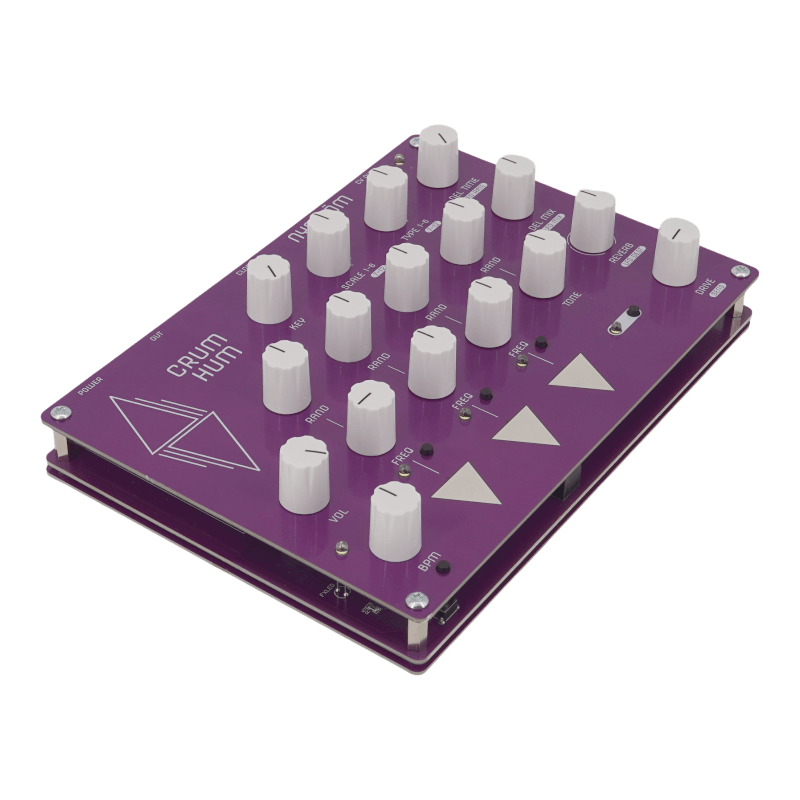

Each of the three voices has a triangular touchpad that lets you control the timbre and volume simultaneously. Each voice also offers a Frequency knob for setting the lowest possible note, as well as a Random knob that sets the probability of notes being played for each clock pulse.
The Tone knob affects the timbre of all three voices simultaneously. What it does exactly depends on the selected sound engine and the tone can also be randomized for subtle to drastic sonic variations at each clock pulse.
Moreover, Crum Hum features built-in delay, reverb, and overdrive effects, as well as an LFO that can modulate the frequency, tone, or volume. There’s an internal clock generator, but it’s also possible to sync the synth to an external clock source. Most parameters can be controlled via MIDI CC (see the user manual for more details).
In addition to a stereo audio output, Crum Hum features a CV output that corresponds to the touchpads, allowing for expressive control of other modular instruments.
Features:
• 3 x melodic voices with expressive touch control
• 12 x different sound engines
• Generative & randomized melodic and chord generation

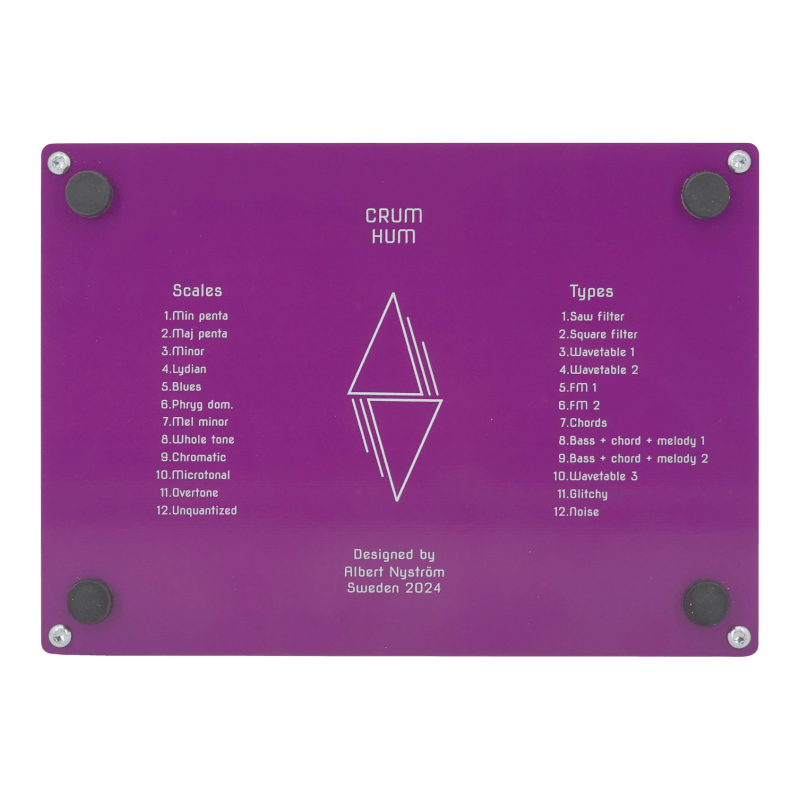

• 12 x different scales
• Built-in delay, reverb, overdrive and LFO
• 3.5mm CV output
• 3.5mm Clock input
• Send and receive Midi sequencing and Midi CC.
DIY-Kit-Type:
Assembled unit. This is completely ready to use, nothing to solder or to assemble.
Crum Hum is a 3-voice experimental and expressive soundscaping instrument designed for generative and ever-evolving melodic and harmonic creation.
The Crum Hum features 12 sound engines which range from simple sawtooth and square waves with lowpass filtering, to various wavetable and FM engines and more complex setups like bass, chords, and melody. There are also 12 different built-in scales to play with.
Each of the three voices has a triangular touchpad that lets you control the timbre and volume simultaneously. Each voice also offers a Frequency knob for setting the lowest possible note, as well as a Random knob that sets the probability of notes being played for each clock pulse.
The Tone knob affects the timbre of all three voices simultaneously. What it does exactly depends on the selected sound engine and the tone can also be randomized for subtle to drastic sonic variations at each clock pulse.
Moreover, Crum Hum features built-in delay, reverb, and overdrive effects, as well as an LFO that can modulate the frequency, tone, or volume. There’s an internal clock generator, but it’s also possible to sync the synth to an external clock source. Most parameters can be controlled via MIDI CC (see the user manual for more details).
In addition to a stereo audio output, Crum Hum features a CV output that corresponds to the touchpads, allowing for expressive control of other modular instruments.
Features:
• 3 x melodic voices with expressive touch control
• 12 x different sound engines
• Generative & randomized melodic and chord generation
• 12 x different scales
• Built-in delay, reverb, overdrive and LFO
• 3.5mm CV output
• 3.5mm Clock input
• Send and receive Midi sequencing and Midi CC.
DIY-Kit-Type:
Assembled unit. This is completely ready to use, nothing to solder or to assemble.
| DIY Level: | Medium |
|---|---|
| Depth [mm]: | 125 |
| Height [mm]: | 42 |
| Material / Color: | Blue FR4 |
| Power Input Type (pri.): | 5 Vdc / USB micro B |
| Width [mm]: | 145 |
