Noise Technology - System Sound
Product information "Noise Technology - System Sound"

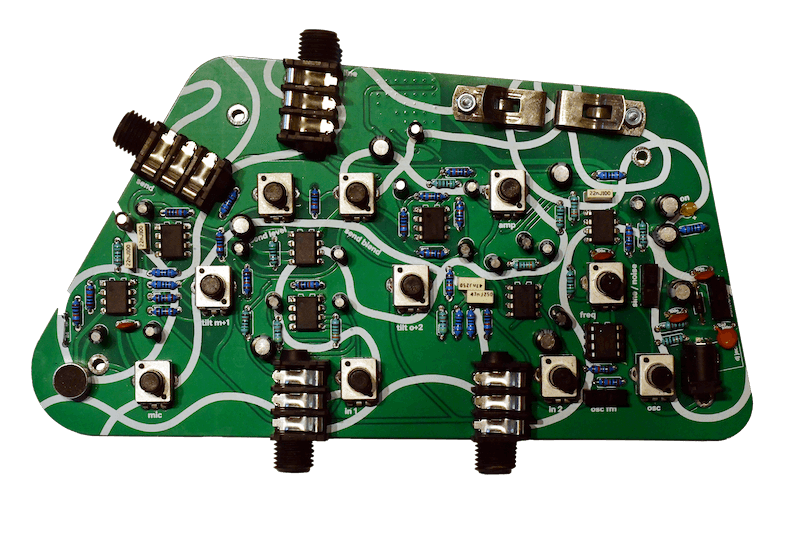

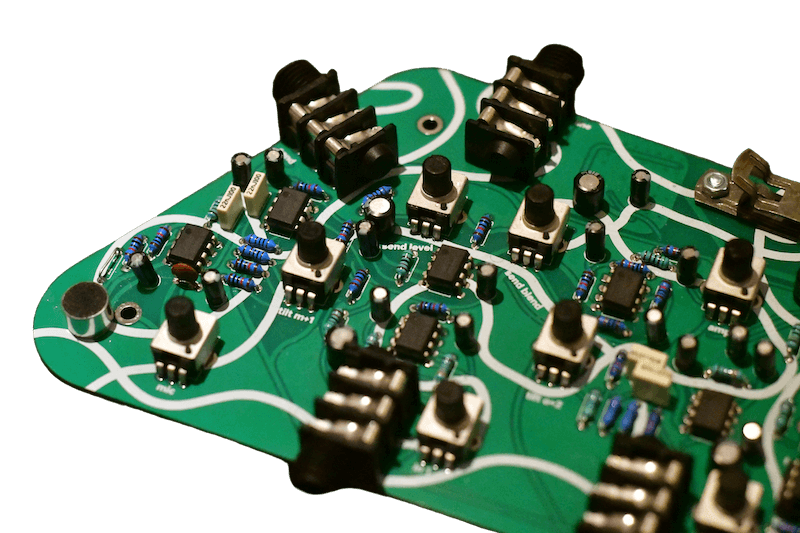

System Sound is a feedback noise device for experimental music, sound design, sound art and more.
It has a two channel mixer, a microphone, digital tone generator (sine/noise), two tilt equalisers, effects loop and a power amp. Simple standard circuits are connected in a clever way to enable many kinds of drones, noises, pulsations and chaotic messes even without anything plugged in.
Features:
• Two inputs with normalised feedback and plenty of gain
• A digital tone generator with sine wave/noise + FM switch
• A ~1.2W power amp with fast and solid speaker connectors
• An electret microphone for electroacoustic feedback
• Effects loop with "send blend" and even more gain
• Auxiliary line output
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
It has a two channel mixer, a microphone, digital tone generator (sine/noise), two tilt equalisers, effects loop and a power amp. Simple standard circuits are connected in a clever way to enable many kinds of drones, noises, pulsations and chaotic messes even without anything plugged in.
Features:
• Two inputs with normalised feedback and plenty of gain
• A digital tone generator with sine wave/noise + FM switch
• A ~1.2W power amp with fast and solid speaker connectors
• An electret microphone for electroacoustic feedback
• Effects loop with "send blend" and even more gain
• Auxiliary line output
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| DIY Level: | Easy/Medium |
|---|---|
| Depth [mm]: | 110 |
| Height [mm]: | 25 |
| Material / Color: | Green FR4 |
| Power Input Type (pri.): | 9 - 12 Vdc / Barrel (5,5/2,1) |
| Width [mm]: | 200 |
