Noise Technology - PCBSNR
Product information "Noise Technology - PCBSNR"
The PCBSNR is a simple and low power portable noise device based on the Radical Chip (a collaboration between Max Wainwright and Dirty Electronics). 64 different chaotic digital algorithms make harsh noise, video game sounds, pulses and clicks, and more.
Two knobs and one button for random algorithm "select".

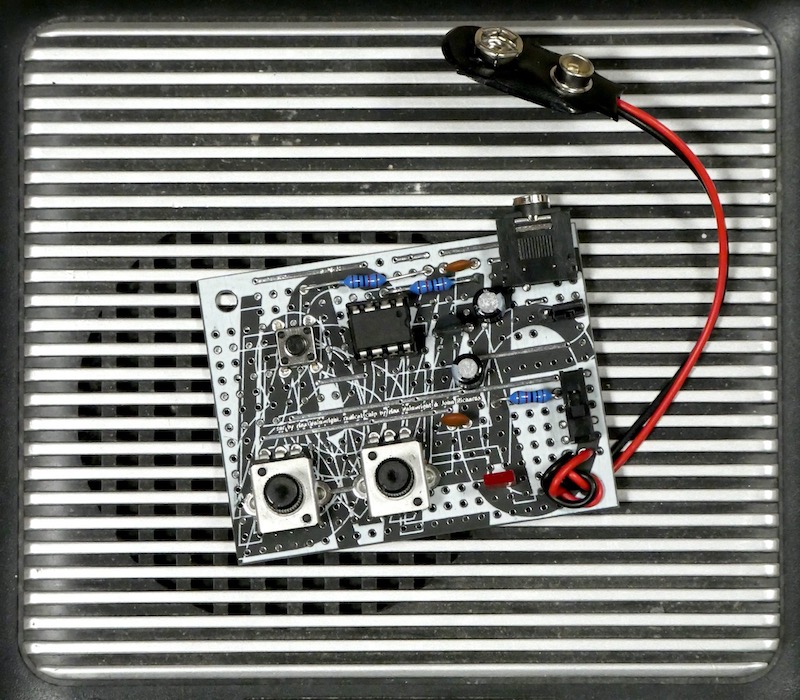

The design is based on the original stripboard version, and is thus very easy to modify and hack. All traces are visible, and cuts and front-side traces are labelled on the back of the circuit board.
Features:
• Two knobs that change the sound
• 64 algorithms with random select
• Patchable with pin or socket headers
• Jumper for DC coupling for FM etc
• Jumper for mono sum (for use with headphones)
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Two knobs and one button for random algorithm "select".
The design is based on the original stripboard version, and is thus very easy to modify and hack. All traces are visible, and cuts and front-side traces are labelled on the back of the circuit board.
Features:
• Two knobs that change the sound
• 64 algorithms with random select
• Patchable with pin or socket headers
• Jumper for DC coupling for FM etc
• Jumper for mono sum (for use with headphones)
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| DIY Level: | Easy |
|---|---|
| Depth [mm]: | 45 |
| Height [mm]: | 25 |
| Material / Color: | Black FR4 |
| Power Input Type (pri.): | 9 Vdc / Battery (6LR61) |
| Width [mm]: | 60 |
Manufacturer / Hersteller:
Max Wainwright
Blodstensvägen 2
75258 Uppsala
Sweden
info@noise.technology
