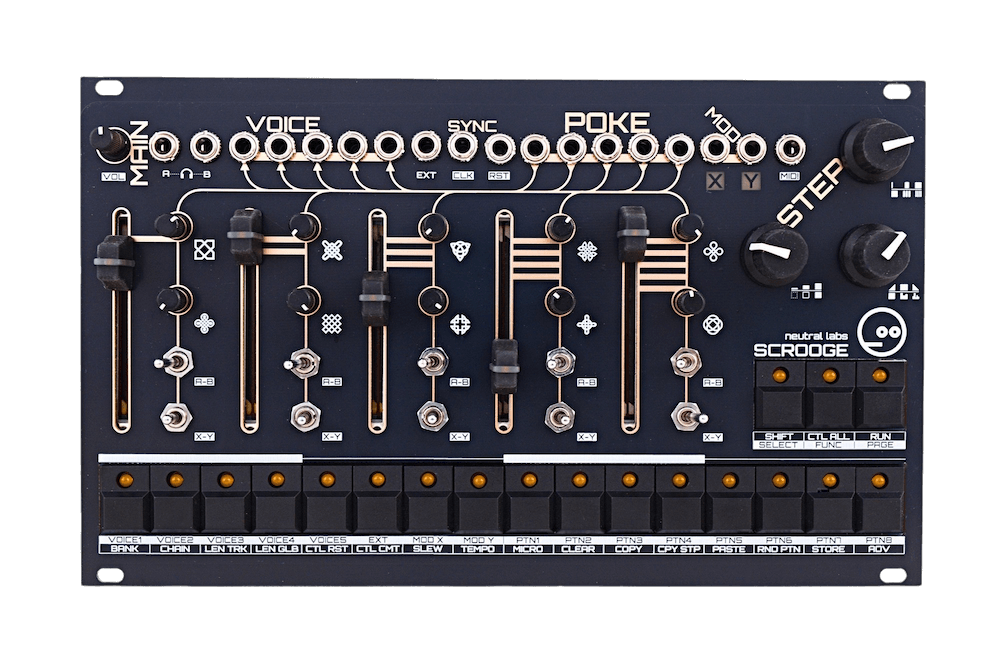

Neutral Labs - Scrooge (Eurorack)
Features:
• 5 distinct analog voices
• device can work passively without a power supply if sequenced from external gear
• each voice can be routed to either of 2 main outputs (headphone compatible)
• individual voice outputs
• individual voice CV inputs that respond well to audio signals
• 2 modulation tracks, individually routable to voices
• 2 modulation CV inputs
• onboard step sequencer
* parameter locking per step
* "control all" mode (change parameters for several steps and tracks at once), great for interactive playing
* arbitrary step length per track (up to 64 steps)
* generative algorithm builds random variations on patterns (available while performing), or creates random patterns from scratch
* pattern chaining (up to 32 patterns)
* stores up to 128 patterns in 16 banks
* microtiming
* CV slew limiter per track
• can sequence external gear
• sync output
• sync and reset inputs
• MIDI input (TRS type A)
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below. re
| Current draw +12 V [mA]: | 100 |
|---|---|
| DIY Level: | Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 42 |
| Format: | 3 U |
| Panel / Color: | Black FR4 |
