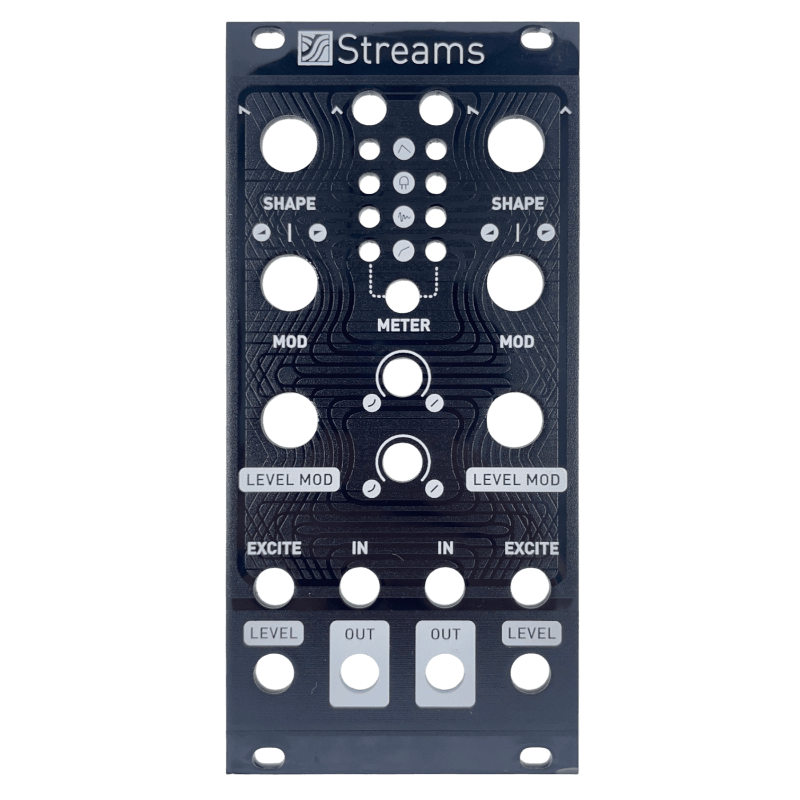

Magpie - Streams Panel
The panel is laser cut 1/16" aluminium, powder coated and sand blasted. The artwork is UV cured and printed on top.
DIY-Kit-Type:
Panel Only
| DIY Level: | NOT DIY |
|---|---|
| Width [HP]: | 12 |
| Format: | 3U |
| Panel / Color: | Black |
