LeafAudio - Field Amp
Product number:
100428
Product information "LeafAudio - Field Amp"
Field Amp is LeafAudio's solution for the world of body sound transmission: recording the world with contact microphones and geophones.
After releasing our Microphonic Soundbox we quickly noticed that we hit a blind spot. Many sound designers praised the clean and noise-free amplification of it, but had not necessarily use for the Soundbox itself. We heard you and developed a product on its own - the Field Amp. When you want the Soundbox amp without the actual box, Field Amp will be your new best friend! It's perfect for sound design work or musical applications in the studio, field recording, sound installations and possibly much more.
Quality amplification & power management circuitry. No noise or beeping can be heard or seen in the spectrum, not even above the hearing range, which would come into focus later during sound manipulation processes. You can record with high sampling rates, transpose the audio by a lot and enjoy your pure sound. Just the clear, pristine audio you want to capture with your contact microphones.
Optimised for travelling. The small unit is fully portable, light, offers many mounting possibilities. A professional case is included, which also can carry your contact mics, batteries and cables.
Body sound transmission vs. airborne sound. We are used to listen to the world from our own human hearing perspective. Sound travels through air before it hits the diaphragm of our ear or a microphone. By using contact microphones you switch the hearing perspective from listening to the outside of materials to listening from within materials. This shift is a massive trick for your sound design, which you should try! There is a whole world of sound that normally keeps hidden.
Field Amp is optimised for Hi-Z signals like contact mics and geophones. It also acts as an impedance converter with a powerful output signal. No loss of signal quality when you keep the wiring short between microphones and the input. The output is a strong signal and you don't have to worry about a few meters of cable.
We recommend using the shielded contact microphones by LeafAudio. Generally you can try contact mics with our pre-amp, as well as geophones, hydrophones, or guitar pickups. If you want to use geophones with XLR connnector like LOM, make sure to read the manual and buy the additional special adaptor cable! We also offer adaptors for the output side, please have a look here in the shop.
Features:
• Low-Noise pre-amp for contact mics, geophones etc.
• Case included
• 9V DC power supply or battery
• USB-C to barrel connector adapter cable included
• Up to ~50x adjustable gain

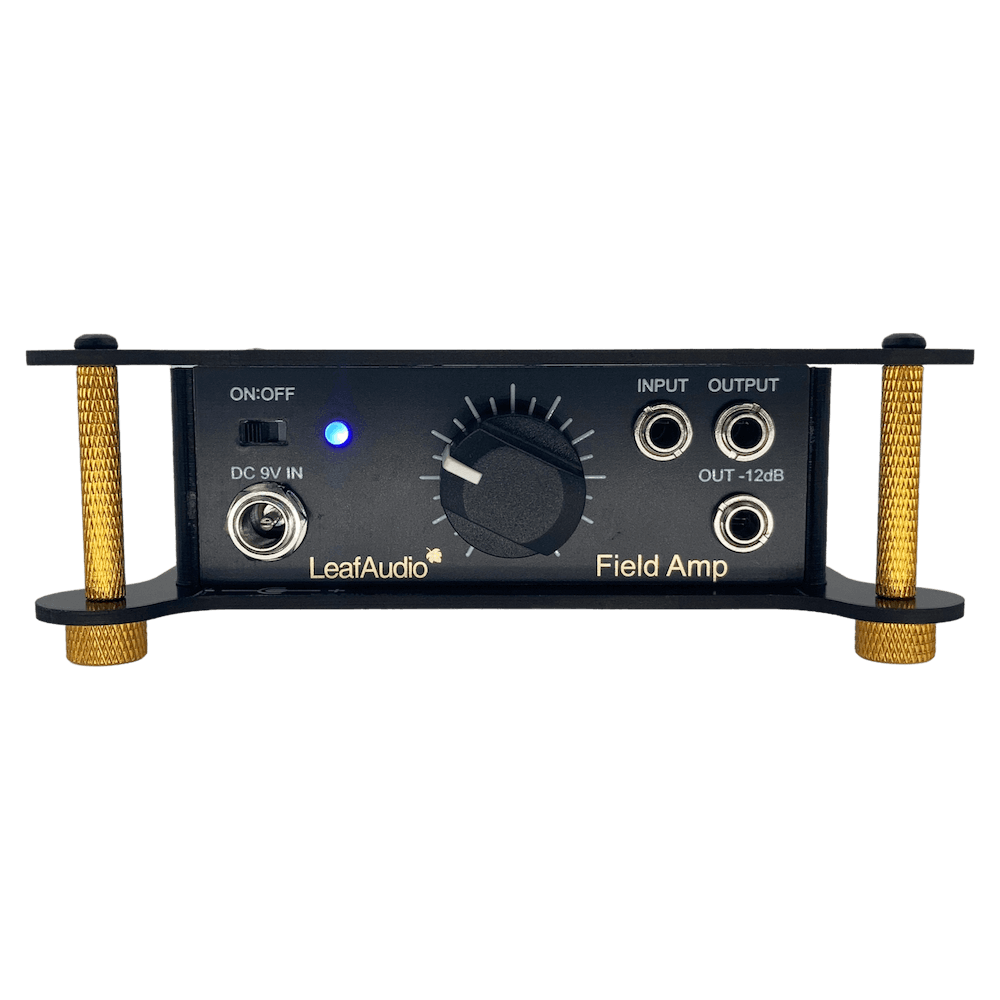

• 1 mono input
• 2 mono outputs (one -12 dB)
• All connections 3.5 mm (1/8") mono jack
• 12 x 12 x 3.4 cm
• 410 g (incl. case & USB-C to barrel cable)

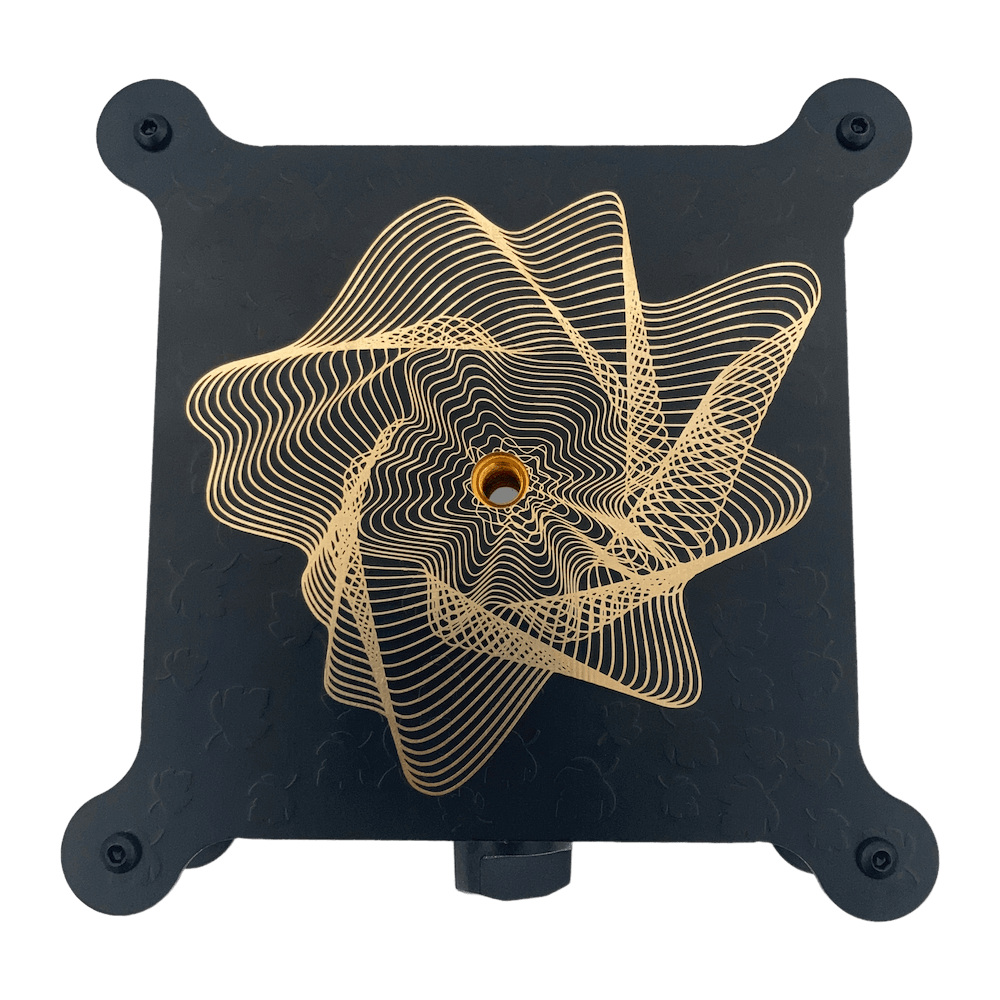

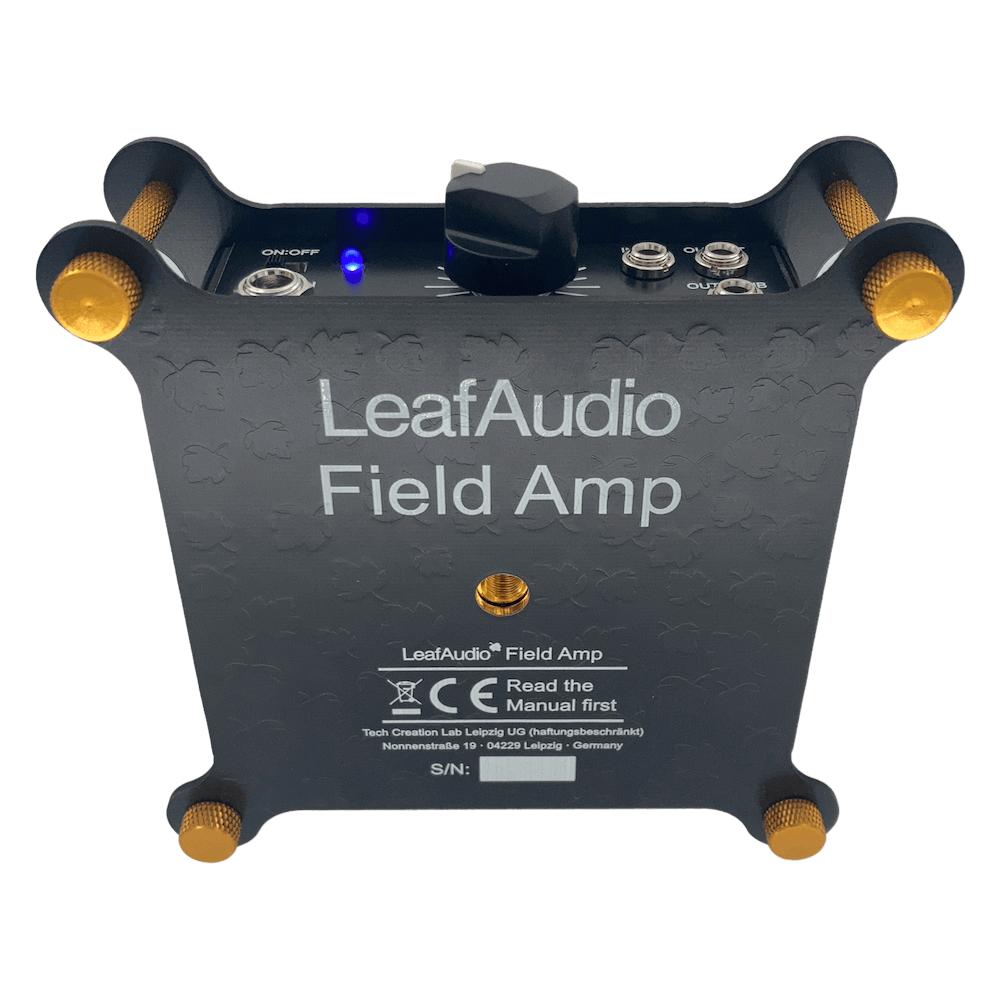

• 1/4"-UNC mount on top and bottom for camera tripods etc.
After releasing our Microphonic Soundbox we quickly noticed that we hit a blind spot. Many sound designers praised the clean and noise-free amplification of it, but had not necessarily use for the Soundbox itself. We heard you and developed a product on its own - the Field Amp. When you want the Soundbox amp without the actual box, Field Amp will be your new best friend! It's perfect for sound design work or musical applications in the studio, field recording, sound installations and possibly much more.
Quality amplification & power management circuitry. No noise or beeping can be heard or seen in the spectrum, not even above the hearing range, which would come into focus later during sound manipulation processes. You can record with high sampling rates, transpose the audio by a lot and enjoy your pure sound. Just the clear, pristine audio you want to capture with your contact microphones.
Optimised for travelling. The small unit is fully portable, light, offers many mounting possibilities. A professional case is included, which also can carry your contact mics, batteries and cables.
Body sound transmission vs. airborne sound. We are used to listen to the world from our own human hearing perspective. Sound travels through air before it hits the diaphragm of our ear or a microphone. By using contact microphones you switch the hearing perspective from listening to the outside of materials to listening from within materials. This shift is a massive trick for your sound design, which you should try! There is a whole world of sound that normally keeps hidden.
Field Amp is optimised for Hi-Z signals like contact mics and geophones. It also acts as an impedance converter with a powerful output signal. No loss of signal quality when you keep the wiring short between microphones and the input. The output is a strong signal and you don't have to worry about a few meters of cable.
We recommend using the shielded contact microphones by LeafAudio. Generally you can try contact mics with our pre-amp, as well as geophones, hydrophones, or guitar pickups. If you want to use geophones with XLR connnector like LOM, make sure to read the manual and buy the additional special adaptor cable! We also offer adaptors for the output side, please have a look here in the shop.
Features:
• Low-Noise pre-amp for contact mics, geophones etc.
• Case included
• 9V DC power supply or battery
• USB-C to barrel connector adapter cable included
• Up to ~50x adjustable gain
• 1 mono input
• 2 mono outputs (one -12 dB)
• All connections 3.5 mm (1/8") mono jack
• 12 x 12 x 3.4 cm
• 410 g (incl. case & USB-C to barrel cable)
• 1/4"-UNC mount on top and bottom for camera tripods etc.
| DIY Level: | NOT DIY |
|---|---|
| Depth [mm]: | 120 |
| Height [mm]: | 34 |
| Material / Color: | Black FR4 |
| Power Input Type (pri.): | 9 Vdc / Battery (6LR61) |
| Power Input Type (sec.): | 9 Vdc / Barrel (5,5/2,1) |
| Width [mm]: | 120 |
