Ginko Synthese - EZSQ
Product information "Ginko Synthese - EZSQ"

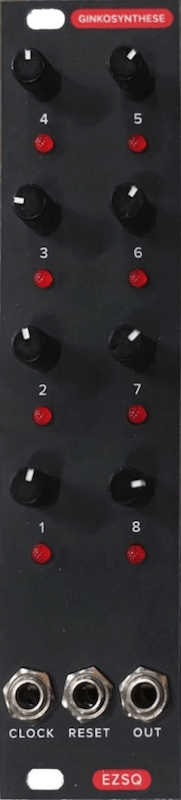

The EZSQ is a simple 8 step sequencer featuring a clock input, reset input and pitch output. It was designed to sit next to the VCSQ2 to give it even more power, but 8 steps sequencers are useful anywhere in all modular cases.
Features:
• 8 steps
• Clock input
• Reset input
• CV output
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Features:
• 8 steps
• Clock input
• Reset input
• CV output
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 13 |
|---|---|
| DIY Level: | Easy |
| Depth [mm]: | 25 |
| Width [HP]: | 6 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
