Frequency Central - Strips
Product number:
100640
Product information "Frequency Central - Strips"

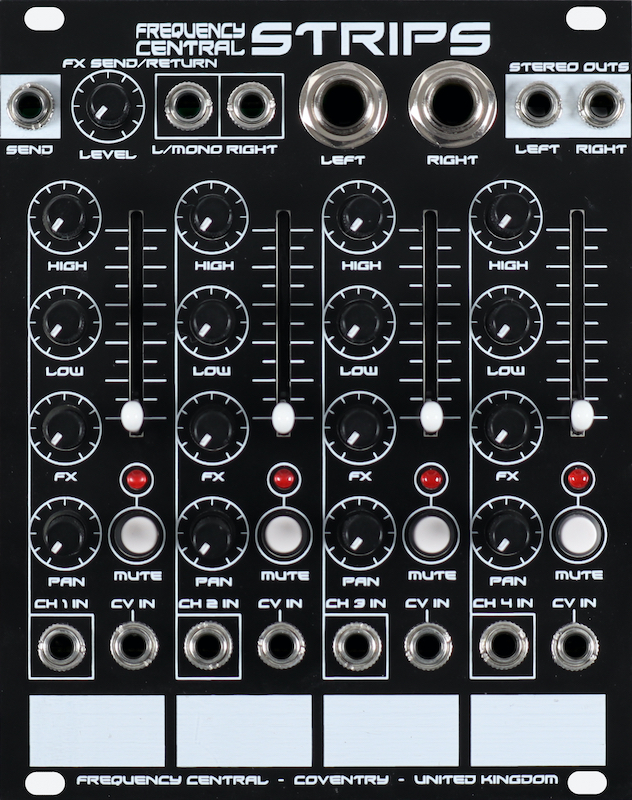

Expandable 4 channel VCA based stereo mixer with tone shaping and FX bus. Strips is also expandable! You can add a second strips, connected to the first via a 16 pin to 16 pin cable. The cable powers the second Strips and gives you 8 channels to play with. The second Strips accesses the first Strips FX bus. When using in expanded configuration, the FX send/return and main outputs for the second Strips are not available.
FX phase jumper – because not all FX that you might use in the FX loop are in phase with respect to their input/output. The phase jumper allows you to compensate for this and avoid weird phase cancellations.
Features:
• 4 x input channels, each featuring LEVEL, HIGH, LOW, FX send, PAN, MUTE and CV control of level.
• FX send and stereo return + FX phase jumper
• Left and Right Eurorack level inputs (2 x 3.5mm sockets)
• Left and Right line level outputs (2 x 6.35mm sockets)
• Scribble strips!
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
FX phase jumper – because not all FX that you might use in the FX loop are in phase with respect to their input/output. The phase jumper allows you to compensate for this and avoid weird phase cancellations.
Features:
• 4 x input channels, each featuring LEVEL, HIGH, LOW, FX send, PAN, MUTE and CV control of level.
• FX send and stereo return + FX phase jumper
• Left and Right Eurorack level inputs (2 x 3.5mm sockets)
• Left and Right line level outputs (2 x 6.35mm sockets)
• Scribble strips!
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 43 |
|---|---|
| Current draw -12 V [mA]: | 43 |
| DIY Level: | Advanced |
| Depth [mm]: | 39 |
| Width [HP]: | 20 |
| Format: | 3 U |
| Panel / Color: | Black Alu |
