Frequency Central - Seismograf BD
Product number:
100569
Product information "Frequency Central - Seismograf BD"

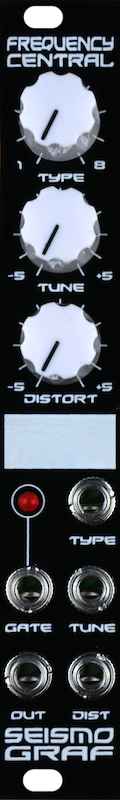

Versatile Drum module with 8 vintage sounds. Snare Drum variant. Seismograf is a PIC based drum module featuring coding by Jetroid. There is currently a choice of two PICs which may be used with Seismograf, "BD" and "SD". As you might expect, BD contains a range of 8 bass drums, while SD contains a range 8 of snare drums. The drum sounds are 10 bit encodings of some of our favourite electronic kits from yesteryear (see chart below). It is not possible for the user to load their own sounds onto Seismograf PICs, but there is a chance that we may release alternative drum sets as the years roll (!) by.
Features:
• Sound 1 808
• Sound 2 808
• Sound 3 909
• Sound 4 SDSV
• Sound 5 LM1
• Sound 6 DMX
• Sound 7 CR78
• Sound 8 DRUMTRAKS
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Features:
• Sound 1 808
• Sound 2 808
• Sound 3 909
• Sound 4 SDSV
• Sound 5 LM1
• Sound 6 DMX
• Sound 7 CR78
• Sound 8 DRUMTRAKS
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 30 |
|---|---|
| Current draw -12 V [mA]: | 2 |
| DIY Level: | Easy |
| Depth [mm]: | 35 |
| Width [HP]: | 4 |
| Format: | 3U |
| Panel / Color: | Black Alu |
