Products of Feedback Modules
DIY Modules made in Romania.

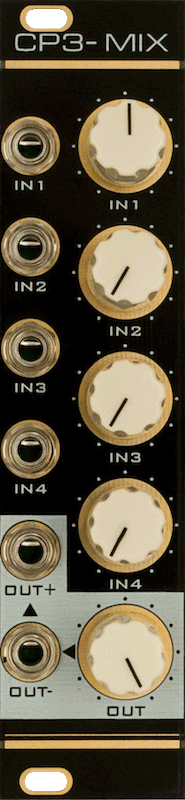

Feedback Modules - CP3-
only 2 left
THE CP3MINUS is the 6HP SMD variant of CP3+ Mixer, minus the MULTI section.Features:• 4 mono analog input• 4 input level pots• 1 dual level pot• One inverting and one non-inverting output jacks• Standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€41.65*
Feedback Modules - Distribution Mini
sold out at the moment
A mini power distribution board. This kit contains all the parts needed to build a complete Distribution Mini. There's no build guide available from the manufacturer, but it is really easy to build it. If you have questions, please email Freedback Modules!DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€14.50*

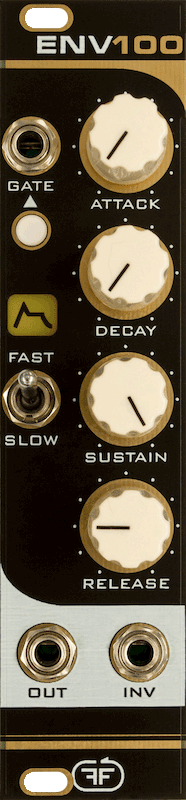

Feedback Modules - ENV-100
available
This is probably the fastest envelope generator in Modularland.Why? Because it is based on the fastest one. The classic Japanese modular from the seventies everyone loves.Features:• 4 control pots:Attack, Decay, Sustain, Release• 1 gate switch: triggers ADSR cycle• 1 time switch: switches between fast and slow envelope times• one normal and one inverting output jack 10V peak• standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€47.90*

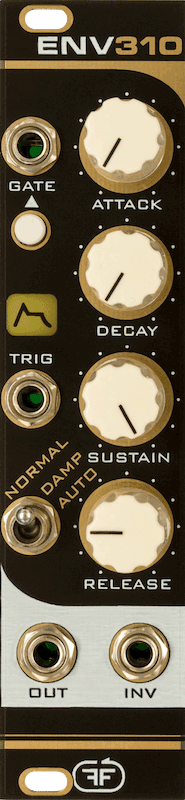

Feedback Modules - ENV-310
available
This is an envelope generator based on the SMD AS3310. The AS3310 is a modern recreation of the classic Curtis CEM3310 chip, used in many famous mono and poly analogue synth from the eighties. We took the best ideas from all the classic 3310 circuits and tried to squeeze the maximum from this fantastic chip. The MODE switch takes this module beyond a simple ADSR type envelope generator.It can work as:• NORMAL - a conventional ADSR envelope,• DAMPED - an ADRR piano envelope approximation• AUTO - a short gate will cycle the envelope shaper through a complete ADR envelopeIt has an additional TRIGGER input which can be used for generating multiple peak envelopes.Features:• 4 control pots:Attack, Decay, Sustain, Release• 1 gate switch: triggers ADSR cycle• 1 mode switch: Normal (ADSR),Damp (ADRR),Auto (ASR)• 1re trigger input• standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€39.90*
Feedback Modules - ENVF
available
This is an envelope follower based on a classic module from the seventies but with some improvements to suit modern needs.The IN signal is routed to the envelope follower circuit and also to a THRU output, so the original signal is also available for external processing.The envelope follower has three controls, a switch to select response time (fast, medium, slow), a pot to adjust GATE threshold and a pot to adjust the envelope CV level.This little module will help you shape the timbre and/or the level envelopes of your sounds. From dynamic envelope filtering to compressor like side chaining there are lots of possibilities to mangle your audio.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€53.90*

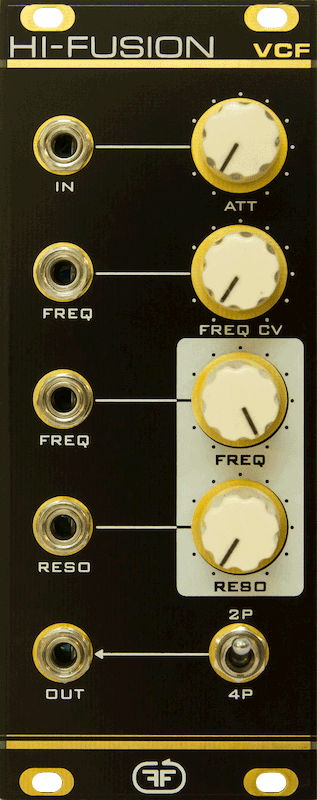

Feedback Modules - Hi-Fusion VCF
only 2 left
HI-FUSION is a remake of the classic Polyfusion from the 70s with some improvements.It is a low pass OTA VCF based on the well known LM13700 ic.We chose to make this circuit because it's v/oct stable, and the trimmers allow to calibrate it properly.It has a switch for 2 pole and 4 pole configuration, each with it's own character and timbre.This design produces nice sounding filter fm results.Features:This kit contains all the parts needed to build a complete HI-FUSION module.• 1 audio input: IN• 1 audio level pot: ATT• 3 cv inputs: FREQ(with attenuator), FREQ (for v/oct), RESO• 1 cv level pot: FREQ CV (attenuator for FREQ cv input)• 2 vcf control pots: FREQ (frequency) and RESO (resonance)• 1 configuration type switch: 2P and 4P (2pole or 4 pole)• 1 output: OUT• standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€60.00*
New
Feedback Modules - JP8 VCF
available
The JP8 VCF module is a versatile and authentic filter offering 2-pole (12 dB/oct) and 4-pole (24 dB/oct) low-pass modes, along with a high-pass filter. Built with AS3109D and AS662A ICs, WIMA polypropylene capacitors, and 2SK30ATM-GR J-FET transistors, it ensures high-quality performance.Key features include two mixed signal inputs, independent outputs for 2-pole and 4-pole modes, and an alternate output with selectable modes via a switch. CV inputs operate at 0-5Vpp, with attenuation available for 10Vpp signals through the CV1 pot.This module is a collaboration between Feedback Modules and CMS-LAB.Features:• AS3109D and AS662A, ALFA RPAR modern identical to the original IC clones• High Pass Filter made with AS662A• WIMA polypropylene capacitors• Selected 2SK30ATM-GR N-channel J-Fet transistor• Two mixed signal inputs• Independent outputs for 2-pole, 4-pole and an alternate output with selection of modes from a switch• The CVs are 0-5Vpp, 10Vpp CVs can be attenuated with the CV1 pot.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€167.00*
New
Feedback Modules - Lazer Phazer
available
Lazer Phazer it's at his core 2xSystem7xx phaser with a lot of addons.It can work as a stereo phaser, as a mono BI-Phaser, as two totally independent phasers, or as a 16stages phaser in series mode. Thath's not all, the LFOs of the phasers can work idendepently or linked. In inverted mode for stereo phase galore. The feedback can be modulated by internal LFOs, external CVs or both of them in the same time.Kits have 16 x 2SK30A fet transistors matched and selected from new old stock, so the retro sound it's totally there.This module is a collaboration between Feedback Modules and CMS-LAB.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€215.00*
Feedback Modules - LFO-10
available
This little module is an evolution of the LFO of the famous MS monophonic synth from the seventies, adapted to Eurorack.Features:• 2 control pots for FREQUENCY and WAVEFORM• 1 FREQUENCY RANGE switch: LOW and HIGHLOW - 18mHz (55sec)- 0,7Hz (81,4sec)HIGH - 0,63Hz (1,6sec) - 24Hz (42msec)• 2 outputs: SQUARE 0/10V Vpp and TRIANGLE -5/5V Vpp• Standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€30.90*
Feedback Modules - LFO-100
available
Complex analogue LFO from a vintage Japanese modular system!We injected some steroids in this LFO and the results are lots of features.Not only can you use 8 individual waveform outputs, but you can also use thealternative two linked outputs for which you can select any of the waveforms.This alternative output has a VCA so you can fade in the LFO signal in adefined duration with a potentiometer.The stair-like waveforms can be changed from 16steps, 8steps, 4steps or mangled.All of these are seasoned with cv control and waveform reset.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€83.90*
Feedback Modules - LFO-20
available
Complex analogue LFO in just 4HP!Waveshaped Square and Triangle output plus extra inverted Triangle output.Reset and gate function, multiple LFOs can be chained for complex gates and CVs.Very long LFO time on minimum setting, more than 1 min.Features:• 2X control pots for FREQUENCY and WAVEFORM• 1X FREQUENCY RANGE switch: LOW and HIGHLOW - 4,7mHz (210sec/3.5min) - 0,625Hz (1.4sec)HIGH - 183mHz (6sec) - 25Hz (40msec)• 1X MODE switch : STOP and RESET• 1X input jack : RESET• 2X outputs : SQUARE 0/10V Vpp and TRIANGLE -5V/5V VppDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€53.50*

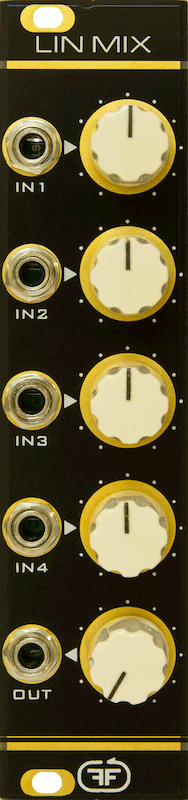

Feedback Modules - LinMix
available
LinMix is a compact 6HP mixer suitable for audio signals and modulation CVs. It is DC coupled.Features:• 4 audio/cv inputs• 1 audio/cv output• 4 input volume/gain pots• 1 output level pot• Standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€28.00*

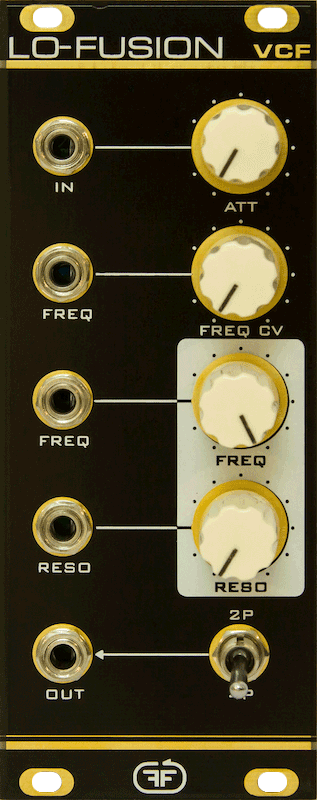

Feedback Modules - Lo-Fusion VCF
sold out at the moment
LO-FUSION is a remake of the classic Polyfusion from the 70s with some improvements. It is a low pass OTA VCF based on the well known LM13700 IC. We chose to make this circuit because it's v/oct stable, and the trimmers allow to calibrate it properly. It has a switch for 2 pole and 4 pole configuration, each with it's own character and timbre. This design produces nice sounding filter FM results.Features:• 1 audio input: IN• 1 audio level pot: ATT• 3 CV inputs: FREQ(with attenuator), FREQ (for v/oct), RESO• 1 CV level pot: FREQ CV (attenuator for FREQ cv input)• 2 VCF control pots: FREQ (frequency) and RESO ( resonance)• 1 configuration type switch: 2P and 4P (2pole or 4 pole)• 1 output: OUT• Standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€60.90*
Feedback Modules - Multi
available
Multi it's an 8 jack unbuffered multiple with front panel in black/gold Feedback style.It's separated in 2x4 sections with jack's 4 link going to jack 5.So you can use it as two independent multiples or one single 7 jack multiple.It uses PJ301BM jack, for a better strength of the module.This kit contains all the parts needed to build a complete MULTI module.No manual needed. All parts included, only through-hole (THT) parts to solder, no SMD parts.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€15.00*
Feedback Modules - PRE BX
sold out at the moment
Sound Design channel strip based on a famous late eighties small mixer used by many electronic musicians for the techno sound of the nineties.Features:• 1 audio input• 1 gain pot• 2 EQ pots: low and hi• 1 output level pot• 1 audio outputDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€46.50*
Feedback Modules - PRE CR Module
only 1 left
Sound Design channel strip based on a famous late eighties small mixer used mostly for the well known TB303 distortion sound.Features:• 1 audio input• 1 input gain potentiometer• 2 EQ potentiometers: low and hi• 1 output level potentiometer• 1 audio output• Standard 10 pin euro power (+12V / -12V) (works also at +15V / -15V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€47.60*
Feedback Modules - PRE KM
available
Sound design channel strip based on a famous late seventies small mixer used by many electronic music bands.Features:• 1 Audio input• 1 Gain pot• 2 EQ pots - Low & Hi• 1 Output level pot• 1 Audio outputDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€53.50*
New
Feedback Modules - Punk
available
This module is the result of almost a year of brainstorming to make a multipurpose sound destruction module.After checking several classic distortion/fuzz/overdrive/clipping circuits, we decided to blend several ideas in one module and give you enough options, so you can mangle your sound to your taste.The circuit blends direct clean sound with two different type of distortions.One circuit is a FET preamp based on a classic circuit of a mini portable cassette recorder & mixer combo from the eighties. It has variable gain and level control.The other circuit is based on classic guitar pedal distortion/fuzz with switchable diode or MOSFET distortion. This circuit also has variable gain and level control.The two distortion circuits are followed by a Baxandall two band equaliser (the one from our PRE-KM module) to shape the distorted sound to your pleasure.Finally the mangled (double distorted/clipped equalised) sound is blended with the clean sound for the right balance.This module sounds great on drums, bass synth or even acoustic sources. Enjoy your new sound shaping toy.On the technical side we took great care for the PCB design and although this is an SMD circuit board we decided to use through hole parts where we considered it matters (some capacitors and the FETs).DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€90.00*
Feedback Modules - smArTT Verter
available
The smArTT Verter is a simple but very effective utility module for scaling the level and polarity of audio and CV signals.Features:• 1 audio/CV input• 1 input level potentiometer• 1 signal polarity switch (+/-)• 1 DC offset potentiometer (+/-5V or +/-10V)• 3 output jacksDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€27.50*
