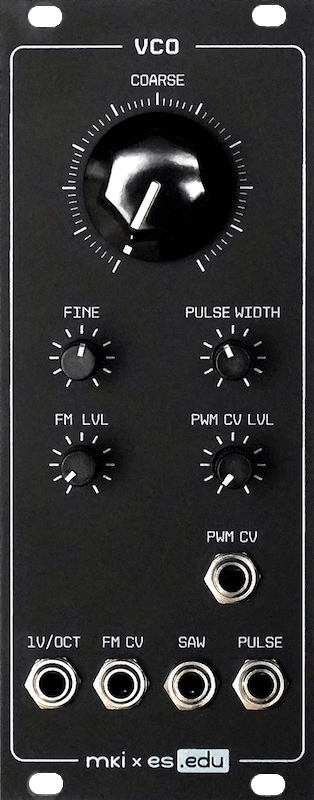

Erica Synths - EDU DIY VCO
Product number:
100279
Product information "Erica Synths - EDU DIY VCO"
This is an easy to build VCO with a really extensive documentation and explanation of the circuit. Excellent learning kit!
The mki x es.EDU VCO is the first educational DIY kit in this series. It is an analog sawtooth-core oscillator with a reasonably accurate volt/octave tracking, made from just a handful of basic components. It features sawtooth and pulse outputs as well as 1V/oct, FM, and PWM inputs.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The mki x es.EDU VCO is the first educational DIY kit in this series. It is an analog sawtooth-core oscillator with a reasonably accurate volt/octave tracking, made from just a handful of basic components. It features sawtooth and pulse outputs as well as 1V/oct, FM, and PWM inputs.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 7 |
|---|---|
| Current draw -12 V [mA]: | 7 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 10 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
Manufacturer / Hersteller:
Erica Synths, SIA
Andrejostas Str. 43
1045 Riga
Latvia
