Erica Synths - EDU DIY VCA
Product number:
100274
Product information "Erica Synths - EDU DIY VCA"
This is an easy to build VCA with a really extensive documentation and explanation of the circuit. Excellent learning kit!

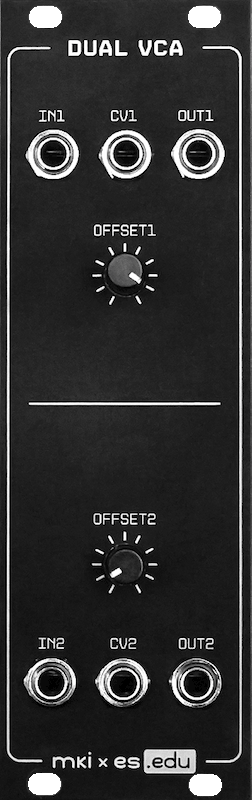

mki x es.EDU VCA is a simple yet efficient dual VCA for your eurorack system. It has DC-coupled inputs so you can use the VCA both for audio and CV signals. Inputs of the second VCA are normalled to the first one which allows to split the audio signal to both VCA or control both VCAs with a single CV. A 60-page build manual explains the electronics behind the module and provides step-by-step build instructions.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
mki x es.EDU VCA is a simple yet efficient dual VCA for your eurorack system. It has DC-coupled inputs so you can use the VCA both for audio and CV signals. Inputs of the second VCA are normalled to the first one which allows to split the audio signal to both VCA or control both VCAs with a single CV. A 60-page build manual explains the electronics behind the module and provides step-by-step build instructions.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 7 |
|---|---|
| Current draw -12 V [mA]: | 7 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 8 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
