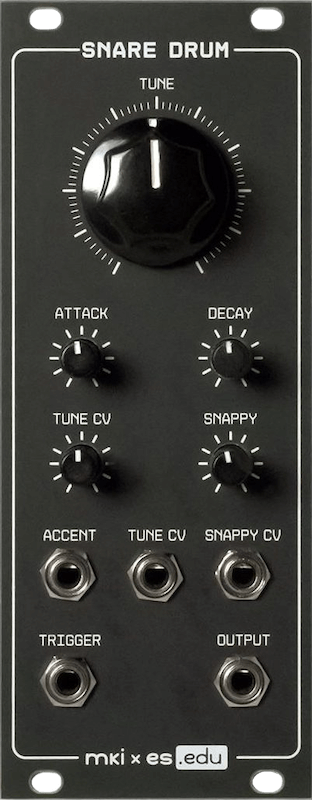

Erica Synths - EDU DIY Snare Drum
Product number:
100038
Product information "Erica Synths - EDU DIY Snare Drum"
No drum machine is really complete without a punchy, snappy Snare Drum. Together with the Kick, it creates the rhythmic backbone for most grooves. So for our percussion-focused second season of educational DIY kits, we knew we had to come up with a Snare circuit that would complement the Kick and Hi-Hat we’ve already released. After a lot of fine tuning, here’s what we came up with: introducing mki x es.edu DIY Snare Drum.
Features:
• Manual and CV controlled Tune
• Tune CV depth attenuator
• Manual Attack and Decay control
• Manual and CV Snappy (noise and tone crossfade) control
• Accent input
We - Erica Synths and Moritz Klein – have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.
NB! All kits in these series are simple and come with extensive user manuals which can be downloaded separately, therefore we will not provide customer support in case your DIY build fails to function or similar.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Features:
• Manual and CV controlled Tune
• Tune CV depth attenuator
• Manual Attack and Decay control
• Manual and CV Snappy (noise and tone crossfade) control
• Accent input
We - Erica Synths and Moritz Klein – have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.
NB! All kits in these series are simple and come with extensive user manuals which can be downloaded separately, therefore we will not provide customer support in case your DIY build fails to function or similar.
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 11 |
|---|---|
| Current draw -12 V [mA]: | 12 |
| DIY Level: | Easy/Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 10 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
