4x Nut Tool Set

available

Forget scratched panels! This set includes tools for the 4 most common nuts in the world of Eurorack!1) Thonkiconn / Knobbicon 8mm knurled nut2) Thonkiconn / Knobbicon 8mm hex nut3) Befaco Bananuts / Cliff FC681374V / PJ3410 split nut4) Doepfer (Cliff CL1384 / S6-BB) hex nuts

€21.90*

6,3 mm TRS Connector PJ6110

available

A very reliable 6,3 mm TRS (stereo) connector with switching function. Slimline version, very useful when space is limited, for example in DIY pedals or synths. Quite similar to the Neutrik slimline ones. PCB mount. Nuts are included.

€0.75*

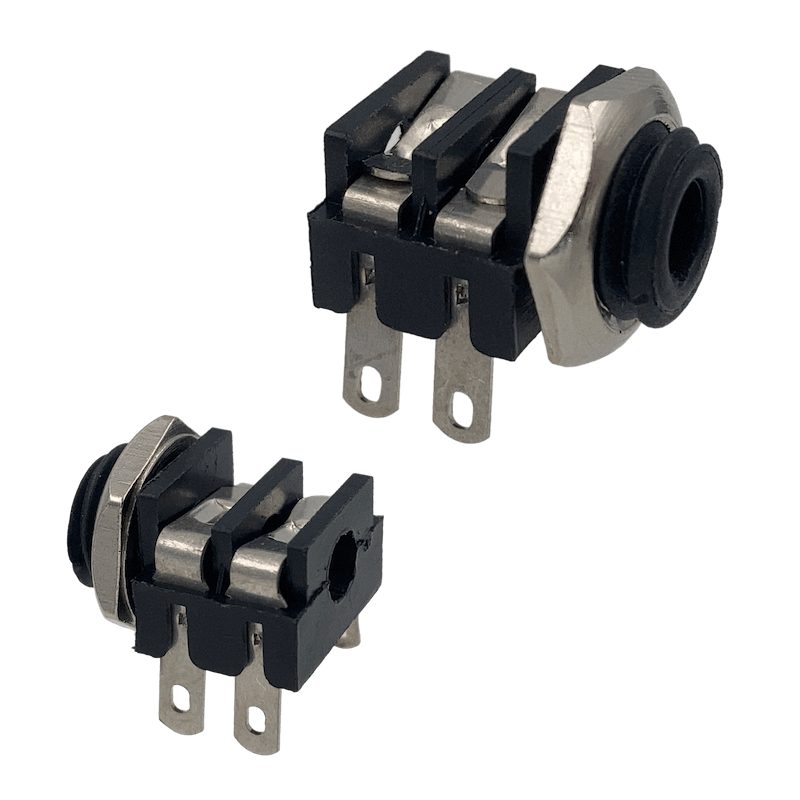

Cliff S6/BB (CL1382) Solder-Lugs

available

Cliff S6/BB (CL1382) 3,5 mm mono connector for Doepfer replacement with solder lugs. With switching function, print contacts. This replaces the original Doepfer ones and they are definitely less wobbly than the really old Doepfer ones! Nice feeling.

€1.49*

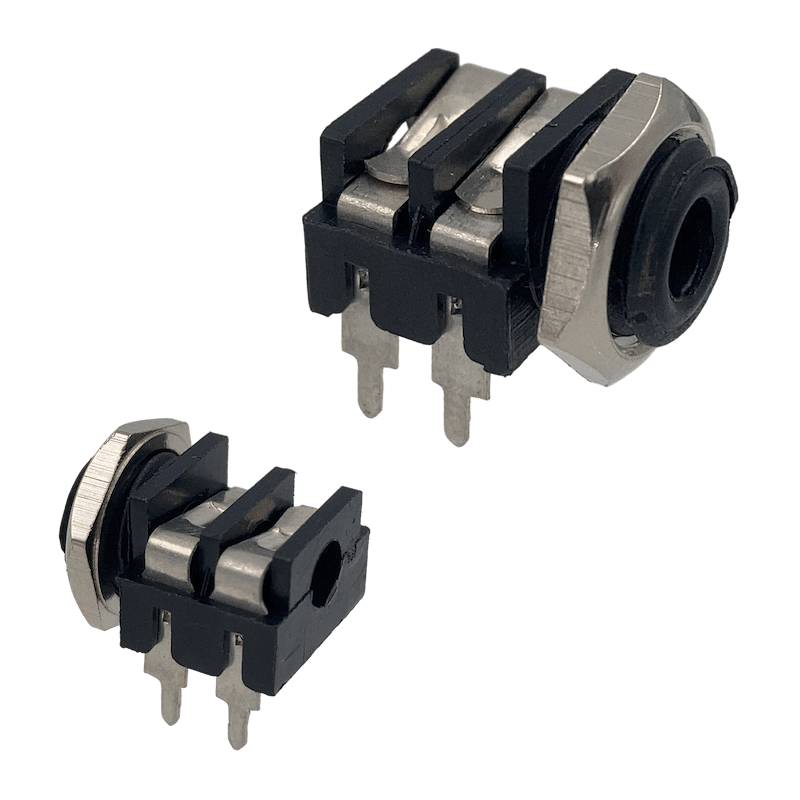

Cliff S6/BB PC (CL1384) PC-Mount

available

Cliff S6/BB PC (CL1384) 3,5 mm mono connector for Doepfer replacement for PCB-mount. With switching function, print contacts. This replaces the original Doepfer ones and they are definitely less wobbly than the really old Doepfer ones! Nice feeling.

€1.49*

Hex Bit Holder

available

Holder for 4mm hex bits. You can use this one with Exploding Shed's Knurled Nut Tool Pro.

€4.90*

Hex Nuts

available

Silver Hex Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags 20 and 50 pieces.Available variations:• Hex Nuts• Knurled Nuts• Smooth Nuts

€1.10*

Details

Knurled Nut Tool Pro

available

This is a pro-version of our tool for the M6 knurled and smooth slotted nuts for Thonkiconn and similar audio connectors used in Eurorack. The vinyl tool body comes with a 4 mm hex bit, which you can use with most standard handles available from hardware stores. Compared to the original tool from our 4x Nut Tool Set this makes the assembly much easier when you have to assemble many nuts in a row. It's a good investment for small maker brands and professional DIYers.The tool is made for hand-operation, not for machines like electric drills or electrical screwdrivers, as this might damage the tool or steel pins.It comes equipped with 2 inserted hardened steel pins plus 6 replacement pins. The tool features 6 holes in total, means 2 alternative pin positions. If pins break after time, you pull them out with a small precision pliers and replace them with new pins using the other holes.The tool works for PCB panels and also thicker aluminum panels. The handle is not part of the product and has to be purchased separately.• For knurled and smooth nuts• Works with M6 nuts (Thonkiconn...)• Feat. 4mm hex bit for standard handles• Replacable hardened steel pins• Incl. 6 replacement pins• 2 alternative pin positions for maximum lifetime

€25.00*

Knurled Nuts

available

Silver Knurled Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags of 20 and 50 pieces.Available variations:• Hex Nuts• Knurled Nuts• Smooth Nuts

€1.10*

Details

Knurled Nuts Black

available

Black Knurled Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags of 20 and 50 pieces.

€5.95*

Details

PJ3410 Stereo

available

PJ3410 is a 3,5mm TRS (stereo) connector with switching function for the tip contact and a replacement for Cliff FC681374V. It features solder lugs with hole. Dimensions: with 9mm, height 10,5mm, lenth (body) 13mm. Needs an 8mm hole in the front panel. You can use it as a mono jack (when your PCB configuration demands it) and simply pull out pin 2 (ring).Split nuts are included!

€0.65*

Smooth Nuts

available

Silver Smooth Nuts M6 x 0,5 mm. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags 20 and 50 pieces.Available variations:• Hex Nuts• Knurled Nuts• Smooth Nuts

€1.10*

Details

Thonkiconn Mono WQP518MA

available

Thonkiconn is the standard audio connector in Eurorack. 3,5 mm mono connector with switching function for PCB mounting. Dimensions: effective total body height 10mm, threading 4,5 mm, needs a 6 mm hole in the panel.Older versions were named PJ398SM and PJ301M-12. The new version is called WQP518MA, is more reliable and has a longer lifecycle. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!

€0.55*

Details

Thonkiconn Stereo WQP419GR

available

Stereo version of Thonkiconn, the standard audio connector in Eurorack. 3,5 mm stereo connector without switching function for PCB mounting. Dimensions: effective total body height 10 mm, threading 4,5 mm, needs a 6 mm hole in the panel. The stereo version is 1 mm wider than the mono version.The older version was named PJ366ST. The new version is called WQP419GR. Another difference is that the older ones had a semi-round tab (the part between body and threading, where the front panel will sit on) and the new ones have a rectangle tab, but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!

€0.57*

Details

Washers

available

Silver washers. They can be used for Thonkiconn and similar 3,5 mm audio connectors. Available in bags of 20 and 50 pieces. Measurements 6,1 mm * 8,5 mm * 0,5 mm

€1.10*

Details

WQP518MA-BM

available

It is one of the standard audio connectors in Eurorack. It is also knowns as "Flight of Harmony" or "Erthenvar" connector. 3,5 mm mono connector with switching function and 2 GND pins for PCB mounting. Dimensions: effective total body height 11,5 mm, threading 4,5 mm, needs a 6mm hole in the panel.An older version was named PJ301BM, the new version is called WQP518MA-BM now, is more reliable and has a longer lifecycle. Like the newer Thonkiconns it has a rectangle tab instead of semi-round one (the part between body and threading, where the front panel will sit on) but the height is completely the same. Footprint and dimensions are the same.Don’t forget to buy nuts separately, they are not included!

€0.57*
