The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.THIS PRODUCT IS ASSEMBLED AND NO DIY!The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments Eurorack modules, fun physical modeling algorithms, and lots of handy utilities.All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.MetaModule PluginsIf the 160+ built-in module aren’t enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. We have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. Our licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.Mapping Knobs and JacksThe MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.ExpandersThere are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.Under the HoodThere are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.Features:Patches• Patches are loaded from microSD Card, USB drive, or via the Wifi expander• Patches can be optionally saved onto internal flash memory• Create patches using VCV Rack or directly on MetaModule• Patches can be given a name and descriptionMappings• Map each physical knob to up to 8 virtual knobs• Set range and offset for each mapping, including inverted control• Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving• Map physical jacks to virtual jacks, seamlessly making splits/mults• Add or edit modules, cables, and mappings in real-time while the patch is playing• Create alias names for mappings like "Kick Drum Level"Interface• Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture• Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time• Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set• Module View shows just one module and lists the names of each jack, knob, and control legibly• Mapping View lets you adjust details of a knob mapping• Adjust styles and visual preferences to your liking• Save, rename, duplicate, and delete patches• Firmware updater and plugin loader read from microSD Card or USB driveHardware• 12 Knobs• 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 2 Gate inputs• USB-C jack: MIDI Host or MSC (External drive) Host• microSD Card slot• Internal Flash RAM for additional patch storage• Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor• 512MB DDR3 533MHz RAM• Bare-metal operation for fast startup and low latencyDIY-Kit-Type:Assembled unit. This is completely ready to use, nothing to solder or to assemble.
Following our ADDAC103 T-Networks this new module is inspired by its simplicity. This is a 4 voice Square Oscillator with VCA, FM switch and a slew decay for the incoming Trigger IN. All voices are then sent through a Multimode Filter.Each voice has its own VCA input where any input is accepted (Trigger, Gate, CV). The [DECAY] controls the slew decay applied to the incoming signal, if [DECAY] is fully anti-clockwise then it works as a Mute. The [FM ON] switches activate/deactivate the FM input coming from the previous voice: Voice 1 FM comes from voice 4, voice 2 FM comes from voice 1, and so on, so you can FM all of them in a FM loop.All 4 voices are summed and sent through a filter with controls over [CUTOFF] with an Attenuverter for the CV input and [RESONANCE]. Three filter outputs are provided [LOWPASS], [BANDPASS] and [HIGHPASS]The [EXTERNAL IN] input can be routed through a jumper on the back of the module allowing the incoming signal to go to:1. the filter input for processing an external audio source;2. all of the 4 voices Frequency control allowing for some experimental CV control over pitch of all 4 voices at the same time (due to the specificities of the circuit and to keep the module at a low price these inputs are not calibrated to 1v/octave).DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
We started this module with the idea of developing a complex drum source. However, somewhere along the process we noticed how much better it performed as a synth voice and simply embraced this lucky accident.It features a VCO with a [FREQUENCY] and [FINE TUNE] knob plus a dedicated CV Input and Attenuator knob (tunable over 4 octaves). The VCO waveform output is achieved by selecting either a Triangle or Saw through a switch. The selected waveform can then be mixed/balanced against the square wave. The resulting mix is then sent to the Filter.The Filter features a [CUTOFF] and [RESO] resonance knob plus a Cutoff CV Input and Attenuverter knob.A 3 position switch is used to select the filter type: Highpass, Bandpass or Lowpass. The resulting output is then sent to the VCA.The VCA features an Input with [INPUT GAIN] knob which at maximum can amplify the incoming signal by a factor of 2.This is a very important control, it accepts any signal Trigger, Gate or CV. Whatever input is plugged in the signal is then fed through an AD with a very short attack and controllable decay through the [VCA DECAY] knob plus the CV Input and Attenuverter knob. The resulting slewed signal is then used to control the VCA gain. This signal is also sent to the CV OUTPUT as well as the LED monitor.The Accent input adds to the Input signal creating a different amplitude output. The CV OUTPUT is normalled to the Frequency and Cutoff inputs.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
While developing our ADDAC105 4 Voice Cluster module we made a new multimode filter to place after the summing mix stage. We were so pleased with its sound that decided to release it as a dedicated filter.To make it more interesting we duplicated its circuitry to be able to use it in a stereo signal path.To make it more versatile we added a switch to set the working mode from Stereo to Dual Mono where both filters can be used independently.In Stereo Mode the Left Cutoff is used to control the Right Cutoff.In this case the Right Cutoff Knob and CV Input are simply bypassed and will have no impact on the Right Channel operation.This allows immediate sync of both filter frequencies when the Stereo position is engaged.Optionally there’s a jumper in it’s back that, when placed, connects the Right Controls back to the Right CV control allowing the possibility to control the offset of the Right Channel Cutoff.Resonance is independent on both Modes and still has to be set manually to match both channels.Both the Audio and CV inputs are normalled from the Left into the Right channels.As standard plugging any input to the Right channels removes this connection.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
The TILT EQ concept was first introduced in the 1970's by Quad Ltd, featured on the company’s model 34 preamplifier. The tilt control tilts the frequency spectrum of the audio signal by simultaneously boosting the treble and cutting the bass frequencies, or vice versa, making it a simple to use but powerful EQ.As stated by Quad Ltd, it was designed to produce a very gradual change in balance across the musical spectrum without changing the overall subjective level. This gradual fall from Bass to Treble, or vice versa, means there’s no sudden change and hence no ‘coloration’ added to the sound, the sound will remain entirely natural but with a slight added bottom or high end. In practice, it rotates most of the audio-range frequency response around a 1kHz axis, so as to change the overall balance of the sound from warm to cool without affecting either the apparent volume or the "color" of the sound.Here we introduce this idea into the modular world in a stereo configuration. CV input with attenuverter was added for the Tilt control as well as a Spectral Motion switch that allows stereo spectral matching or inverted spectrum use of the Tilt control: Left = Right matches both channels direction, i.e. when left channel is tilted to the low end the right channel will also be tilted to the low end. Left ≠ Right inverts the Right channel spectrum, i.e. when left channel is tilted to the low end the right channel will be inversally tilted to the high end, or vice-versa. This possibility is extremely interesting when applied as a stereo effect, in other words, a spectral EQ panner.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Here's our new filter inspired by the original WASP Filter.Features:• Four diferent filter types: Low-Pass, Band-Pass, Notch-Pass and High-Pass with independent audio outputs.• Cutoff features a voltage-controlled cv input with a dedicated cv attenuator pot.• Two switches selects different Resonance clipping paths: no clipping / diodes and Resonance depth: high / low.• The Main output filter type can be selected through a 4 position switch.• The Main output circuit features a Distortion/Fuzz circuit that adds extra harmonics to the filtered audio.• Phase switch selects the Main output phase polarity.• One Led monitors the audio signal of the main output.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
cDVCA or class-D VCA is a new kind of VCA based on an entirely novel concept that is inspired from class-D amplification technology. This is not a transparent VCA and brings a lot of character to the sound.The first VCA that tracks 1V/octConcept: The input signal is turned into an ultrasonic PWM signal (~34kHz). The PWM is scaled to the desired amplitude and then filtered back down to the original signal.The twist: The PWM frequency can be lowered down into the audio spectrum and the frequency can be controlled via its 1V/oct input allowing for crazy waveshaping that tracks your melodies.The drive controls an innovative clipping method that does not rely on overdriving any circuitry and therefore results in distortions with a very defined character.The signal then goes into a 1 pole VCF/tone circuit that allows to keep things under some amount of control as the harmonics produced by this module can be very aggressive.With no input the module generates a simple square wave and therefore can be used a simple synth voice (VCO→VCA-VCF)DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.DISCLAIMER: This filter brings to your modular system the character of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only it’s amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.Features:• Dual-channel Sallen-Key Filter. Inspired by the early MS-20• High and Lowpass operation.• Two CV inputs per channel with a dedicated attenuverter for the first one.• CV controlled resonance.• The first channel can be linked to the second one with the “Link” switch.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Experimental synth voice focused on ambient pads and drone-like soundscapes.Features:• Stereo External input with selectable gain.• 5-second looper Records either the stereo input or the module’s output• Sine oscillator• Supersaw oscillator• Wavetable oscillator that uses the Looper buffer• Multimode filter: low-pass, band-pass, high-pass, and comb filter.• 3-band resonator• 2-tap echo• Reverb with macro control for size, filtering, and direction.• CV Control with attenuators on most parameters.• Various types of self-modulation with configurable routing and control over level and speed.• External synchronization via sync input.• Powerful randomizer with four different targets, three levels of intensity and undo/redo.• Knobs catch behavior functionality for re-coupling parameters’ positions.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Space-conscious lowpass filter and volume processor. A combination of VCF + VCA + Mixer that lets you mix three different sound sources, and shape their tone, and levels in a breeze. The Pony Filter is built around the SSI2144 FATKEYS™ Chip. Has the elegant sound of the classic transistor filter without the associated distortions, due to Dave Rossum’s “improved ladder” topology.Features:• 3 Channel Mixer (Out normalized to channel three for feedback)• Temperature-compensated Q and frequency• Compensated Volume VS Resonance• 2 Cuttof CV INs• CV 1 Selectable routing Cut-Off or Cut-Off+VCA• Voltage controlled Q• Two Segment Peak MeterDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Cosmos is a new kind of module that will help you to creating complex modulation, sounds, patterns with ease and will lead you to new sounds territories.Inspired by early analog computers, Cosmos is a unique, innovative, very flexible and fully analog module allowing it to be used as: VCO, LFO, Ring Mod, Polarizer, “VCA”, “LPG”, Phase Lock Loop, Cross-Modulation, Minimum, Maximum, Logic Gates, Waveshaper, Complex gate generator, Fuzz, Distorsion, Gate extractor, Trig extractor, Gate generator, Voltage generator, Trig Generator, comparator, window comparator, complex comparator, Half-Rectifier, Full-Rectifier, Inverter, Buffered Multiples, Mixer, Difference, Compressor, Sidechain, compressor, VC Clipper, VC Switch, Clock doubler, Envelope follower, and more.With its wide fields of application Cosmos can replace many modules but it will also bring new colors to your palette thanks to its unique character. This makes Cosmos the ideal module whether you have a small case or a big system. 100% analog and with an intuitive interface Cosmos is also very easy to use, no menu and button combo problems.Inspired by the past and crafted for the future, 100% analog Cosmos was not only thought to be the center of any system but also to blend perfectly with the rest of your case to form a consistent and coherent system.Cosmos was designed not only to be a swiss army knife module but also to push you to explore and you help create new sounds and explore sonic territories that were previously unattainable.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

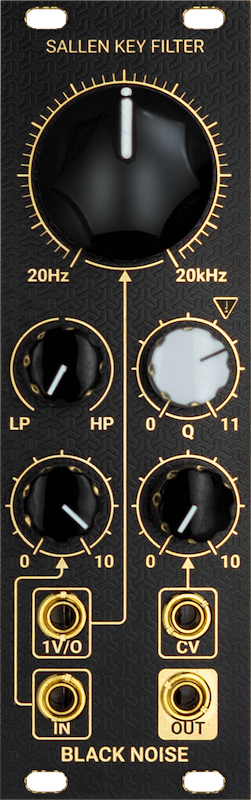

SALLEN KEY is our tribute of the legendary MS-20 filter. We've tried our best to honor this unique and iconic filter.It’s composed of a 2 Poles Low Pass and a 1 Pole High Pass. Unlike the original we added a crossfader allowing you to blend the Low Pass and High Pass filters to create complex filtering.What makes this filter special is its non linear feedback path. This design avoids the filter to clipping when self-oscillating, but also gives its unique color. We’ve choose to integrate LED’s instead of diodes. It not only slightly changes the color of the resonance, but also gives a nice feedback information about the drive of the resonance path.Since SALLEN KEY can self-oscillate it can be use as sound source. Tracking is accurate across 6 octaves.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

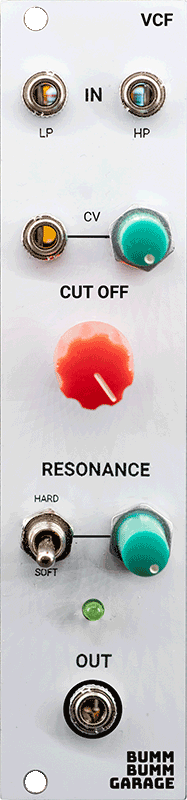

The Bumm Bumm Garage VCF is a voltage controlled low and high pass filter. It features everything that you need for creating unique timbres in your voices or giving them a designated place in the mix. Just plug your audio in the HPF or LPF jack, connect the output to the next stage in your chain and start shaping your sound!The circuit of the filter is based on a Korg MS20 adaptation by René Schmitz. It has a spacious board layout and a reduced variety of component values to ensure the smoothest assembly possible.Features:• Two in one: Low (LPF) and high pass filter (LPF)• Modular fun: Cutoff CV with attenuation• Linear & anarchic: Variable resonance with soft and hard responseDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Ilse is an elegantly minimal, yet fully functional synthesizer voice in a compact 10 HP Eurorack module. The only thing you need to let it meow is a CV source to trigger its 1V/Oct frequency input (or a MIDI to CV converter and a MIDI sequencer) . Because it has a low part count it is ideal for Eurorack beginners or entry-level DIY projects.Ilse is named after a cat, living in the legendary “Villa” in Weimar, Germany. The “Villa” was a place where a community lived and came together. Many underground concerts and parties took place here before the house got sold, renovated, and the mayor moved in. We created the graphics on the aluminum face-plate in her memory. Ilse (the synth) makes great acid sounds, so it was only logical to illustrate a cat tripping. Turn the knobs to make her look around or roll her eyes.Ilse is designed to be affordable, easy to build, yet flexible, and feature rich. It is a synthesizer voice for your Eurorack, but can even be driven without a rack using two 9V batteries (not included).Ilse is fully open source (KiCad schematic and layout is available in a git repository) and inspired by Syntherjack’s single-chip synthesizer Totoro. Check out his website with nice explanations, e.g. on the filter (we use the same filter on Ilse). We extended the design for external voltage control on filter, oscillators and LFO. Unlike Totoro, Ilse is designed around a unique oscillator design, which integrates the exponential conversion directly into the oscillator core. This results in an efficient circuitry saving you build time, parts and costs.PCB and face-plate are manufactured in the EU.Features:Functions• Two saw tooth oscillators• Bridged-T low pass filter with resonance control• Triangle LFO with speed control, and routing to filter and/or oscillators• Simple mixer and detune for oscillatorsControls• LFO Speed, Filter Modulation, Osc Modulation• Filter Cutoff, Filter Resonance• Tuning, Osc2 Detune• Osc1/Osc2 (Filter in)• Output volumeInput/Output• 1V/Oct CV for oscillators (0-5V)• Gate (0-5V)• Filter cutoff (0-5V)• External filter input• Volume controlled output• LFO Speed (linear, via solder pad on back, 0-8V)• Oscillator 2 detune (linear, via via solder pad on back, 0-8V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The CubuSynth Dual CS-20 VCF is a versatile module that combines two 12db filter cores in a dual/stereo configuration. It is inspired by the iconic Korg MS-20 synthesizer, offering similar sound characteristics while the resonance can be pushed even further.The module provides multiple filter modes, including low pass and high pass, which can be blended together to create a diverse range of filter responses. This allows you to shape your audio signal in various ways, from smooth and warm low pass filtering to more aggressive high pass filtering.One of the standout features of the CS-20 VCF is its self-oscillating resonance capability. When the resonance is turned up, the filter produces a sine wave that can be used as an additional sound source. This feature adds to the versatility of the module, allowing you to create complex and evolving sounds and even cross-FM modulation possibilities.The frequency and resonance parameters can be controlled via control voltage (CV) inputs. The frequency CV input can be attenuverted, meaning it can both attenuate and invert the incoming CV signal. This gives you precise control over the modulation depth and direction for frequency modulation.The resonance CV input includes an attenuator, allowing you to adjust the modulation depth for the resonance parameter. This feature gives you the flexibility to add dynamic and expressive modulation to your sounds.Additionally, the CS-20 VCF provides a 1V/Oct input, which allows you to control the filter's frequency using a standard 1V/Oct control voltage. This input is stable over a range of at least 2 to 3 octaves, ensuring melodic tracking and integration with other modular synthesizer components.Overall, the CubuSynth Dual CS-20 VCF offers a powerful and flexible filtering solution with intuitive routing and modulation options. It is designed to inspire creativity and provide a wide range of sonic possibilities for your modular synthesizer setup.Features:• 2 individual Filter cores with common Frequency and Resonance controls• CV control over Frequency and Resonance for each Filter core• Self-oscillating Resonance with LED feedback circuit (visible on the Front)• 1 V/oct input, tracking over 2~3 octaves• Frequency Range: 22 Hz - 20 kHz• Blend between LP / HP Filter modes• Ability to use as 2 pole (12db) stereo HP/LP Filter, 4 pole (24db) mono LP/HP or a Band Pass (12db) Filter• Cross FM Modulation possibleDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The CubuSynth VCFA is a multimode VCF with LP,HP and BP modes with integrated VCA, CV control over frequency, resonance and volume. The CV input for the frequency features 1V/Oct scaling over about 2~3 octaves. So you can even create plucky melodies with the resonance in "ringing" mode. The gain control can reach a nice, soft saturation.Features:• 3 simultaneous Outputs for Low Pass, Band Pass and High Pass• Integrated VCA at the input stage• CV control over volume, frequency and resonance• "Ringing" mode on upper resonance setting• 1 V/oct tracking over 2~3 octaves (with freq CV attenuator on 100%)• Saturation on incoming signal (VCA stage) on upper gain settingDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
The Multi-Mode Ladder (MML) Filter is a twist on the classic transistor ladder low pass filter by Dr. Robert A. Moog.This filter updates the classic 4-pole ladder design to provide Band Pass and High Pass filter responses as well as the traditional Low Pass filter,this module also adds CV control over the resonance as well as two frequency CV inputs.The circuit features a fully discrete transistor design with an op-amp buffered output, this allows soft saturation of the input signalto get the classic overdriven tones of the ladder filter. A bass compensation circuit has been included to retain the bass response in Low Pass modewhen the resonance is increased.The bass compensation also helps to improve the response of the High Pass filter.The bass compensation can be removed if the user wishes to have a more classic response (see mods section in build doc).Features:• Low Pass, Band Pass and High Pass modes.• CV controlled resonance.• Added low frequency compensation.• Soft saturation of input.• 2 x frequency CV inputs.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Triple Bandpass Filters / Noise SourceDE-9 Box of Angels is a three stage bandpass filter/bandpass-gate with integrated noise source in 12HP. Box of Angels can be used as three serial filters, a bandpass gate/crude VCA, and as a separate gritty noise source. The noise source is normalled to the module input, which means that Box of Angels can be a sound source on its own. There is also a dedicated noise output if you want to use the noise with other modules in your rack. Each filter has its own Amplitude control with CV input and attenuator, as well as controls for filter frequency and resonance. Turing up the resonance on the filters and sending CV to each amplitude allows for some interesting evolving tones without the need for external input.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Who doesn’t love a good resonant low pass VCF? It’s arguably the beating heart of any subtractive synth – adding character, dynamics, and a good deal of retro-futuristic oddness to your patches. That’s why a diode ladder VCF that sticks to super basic and widely available components was created. On top of that, the architecture is as approachable as possible by avoiding the tricky diff-pair setup classic ladder filters rely on.We – Erica Synths and Moritz Klein – have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.In total, we have developed 9 kits to build a fully-featured modular monosynth: a sequencer, a VCO, a wavefolder, a noise/S&H module, a mixer, a VCF, an Envelope generator, a dual VCA, and an output stereo mixer with a headphone amplifier. Additionally, an affordable eurorack case with a DIY PSU will also be available. While these kits are easy to build, we did not compromise on design and functionality. We will launch one kit every 4-6 weeks. For each kit, there is an extensive user manual (40+ pages; can be downloaded separately) that will dive deep into not only the electronics behind each circuit but also the fundamental principles of sound synthesis. We hope that the mki x es.EDU project will inspire future engineers and will contribute to the ever-growing diversity of electronic music technology.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
HI-FUSION is a remake of the classic Polyfusion from the 70s with some improvements.It is a low pass OTA VCF based on the well known LM13700 ic.We chose to make this circuit because it's v/oct stable, and the trimmers allow to calibrate it properly.It has a switch for 2 pole and 4 pole configuration, each with it's own character and timbre.This design produces nice sounding filter fm results.Features:This kit contains all the parts needed to build a complete HI-FUSION module.• 1 audio input: IN• 1 audio level pot: ATT• 3 cv inputs: FREQ(with attenuator), FREQ (for v/oct), RESO• 1 cv level pot: FREQ CV (attenuator for FREQ cv input)• 2 vcf control pots: FREQ (frequency) and RESO (resonance)• 1 configuration type switch: 2P and 4P (2pole or 4 pole)• 1 output: OUT• standard 10 pin euro power (+12V / -12V)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
