333modules - MIDImutesTHRU

only 2 left

4x MIDI thrugh with mutes and momentary.Features:• On-off momentary MIDI mutes.• 1 midi IN to 4 midi THRU output.• Also MIDI IN, in back PCB pins.• Another extra MIDI OUT, in back PCB pins.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€101.15*

AtoVproject - 16n Rework (Black)

only 1 left

The 16n AtoVproject Rework is aimed at solving a problem very specific to modular synthesis. As a patch is getting more and more complex a forest of cables has grown over your system before you know it. This module allows you to take the control from the modular into a very ergonomic controller that integrates perfectly into a modern studio.The 16n AtoVproject Rework is a controller sending CV, I2C, MIDI jack, USB MIDI (compatible PC, Mac, iPad etc...), making it the absolute ultimate controller for any of your hardware and software all in one!Even better this controller can either be used as a Eurorack module or as a standalone unit using the beautiful aluminum enclosure.In 2019, the Berlin Modular community showed interest in building the 16n Faderbank. As one of the Berlin Modular community organizers, I decided to make a redesign of the 16n faderbank following the suggestions and desires of our members. The 16n AtoVproject Rework is the result.Features:• 16 high-end Alps faders• Eurorack compatible (50hp) and standalone enclosure (for use in or out of the rack)• Selectable 0-5V or 0-10V CV output range (independent setting for each fader)• High stability power conditioning for high stability analog outputs• Soft MIDI thru. MIDI data sent to the 16n through USB is echoed to the MIDI jack (Since firmware v2.1.0)• Utility connector on the back of the unit to simplify the use of i2c with modules like the ER301DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.

€279.00*

Details

AtoVproject - 16n Rework (Silver)

sold out at the moment

€279.00*

Details

Bastl Instruments - Midilooper

available

Looping is one of the fastest and most intuitive ways of music-making. It's always been great for improv and invention, but why not try it with MIDI messages this time?The Bastl Midilooper is an experimental device that will help you do just that. It listens to control information about notes, dynamics, and other parameters, and it loops them in a way an audio looper would process pieces of audio. Since the MIDI loops remain in the control domain, many other processes can happen simultaneously on top of them - so you can explore timbre modulation, envelope adjustments, and way more.We designed the controls of the Midilooper to be easy to access so that the device comes in handy and enhances your music-making flow. Your fresh ideas are just a few button presses away: “[The Midilooper is] highly recommended if you’re trying to simplify your workflow and/or get away from menu-diving outside of the computer,” says a recent review in The Waveform Magazine, and we couldn’t agree more.Features:• 3 independent voices (each has MIDI channel assigned)• overdub/overwrite• transpose mode• octave transpose• quantize, velocity lock, shuffle, humanize• odd looplengths, time stretch• mute, clear, erase• one MIDI Input and two MIDI Outputs• clock input (accepts analog clock or TRS MIDI Clock)• analog reset input• metronome output• CV input connectivity (transpose, velocity, re-trigger)• pedal control (record, clear, voice selection)• USB powered• adjustable divider/multiplier for the analog clock• dimensions: 125mm x 80mm x 35 mm

€285.60*

Befaco - CV Thing

only 2 left

CV Thing is a fully mappable CV to MIDI converter in just 6HP. Its based on our VCMC module, but aiming for small and compact performance rigs. It has eight inputs that can be mapped to any MIDI message quite easily thanks to its simple and intuitive user interface. CCs, Program change ,V/Oct to Note or Clock are some of the messages that can be configured to easily control MIDI gear from your modular rig.Features:• Class-compliant USB MIDI and TRS connectors.• TRS to DIN5 Type A adaptor included.• 8 CV inputs.• Controls fully mappable to any MIDI message (CC, Notes, Program change, Clock, ST/SP, NRPN…)• Configurations are saved both in internal memory and via Sysex.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€176.12*

Befaco - Lich

sold out at the moment

Lich is a programmable multi-function module based in the Rebel Technology OWL platform that allows you to use Pure Data, Max Gen or Faust code into your module!.Lich is a Befaco Rebel collaboration that brings back Owl’s platform with this new hardware iteration. It has stereo in and out, four pot controls summed to cv inputs (like the classic Owl module) And as addition, CV and Gate outputs, patch selection with display and USB MIDI host and device connections.Features:• Stereo Audio IN and OUT at 48k 24 bits.• 4 CV controls (Pot + Attenuated CV in)• 2 CV outputs.• 2 Gate intputs + buttons.• 1 Gate Output.• Patch selection and visialization via display.• USB host and Device connectionsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€201.11*

Details

Befaco - MIDI Thing 2

sold out at the moment

Mid Thing v2 is a flexible MIDI to CV converter. Allowing polyphonic notes handling, envelope and LFO generation as well as all available MIDI messages to be converted into CV. This is a huge upgrade from our previous beloved MIDI Thing, which adds a screen for easy configuration, 12 assignable ports, TRS, USB Host and Device, MIDI merge OUT, a web configuration tool, and a VCV rack bridge counterpart.Features:• 12 Configurable ports• TRS type A MIDI IN and OUT, USB host and device connectivity.• Configuration screen with intuitive menu diving• Web configuration toolDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€238.00*

Details

Befaco - VCMC

sold out at the moment

This thing is totally awesome! Why? Imagine your plugins being controlled from your modular by CV! VCMC is a voltage-controlled MIDI controller. A fully editable MIDI controller with eight faders and push-buttons. Each of them with a CV or Gate input associated to automate their functioning via external signals or to be configured independently for further control. Each control on VCMC can be edited on its OLED screen and will be output either via DIN-5 or USB as a class-compliant MIDI device. DIYers can modify the module to make it standalone.Features:• Class-compliant USB MIDI and DIN5 connectors.• 10 CV inputs And 8 gate inputs.• 8 Faders and 8 Buttons.• Controls fully mappable to any MIDI message (CC, Notes, Program change, Clock, ST/SP, NRPN…)• Configurations saved both in internal memory and via Sysex.• Online Web EditorDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€210.63*

Details

Clatters Machines - Garden Listener

sold out at the moment

The Garden Listener Eurorack module detects conductivity variations on living beings’ surface and transforms them into MIDI notes and CV signals. For once, leave those LFOs alone, and let any living conductive being modulate your signals. It detects conductivity variations on living beings’ surface and transforms them into MIDI notes, ranging from C-1 to C8, and CV signals (0 – 5V).Its behavior can be tamed through the one-knob menu from which you can choose and modify:• probes’ sensitivity (making it more or less sensitive to current variations)• scale (chromatic, major, minor, indian and arabic)• MIDI channel (from 1 up to 16)• LEDs’ brightnessIt generates trigger, gate, and CV (1V/oct). The CV output behavior can be modified via an octave selector which acts as a “CV equalizer” from which you can choose to generate CV only if the respective MIDI note lies within a certain octave range.The MIDI output allows you to take advantage of the sound of either any synthesizer equipped with a MIDI port or any VST in your DAW.The module comes with 3.5mm white probes and a set of snap-on adhesive reusable electrode pads. A MIDI-TRS type A adapter (not included) is required for the MIDI output.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€273.70*

Details

Music Thing Modular - 8mu MIDI-Controller

available

Pocket-sized MIDI controller with built in Accelerometer!The 8mu is a pocket-sized MIDI controller (slightly smaller than a credit card!) with eight faders that can send messages via MIDI. The 8mu also has a built in accelerometer which measures how the device is being held. This creates eight more control signals, mapped to gestures like “lift the front” or “turn me over”. There are four tiny buttons along the top edge, which can be configured to send MIDI notes (like a keyboard) or control signals.MIDI data is sent via a 3.5mm TRS MIDI output, which can be Type A or Type B, and via USB-C. Only standard USB data lines are used, so it should work on any USB computer with an adaptor. The device is also powered via USB. 8mu can store 8 banks of CC settings which can be accessed using the left and right buttons on each side of the device.8mu has a web editor where you can edit all the settings: Launch the 8mu Editor, and there is a quickstart guide printed on the back or get a quickstart PDF by the buttons below.The 8mu design was inspired by the 16n project but the hardware is quite different. The editor is a modified version of the 16n editor by Tom Armitage. 8mu cannot send i2c or CV, but it’s designed to be open and hackable and can be re-programmed in Arduino or Circuit Python code.Features:• Size: 81 x 47 mm• The body is 13 mm tall, or 24 mm with the faders and fader caps• It weighs 65 gDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€140.00*

Robaux - LL8-2

sold out at the moment

Program your patterns like on a classic TR machine. Record patterns with your fingertips. Create random patterns at the touch of a button.Turn your patterns into exciting performances with the mute and fill function.The LL8ᴵᴵ has 16 patterns with up to 16 steps. Create longer rhythms by chaining multiple patterns.But that's not all: The lil eight is now polymetric! Each track can have a different length, length reset, legato and a probability function.For even more exciting performances, there's a new fill mode that repeats entire steps of the whole pattern!Enter the world of modular drums with the Robaux Little Eight II.Features:• Number of Tracks: 8• Number of Steps per Track: up to 16• Number of Patterns: 16 (chainable)• 1 x Clock In• 1 x Reset In• 8 x Trigger Out• 1 x MIDI Out (adapter required)• 20 x backlight silicon button padsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€135.00*

Details

Robaux - MIDI Adapter

only 1 left

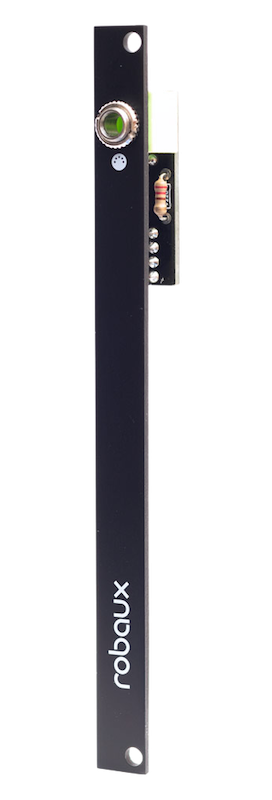

The MIDI Adapter works with LL8, LL8-2 and also works with SWT16+ with MIDI-firmware.With the LL8ᴵᴵ and the above named machines you can use MIDI devices like drum machines or samplers.Each track of the sequencer can output an individual MIDI note to one of 16 MIDI channels.The new Robaux MIDI adapter now has a space-saving mini jack and could be reduced to a width of 2HP. The adapter can be used for both MIDI Type A and MIDI Type B.

€15.47*

Robaux - SWT16+

sold out at the moment

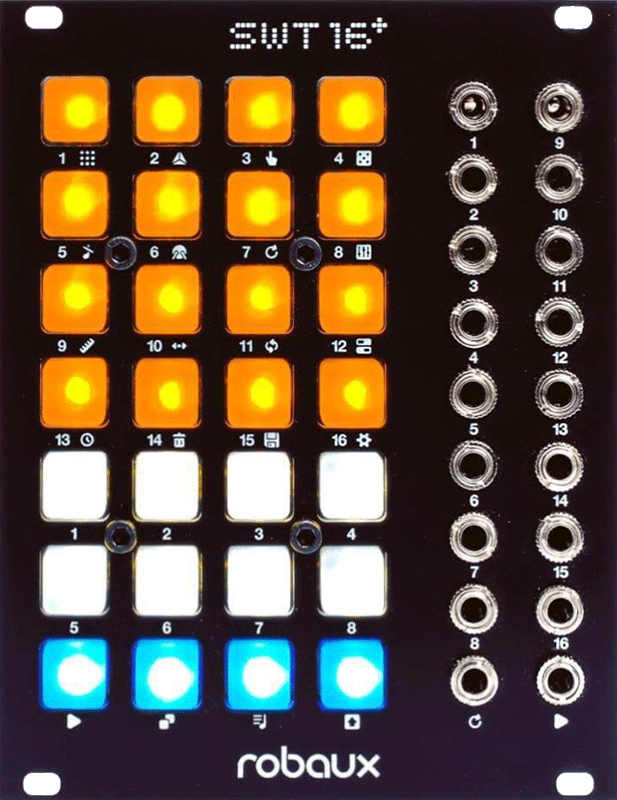

The Robaux SWT16+ is a 16-track eurorack trigger sequencer with up to 64 steps per track.The Sweet Sixteen Plus is perfect for triggering drums, envelopes or modulation sources.With the new member of the Robaux family, you can switch between eight different patterns.This will allow you to create even more exciting performances. You can store these patterns in up to 16 memory banks.Program your tracks step by step. Play your tracks on the fly. Or just use the new Euclidean rhythm generator.The new design has even more crazy flashing buttons! With the improved menu navigation, you can use the sequencer even more intuitive.The sequencer offers 16 different modes to create and modify rhythms. Modes are divided into four distinct areas:Create, Perform, Track Settings and Sequencer Settings.Randomize your tracks, move your steps or reverse your patterns. With these tools, you can discover entirely new rhythms.And the new Coin function adds even more variety to your beats.Features:• Number of Tracks: 16• Number of Steps per Track: up to 64• Number of Presets: 16• Number of Patterns per Preset: up to 8• 1 x Clock In• 1 x Reset In• 16 x Trigger Out• 1 x MIDI Out (Alternative firmware and adapter required)• 28 x backlight silicon button padsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€245.00*

Details

RYK Modular - M185

only 1 left

The M185 is the most intuitive and playable Eurorack sequencer.It appeals as a hands-on performance orientated module for easy creation of complex melodic sequences.It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.• Features an expansion header for chaining two M185s for 16 stage sequences• Lots more quantisation scales• Live X0X style Gate Pattern programmingOVERVIEW• 8 unique gate modes for creative rhythmic possibilities• A/B split mode for two separate sequences, like having two sequencers in one box• 2 channels of CV/GATE and MIDI I/O• 15 Quantise scales OR pure analogue microtonal CV outputINPUTS & OUTPUTS• 2 channels of CV and Gate outputs• Expansion header to connect two M185s for 16 stage sequences• Reset input [ shared with MIDI input ]• Sync output [ shared with CH2 gate ]• Bidirectional Clock I/O• MIDI input for MIDI clock in, MIDI note transpose• MIDI output for MIDI clock out, MIDI note outputSTAGE DETAILS• 8 stages, each with individual 1-8 step repeats per stage• 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]• Programmable gate patterns for 'on the fly' X0X style programming of gate triggersEVEN MORE DETAILS !• AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures• AB parallel split mode, for two separate simultaneous sequences that play at the same time• Root note offset and reset trigger options from sequence B to A• 2.5V / 5V voltage range selectable• MIDI note output including programmable velocity• MIDI to CV converter mode [wow]• Programmable glide per stage• Easy user upgradable firmware using MIDI sysex filesPLEASE NOTE THE KIT IS ONLY SUITABLE FOR EXPERIENCED BUILDERS.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€302.26*

Shakmat - Clock O’Pawn mk2

available

The Clock O’Pawn mk2 serves as a versatile clock device, taking on the role of true "chef d’orchestre" for your modular system. Its transport section lets you start, stop, and reset instruments synchronized with its intuitive internal clock or have your setup dance with your MIDI equipment.If you find metronomic clock signals uninspiring, a variety of groove patterns and clock humanization features enable the maestro to guide your setup with distinctive shuffles and swings. To complete this rich set of features in a small yet powerful clock source: presets memory, select bus compatibility, and several handy options to configure the Clock O'Pawn the way it suits you the best.Features:• Clock source module offering four distinct outputs• Transport section with play, pause, stop, tap tempo and manual reset operations• Diverse selection of grooves, ranging from classic swing to experimental clock manipulation• Humanize adding randomisation to the clock timing• Accent output with 27 different patterns• Option menu for customizable preferences• Midi input for external sync with midi devices• Memory of 16 presets• Select bus compatibility• Skiff friendlyDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€140.00*

Synthux Academy - Simple Designer

only 2 left

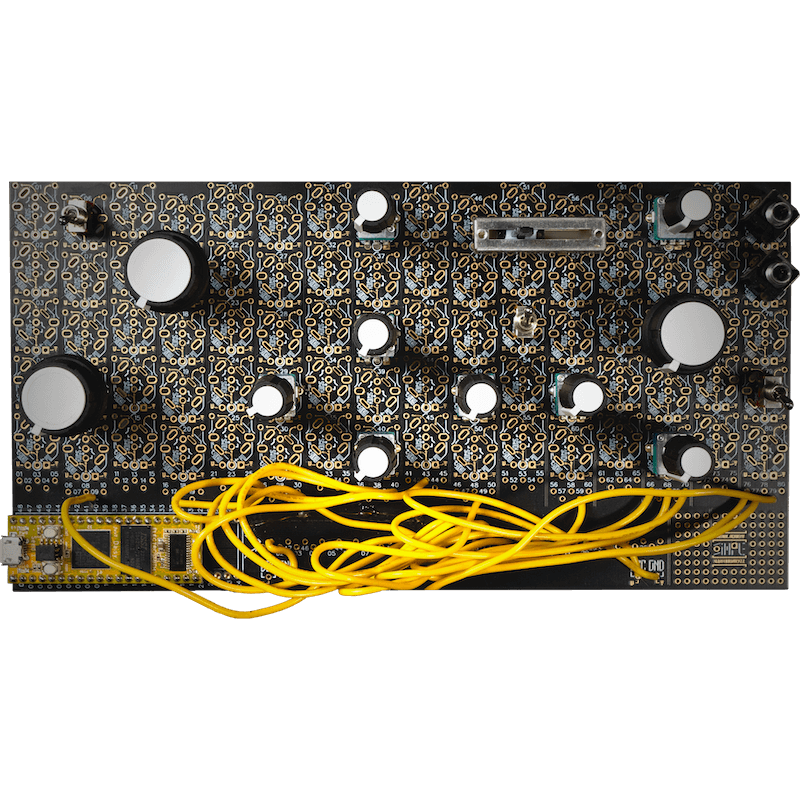

Introducing Simple Designer: the ultimate rapid prototyping instrument for the synth community. Boasting 80 slots for potentiometers, switches, and jacks, plus the capability to incorporate faders and LEDs, it invites endless creativity. Whether you're building from the ground up or iterating on existing designs, Simple Designer, powered by the versatile Daisy Seed microcontroller, is your canvas for creating a full-blown synthesizer. Tailored for designers, makers, and musicians at any skill level, Simple Designer transforms your visionary concepts into tangible, sonic reality with unprecedented ease. Start crafting your masterpiece with Simple Designer today—where your synth dreams become reality.Features:• Programmable. All Simple kits come with the Daisy Seed microcontroller and access to our introduction to synth programming video course.• Open source instrument on Github.• Each kit comes with a video course teaching sound fundamentals: https://learn.synthux.academy/• Powerful music instrument for live performances.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.

€296.00*

Synthux Academy - Simple Fix

sold out at the moment

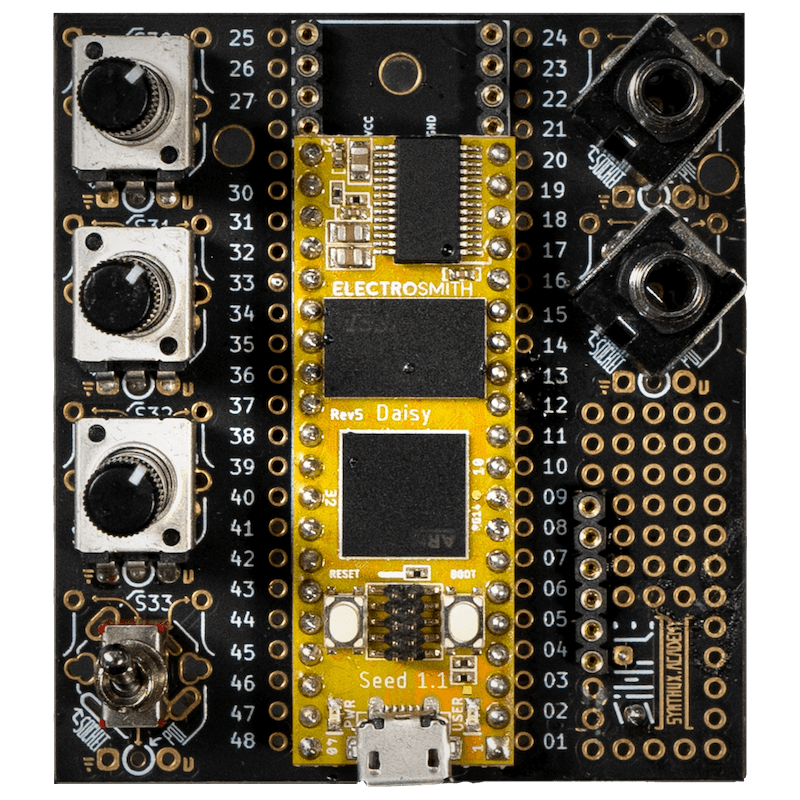

Unleash your creativity with Simple Fix, the rapid prototyping tool designed for synth designers, makers, and musicians. Powered by Daisy Seed microcontroller, Teensy, or Arduino Nano, it's your quick-start solution to bring ideas to life. Effortlessly add knobs, switches, and jacks, and dive into the limitless world of sound and functionality. Whether you're a pro or a passionate hobbyist, Simple Fix accelerates your design process, transforming inspiration into reality faster than ever. Start your journey towards groundbreaking designs today and unlock your creative potential with Simple Fix—where your next masterpiece begins.Features:• Programmable. All Simple kits come with the Daisy Seed microcontroller and access to our introduction to synth programming video course.• Open source instrument on Github.• Each kit comes with a video course teaching sound fundamentals: https://learn.synthux.academy/• Fits in your pocket.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.

€101.00*

Details

Transient Modules - Midi2TRS

only 1 left

Midi2TRS is a very simple but handy DIY kit. It does 2 things:• it converts the Midi-DIN input to 3,5mm TRS like it’s used now on many synths and controllers nowdays• it switches the polarity on the TRS side and by that flips MIDI TRS-A standard (E.g. Korg, RK006) to TRS-B (for e.g. Arturia and older Novation products) and vice versa. You can use this together with any length TRS audio cable and have TRSA and B work together in an elegant way.There is a good explanation about MIDI via TRS at 'other links'.It's so dead-easy that no build guide is neccessary, but if you have questions please email Transient Modules!DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.

€9.90*
