4ms - Meta Module
available
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.THIS PRODUCT IS ASSEMBLED AND NO DIY!The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments Eurorack modules, fun physical modeling algorithms, and lots of handy utilities.All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.MetaModule PluginsIf the 160+ built-in module aren’t enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. We have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. Our licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.Mapping Knobs and JacksThe MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.ExpandersThere are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.Under the HoodThere are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.Features:Patches• Patches are loaded from microSD Card, USB drive, or via the Wifi expander• Patches can be optionally saved onto internal flash memory• Create patches using VCV Rack or directly on MetaModule• Patches can be given a name and descriptionMappings• Map each physical knob to up to 8 virtual knobs• Set range and offset for each mapping, including inverted control• Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving• Map physical jacks to virtual jacks, seamlessly making splits/mults• Add or edit modules, cables, and mappings in real-time while the patch is playing• Create alias names for mappings like "Kick Drum Level"Interface• Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture• Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time• Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set• Module View shows just one module and lists the names of each jack, knob, and control legibly• Mapping View lets you adjust details of a knob mapping• Adjust styles and visual preferences to your liking• Save, rename, duplicate, and delete patches• Firmware updater and plugin loader read from microSD Card or USB driveHardware• 12 Knobs• 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 2 Gate inputs• USB-C jack: MIDI Host or MSC (External drive) Host• microSD Card slot• Internal Flash RAM for additional patch storage• Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor• 512MB DDR3 533MHz RAM• Bare-metal operation for fast startup and low latencyDIY-Kit-Type:Assembled unit. This is completely ready to use, nothing to solder or to assemble.
€649.00*

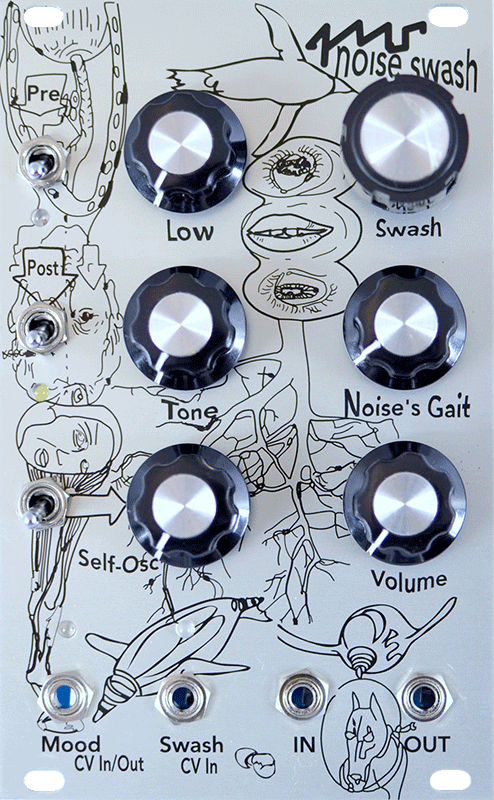

4ms - Noise Swash
available
The Noise Swash is a chaotic random noise-maker and CV generator, generating its own sounds or working as an audio processor. As a stand-alone device it generates unpredictable continuously morphing oscillations on the Audio Output jack, and random CV fluctuations out the dual-direction "Mood CV" jack. A second CV input jack controls the Swash and Noisegate sections with positive and negative CV voltage. An audio input jack allows for distorting an audio signal beyond recognition, or using audio to trigger and modulate the chaos. The Swash knob is a 10-turn Bourns pot for adjusting minor variations. Each Swash has its own peculiarly unique sound.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€149.35*
%
4ms - Percussion Interface & Expander
available
The Percussion Interface (PI) and PI Expander are a pair of Eurorack modules that generate gates and envelopes from acoustic drums, samplers, drum machines, and virtually any audio source.Converting microphone, instrument, line and modular signals into CV and clock/gate signals, the PI and PI Expander are suited for synchronizing sequencers or other modules to the rhythm of an audio track or live percussion. The modules can simultaneously be used as a pre-amp for microphones or line-level signals, while generating inverted envelopes useful for side-chaining. The PI module contains all the core functionality and can be used without the Expander to conserve space. The Expander requires the main PI modules and adds three gain stage options, a modular-level audio output jack, a 1/4" (6.35mm) input jack, and envelope attenuation capabilities. The two modules are only sold together, they are not available separately.Features:• Sensitivity knob, Low/Medium/High gain switch, and clipping LED• Sustain control to prevent misfires, increase gate length, and control the envelope• Envelope decay control• Non-inverted and inverted envelope outputs, useful for side chaining• Four envelope outputs: two attenuated with independent attenuators, and two non-attenuated• Envelope following or generation modes• Gate output for clocking sequencers or any unit with a clock or trigger input• Compatibility with drums, pads, samplers, microphones, piezos, drum machines, etc.• 1/8" or 1/4" input jack (6.35mm)
€124.95*
€173.70*
(28.07% saved)
4ms - Pingable Envelope Generator (Black)
only 2 left
The Pingable Envelope Generator (PEG) from 4ms is a dual envelope generator whose envelope lengths are set by incoming clocks or "pings".The PEG has full CV control of envelope shape, skew, and ping (clock) division/multiplication, as well as a plethora of triggering and cycling options (AD, AR, quantization, cycle), and a tap tempo button for each channel.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€215.39*
4ms - Pingable Envelope Generator (Silver)
only 2 left
The Pingable Envelope Generator (PEG) from 4ms is a dual envelope generator whose envelope lengths are set by incoming clocks or "pings".The PEG has full CV control of envelope shape, skew, and ping (clock) division/multiplication, as well as a plethora of triggering and cycling options (AD, AR, quantization, cycle), and a tap tempo button for each channel.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€215.39*
4ms - Quad Pingable LFO (Black)
available
The Quad Pingable LFO (QPLFO) is a compact, playable four-channel tap-tempo, clock-syncable LFO with variable skew and reset.The QPLFO is designed to be useful in small portable systems that require maximum functionality in minimal space, as well as large systems that need maximum modulation sources.Features:• Quad "pingable" LFO's -- frequency is set by time between pulses ("ping")• Each of the 4 channels is an independent LFO• Can produce a variety of waveshapes: "Pluck," to ramp-down, to triangle, to ramp-up, and all shapes in between• Channels can easily modulate, trigger, and reset each other for complex and slowly morphing outputs• Slowest period is about 71 minutes (0.0002 Hz), fastest speed is about 500Hz (marginal tracking up to 1kHz)• Tap tempo button is free-running (LFO runs indefinitely), but external clock/Ping is auto-stopping (LFO stops when external clock stops)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€204.68*
4ms - Quad Pingable LFO (Silver)
only 2 left
The Quad Pingable LFO (QPLFO) is a compact, playable four-channel tap-tempo, clock-syncable LFO with variable skew and reset.The QPLFO is designed to be useful in small portable systems that require maximum functionality in minimal space, as well as large systems that need maximum modulation sources.Features:• Quad "pingable" LFO's -- frequency is set by time between pulses ("ping")• Each of the 4 channels is an independent LFO• Can produce a variety of waveshapes: "Pluck," to ramp-down, to triangle, to ramp-up, and all shapes in between• Channels can easily modulate, trigger, and reset each other for complex and slowly morphing outputs• Slowest period is about 71 minutes (0.0002 Hz), fastest speed is about 500Hz (marginal tracking up to 1kHz)• Tap tempo button is free-running (LFO runs indefinitely), but external clock/Ping is auto-stopping (LFO stops when external clock stops)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€204.68*
ADDAC System - 214 VC Rotator
available
This is our VC Rotator, a stepped routing module for any type of signal (audio, cv, gate, trigger...)Similar to a VC switcher but in this case there's the same number of inputs as outputs so, instead of 4 to 1 or 1 to 4, this module is always 4 to 4 but it can be patched for 2 to 2 and 3 to 3 step actions.All four inputs get routed to the four outputs depending on the CV and Clock controls and are divided into 4 routing steps:1. routes all inputs to the same number output: 1:1, 2:2, 3:3, 4:42. routes all inputs to an offset of 1: 2:1, 3:2, 4:3, 1:43. routes all inputs to an offset of 2: 3:1, 4:2, 1:3, 2:44. routes all inputs to an offset of 3: 4:1, 1:2, 2:3, 3:4Direction determines if the clock input goes forward or backwards.Going forward it can be set to 2-3 or 4 steps using the Rotate knob offset, going backwards always sync to 4 steps even if offseted by the Rotate knob.For 2 & 3 step action input 1 is normalled to input 3 and input 2 is normalled to input 4.Reset resets the internal clock to the first step.Pendulum, external sequencing or any complex CV actions can be achieved using the CV input and dedicated attenuverter.4 LEDs monitor which input is routed to output 1.Features:• 4 Inputs• 4 Outputs• Direction Switch• CV Rotate with Attenuverter• Clock and Reset Inputs• 4 Monitor LedsDIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€145.00*
ADDAC System - 215 Dual S&H
available
This new module should not be judged by its size, at 6hp it’s packed with features.At its core it features a noise source and two precision Sample & Holds that drastically reduce the typical voltage drop over time (20 minutes for a 0.01v drop) and with 0.3% of maximum deviation from the Input which allows for quantized signals to be sent through without any noticeable detuning.The Sample & Hold sections can also be used as a Track & Hold, meaning it holds the incoming input while the Trigger input is ON and lets the input flow to the output when the Trigger input is OFF.Each section also features its own slew processor with a single control over attack and decay and an ON/OFF switch.The noise signal is normalled to both sections inputs, meaning that without a jack plugged into the Input, the sample and hold function will act upon the incoming noise signal, generating random CV values.The [Trigger A Alternate] switch allows to Link both sections so that any trigger input in Trigger A will alternate between triggering the A and B section.Besides each section outputs there are also 4 extra outputs: Noise, Difference, Average and Sum. The [Noise] output is coming from the noise source, the [Difference] output is the subtraction of section A minus section B, the [Average] output is the sum of both A plus B and then divided by 2 and finally the [Sum] output is the sum of both A plus B sections.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€139.00*
ADDAC System - 306 VC Transitions
only 1 left
ADDAC306 is a 5 channel multi-directional CV generator.You can think of it as a "sweet spot" controller, or a hands-on way of transiting from one state to another.Each of the five channels has MINIMUM, SPAN and DIRECTION controls, a common CV IN and a common TRANSITION CONTROLLER slider.MINIMUM sets the minimum channel voltage.SPAN sets the voltage range of the channel.It essentially sets the maximum voltage that can be output from the channel, relative to what the current channel MINIMUM is. For a given SPAN value, if the MINIMUM voltage is changed then the maximum voltage output from that channel will also change respectively.DIRECTION sets whether the voltage transition for each channel goes from MINIMUM to maximum, or maximum to MINIMUM.The TRANSITION CONTROLLER slider controls the transition from the minimum value (A) to the maximum value (B) or vice versa, according to the settings of each independent channel.Moving this slider generates 5 different voltages with 5 different ranges and directions. The transition can also be operated from a CV source at the CV IN, in which case the slider position acts as an attenuator for the incoming voltage.The maximum range of each channel can be set to either 5 or 10 volts, by 5 jumpers in the back of the module. Only positive voltages are generated at the output.Using the CV IN you can use two ADDAC306 modules to expand your control options to 9 voltage outputs under one common slider control.Use the VC Transitions to multiply the polyphony of a single CV sequencer by passing its outputs through the ADDAC207.VC Transitions makes for an awesome state transition controller. Plug its outputs to various CV controller parameters of your audio effects modules. Set the slider to position A, and set the minimum values for each channel. Then move the slider to position B and set the SPAN settings for each channel. Use the TRANSITION CONTROLLER slider to morph from state A to state B and backwards. Flip the DIRECTION switches to change the direction of the transition for each channel. Use the CV IN to automate the transition using LFOs, ADSRs or sequencers.Plug the output of your ADSR envelope to the CV IN and set the channels differently to get 5 different ADSRs from one common source.This module's development was based on an initial idea by Konstantine Fioretos.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€113.90*

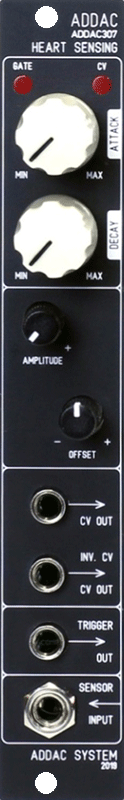

ADDAC System - 307 Heart Sensing
only 2 left
Another addition to our ADDAC300’s Expressive Controls Series.Preceded by the release of our ADDAC303 Muscle Sensing module this is the second module we make to take advantage of the physical body as a control source.This module originated from a simple idea: using one’s heart beat as a control source.Using a clip-on sensor, that can be attached to a finger or an ear lobe, the user’s heart rate will be acquired by sensing the blood flow passing under the sensor. This pulse will generate a trigger and an AD envelope.Clip-on sensor will be provided with the module.Features:• 0 +5v Trigger output• 0 +10v Envelope output with:• Attack, Decay, Amplitude and Offset controls• Two leds monitor the Trigger and Envelope OutputsDIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€130.90*
ADDAC System - 308 Light to CV
available
Another addition to our ADDAC300’s Expressive Controls series. This module converts the incoming light hitting an external light sensor into 2 Bipolar CV Streams:Output: More light > Higher CV outputInverted Output: More light > Lower CV outputThe external sensor is enclosed in a jack socket in order to be used with any standard jack cable and be able to place it in any place outside the Eurorack frame.There are several controls to adjust the CV Output’s signals:• Sensitivity: Adjusts the Light Sensor sensitivity to Light. The Higher the sensitivity the better it responds to low light situations.• Response: 3 fixed settings (medium/fast/slow) to set the slew applied to the raw signal coming from the sensor.• Gain: Sets the gain for both outputs• Offset: Adjusts the Offset for the main Output.• Inverted Offset: Adjusts the Offset for the Inverted Output.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€101.00*
AtoVproject - cLFO
available
Introducing our innovative Complex Low Frequency Oscillator (cLFO) - The cLFO is an instrument for those who believe in pushing the limits of modulation. Featuring two CV-controlled LFOs that intricately intermodulate and are seamlessly integrated with a ring modulator, this module elevates your synthesis and sound design to unprecedented levels.Crafted with a focus on cross and self-patching, the cLFO invites you to explore the endless possibilities of modulation. Dive into creating continuously variable waveforms, exponential shapes, bouncing ball effects, immersive stereo soundscapes and many other sonic wonders!Each LFO outputs Triangle, Saw, and Square waves. The Triangle output of LFO1 is normalled to the CV input of LFO2 with attenuation. The addition of a ring modulator to this setup draws from years of the designer's own experimental projects. It is an invitation to experiment with effects traditionally reserved for audio in the realm of modulation. A ring modulated LFO delivers the rhythmical essence of a conventional LFOs but with an added complexity and variability that ensures your soundscapes are always evolving.This module offers an expansive modulation frequency range, with speed adjustments from as slow as 2 minutes per cycle to as fast as 20 cycles per second. With CV control, frequencies can stretch from 13 hours per cycle to 400 cycles per second, ensuring unparalleled versatility in your modulation explorations.Accompanying the cLFO is a detailed manual filled with lots of patch idea designed to elevate your sound design skills to new levels.Dive into the world of advanced modulation manipulation with cLFO.Stay inspired! Stay innovative!Features:• Two analog LFOs• Control voltage over LFO frequency• 3 waveform outputs per LFO: Triangle, Square and Sawtooth (LFO1 - ramp down; LFO2 ramp up)• Wide frequency range: 2 minutes - 0.05s (20Hz) without CV and 13 hours to 400Hz with CV• Ring Modulator (aka four quadrant multiplier aka bipolar VCA)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€190.00*
%
Befaco - A*B+C
only 1 left
A*B+C is a dual, four-quadrant multiplier with VC Offset that can act as Dual Ring Modulator, Dual VCA and Four Channel Mixer. Each section can perform the analog multiplication of two signals (A and B) and add an offset (C).Features:• Dual-channel bipolar VCA’s• Adjustable VC Offset per channel.• AM and Ring Modulation capabilities.• Output allows it to work as a four-channel mixer.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€96.39*
€107.00*
(9.92% saved)
Befaco - Burst
available
Burst is a trigger processor and generator, designed to add an organic chain of events to your modular setup. You can see it like “Trigger Activated Trigger Burst”. Each time it is activated, either manually or with an external trigger, a given amount of triggers are generated. You can control Time Division, Distribution, Quantity, and Probability of the bursts.• With Burst synced to your tempo, you can create all kind of ratcheting effects and multiplications leading to doubles, triplets, quintuplets, and true Poly Rhythms for your modular system.• With very short time windows, Burst can help to synthesize fast repeating transients for “hand-clap like” sounds or modern drum hits.• Working in Cycle Mode, is also an excellent master clock with tap tempo functionality, and is able to achieve non linear distributed clocks.Features:• Custom trigger bursts up to 64 triggers.• Voltage Control burst Quantity with dedicated attenuator.• One Shot and Cycle play modes activated via manual controls or dedicated Trig Input.• Pingable clock input.• Voltage Control burst Distribution, Time Division and Probability.• Tempo and End of Cycle individual outputs for sync other modules.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€117.81*
Befaco - Joystick
only 2 left
A compact attenuverting (attenuator-inverter) joystick controller and Gate Generator. With it, you can generate and process two control voltages using only one hand. Provided controls for CV ranges and offset adjust the boundaries of your control, this way it never gets out of the desired range, ensuring sensibility and playability even with wild performance gestures.Features:• Robust arcade style joystick for manually generating either CV with Range and Offset control or attenuating two input signals• Two push buttons to generate gates manually.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€113.05*
Befaco - Morphader
available
Morphader is a performative tool designed to make multichannel CV/Audio crossfade easy and comfortable. Fading from one quad CV/audio scene to another. The core of the module has four CV controlled crossfaders, each with their individual control and a master fader to control them all. The module mixes the four crossfades at its fourth output, thanks to a clever normalization scheme. Each of them can be easily removed from the mix by plugging a cable at its own output.Features:• CV Controlled four channel crossfader.• Attenuators per input.• Normalized voltages to every input, allowing cv levels morphing.• Audio CV response switch per channel• Master Fader control with Lag.• Leds per channel for signal level monitoring.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€165.41*
Befaco - Noise Plethora
only 1 left
Noise Plethora is a multitimbral noise monster in 14HP.The module consists of three digital sound generators, followed by three analog multimode Filters. This combination makes it easy to sculpt different textures and noises and play with them intuitively and musically.The first two channels let you choose from dozens of different algorithms and can be controlled dynamically by two CV controls.Textures, rumbles, low-fi blips, spikes, oscillator clusters, harsh noises, and much more can be chosen and changed on the fly.The third channel has three independent outs: Gritty noise to create crispy and crackling soundscapes, White noise, and a filtered version with either of those two.Features:• Two digital noise channels based on different algorithm banks• Two CV controlled parameters per algorithm• Analog Multimode Filter per channel (OTA based)• White and Granular Noise dedicated outputsed outputs.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€242.76*
Befaco - Percall
available
Percall is a percussive oriented module that will shape four different sound sources into percussive sounds. Percall has four VCAs with dedicated decay envelopes and a mixer, so you can prepare a percussion submix. Added strength input will provide extra dynamics to the sounds! To round up the module, audio inputs are normaled from one to two and from three to four, spicing them up with choke control. This allow to create open and closed Hats or kind of side-chained baselines with your kick.Features:• Four VCAs with dedicated decay envelope.• CV control over envelope decays.• Individual outputs for each envelope• Volume control per channel and normaled Mix out.• Strenght input affecting all four channels.• Audio Input 1 normaled to Input 2. Audio input 3 normaled to input 4.• Choke contrrols, binding Channel one with two and three with four.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€165.41*
Befaco - Rampage
available
Rampage is Befaco’s approach to an old invention: the Serge/Buchla ramp generator.We took the idea of a “patch programmable” function generator/processor, put two units in the same module and expanded them with new functions and ways to combine them: Slope detectors, analogue logic functions and evolved outputs.RAMPAGE APPLICATIONS• Voltage controlled Attack Decay envelope.• Attack Sustain Release Envelope .• More complex ADSR Style Envelope.• Dual VCO. With Square, PWM, Saw, Log, Exp and Triangle shapes. Hard and soft sync.• Gated VCO• VCO + Analog AND Gate (As ADTimbral VCA)• Dual Low Pass Filter• Dual Low pass Filter with VCO soft sync.• Low Pass Filter + AD Envelope• Dual “syncable” voltage controlled LFO with Square, PWM, Saw and Triangle shapes)• Complex LFO . Function combination.• CV controlled and “Ping-Pong” LFO.• Dual Slope detector. Distinguishes when and incoming signal (CV or audio) is rising or falling, and generates gates in concordance.• Comparator. Send a gate when B IN is bigger than A IN• Polyrythmic gate generator. With both channels synced between each other, it generates several “complex rhythm” gates.• Voltage controlled Slew limiter with independent attack and decay control and continuous variable shape between Log, linear and exponential• Peak Voltage follower. Max Out follow the maximum Level of the two inputs.• Minimum Voltage Follower. Min Out follow the minimum level of the two inputs• Envelope follower with adjustable response for rising ans falling flanks.• Voltage controlled Trigger Delay .• Burst Generator.Features:• Built around two voltage controlled Integrators aka Lag Processors.• Convert square signals into ramp waveforms• Achieve “Portamento” or “Glide” effect when applied to pitch CV signals.• Basic lowpass filteringDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€184.45*
