4ms - Meta Module
available
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.THIS PRODUCT IS ASSEMBLED AND NO DIY!The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments Eurorack modules, fun physical modeling algorithms, and lots of handy utilities.All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.MetaModule PluginsIf the 160+ built-in module aren’t enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. We have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. Our licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.Mapping Knobs and JacksThe MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.ExpandersThere are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.Under the HoodThere are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.Features:Patches• Patches are loaded from microSD Card, USB drive, or via the Wifi expander• Patches can be optionally saved onto internal flash memory• Create patches using VCV Rack or directly on MetaModule• Patches can be given a name and descriptionMappings• Map each physical knob to up to 8 virtual knobs• Set range and offset for each mapping, including inverted control• Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving• Map physical jacks to virtual jacks, seamlessly making splits/mults• Add or edit modules, cables, and mappings in real-time while the patch is playing• Create alias names for mappings like "Kick Drum Level"Interface• Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture• Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time• Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set• Module View shows just one module and lists the names of each jack, knob, and control legibly• Mapping View lets you adjust details of a knob mapping• Adjust styles and visual preferences to your liking• Save, rename, duplicate, and delete patches• Firmware updater and plugin loader read from microSD Card or USB driveHardware• 12 Knobs• 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 2 Gate inputs• USB-C jack: MIDI Host or MSC (External drive) Host• microSD Card slot• Internal Flash RAM for additional patch storage• Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor• 512MB DDR3 533MHz RAM• Bare-metal operation for fast startup and low latencyDIY-Kit-Type:Assembled unit. This is completely ready to use, nothing to solder or to assemble.
€649.00*
4ms - Quad Clock Distributor Expander (Black)
available
The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€166.60*
4ms - Quad Clock Distributor Expander (Silver)
only 2 left
The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€166.60*
ADDAC System - 217 Quad Gate to Trigger
available
Following our T-Networks series we came to realize how important it is to have the right input signal for firing drum modules or envelopes. Gates and Triggers are often looked at as similar signals but at times it really makes a difference and results will change drastically depending if a Gate or a Trigger is fed to the input of such modules.This led us to develop this simple yet effective Gate to Trigger.A four channel converter with bypass switch for each channel.Any input Gate will be limited to a 1ms Trigger.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€77.50*
ADDAC System - 307 Heart Sensing
only 2 left
Another addition to our ADDAC300’s Expressive Controls Series.Preceded by the release of our ADDAC303 Muscle Sensing module this is the second module we make to take advantage of the physical body as a control source.This module originated from a simple idea: using one’s heart beat as a control source.Using a clip-on sensor, that can be attached to a finger or an ear lobe, the user’s heart rate will be acquired by sensing the blood flow passing under the sensor. This pulse will generate a trigger and an AD envelope.Clip-on sensor will be provided with the module.Features:• 0 +5v Trigger output• 0 +10v Envelope output with:• Attack, Decay, Amplitude and Offset controls• Two leds monitor the Trigger and Envelope OutputsDIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€130.90*
AtoVproject - Gaeto (Black)
available
The AtoVproject Gaeto is a new type of clocked logic module. Gaeto is a great module to play around with triggers, gates and legatoes turning one into the other. As a result we decided to name the module Gaeto from “Gate” and “Legato”.The Gaeto’s function is to perform the following operation:“If the signal on the data input has been high, then the output is high at the next clock. If not - the non-output is high.”In other words, if the signal on the input signal goes over 1V then the memory stores a 1 if not it stores a 0. At the next clock the output will be high if a 1 was stored and the non output will be high if a 0 was stored.The output is coupled with an AND gate that allows for the outputs to either follow the pulse width of the clock or be maintained high until the next clock. This function is also CV controllable for interesting rhythm modulations.This rather obscure function allows for an extremely wide range of uses. This is a module that rewards exploration.Additionally, multiple Gaetos can be chained together using the included cable to create shift register functions.This design relies on CMOS CD4000 series ICs (4013 and 4081). These were selected for their reliability, high speed and low power consumption.Features:• /2 /3 Clock divider• Legato generator• Trigger to gate converter• Rhythm quantizer• Sub octave generator with PWM• Generative trigger sequenceDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€87.00*
AtoVproject - Gaeto (Silver)
only 1 left
The AtoVproject Gaeto is a new type of clocked logic module. Gaeto is a great module to play around with triggers, gates and legatoes turning one into the other. As a result we decided to name the module Gaeto from “Gate” and “Legato”.The Gaeto’s function is to perform the following operation:“If the signal on the data input has been high, then the output is high at the next clock. If not - the non-output is high.”In other words, if the signal on the input signal goes over 1V then the memory stores a 1 if not it stores a 0. At the next clock the output will be high if a 1 was stored and the non output will be high if a 0 was stored.The output is coupled with an AND gate that allows for the outputs to either follow the pulse width of the clock or be maintained high until the next clock. This function is also CV controllable for interesting rhythm modulations.This rather obscure function allows for an extremely wide range of uses. This is a module that rewards exploration.Additionally, multiple Gaetos can be chained together using the included cable to create shift register functions.This design relies on CMOS CD4000 series ICs (4013 and 4081). These were selected for their reliability, high speed and low power consumption.Features:• /2 /3 Clock divider• Legato generator• Trigger to gate converter• Rhythm quantizer• Sub octave generator with PWM• Generative trigger sequenceDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€87.00*
Bastl Instruments - Kompas
sold out at the moment
Probability Trigger Generator. Kompas is a three-coordinate probabilistic pattern navigator. Each coordinate has a unique travelling pace and a dedicated trigger output. The amount of probability can be adjusted manually or by external voltages. Once a coordinate has been adjusted, a new pattern is generated and looped until the next change of direction. This tool is the outcome of the environment we are in and is inspired by non-linear approach to music and life – don't build any expectations, choose your direction and discover new paths. Unlike common probability operation, instead of filtering a pre-determined sequence, Kompas uses probability to generate new looping patterns based on the direction you choose. Here is a video about Kompas.Features:• global clock and reset input• 3 x 32 step pattern generators with travelling algorithms• 3 CV inputs for coordinate modulation• 3 trigger outputs• 2/5/10ms selectable trigger length (via boot settings)• 5ms default trigger length• 5V trigger outputs• 0-5V protected CV inputs• 60Hz maximum clock rate (3600 BPM)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€152.32*
Befaco - Burst
available
Burst is a trigger processor and generator, designed to add an organic chain of events to your modular setup. You can see it like “Trigger Activated Trigger Burst”. Each time it is activated, either manually or with an external trigger, a given amount of triggers are generated. You can control Time Division, Distribution, Quantity, and Probability of the bursts.• With Burst synced to your tempo, you can create all kind of ratcheting effects and multiplications leading to doubles, triplets, quintuplets, and true Poly Rhythms for your modular system.• With very short time windows, Burst can help to synthesize fast repeating transients for “hand-clap like” sounds or modern drum hits.• Working in Cycle Mode, is also an excellent master clock with tap tempo functionality, and is able to achieve non linear distributed clocks.Features:• Custom trigger bursts up to 64 triggers.• Voltage Control burst Quantity with dedicated attenuator.• One Shot and Cycle play modes activated via manual controls or dedicated Trig Input.• Pingable clock input.• Voltage Control burst Distribution, Time Division and Probability.• Tempo and End of Cycle individual outputs for sync other modules.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€117.81*
Befaco - Instrument Interface
only 2 left
Instrument Interface is an eurorack pre-amp capable to bring any type of audio signal to modular levels thanks to its amplification circuit.The module can drive regular and condenser microphones (+48V Phantom Powered) as well as Instrument and Line signals with a very low distortion ratio.Instrument Interface offers some additional extra functions like a Trig/Gate extractor and Envelope Follower circuits, allowing you to use the character of your audio signal in more creative waysFeatures:• Neutrik combo Input• Phantom Power selector• Input Impedance selector• Separated Audio en Envelope Level controls.• Envelope Follower with attack and decay control• Gate and Trigger Extractor with threshold selector.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€154.70*
Black Noise Modular - Cosmos
available
Cosmos is a new kind of module that will help you to creating complex modulation, sounds, patterns with ease and will lead you to new sounds territories.Inspired by early analog computers, Cosmos is a unique, innovative, very flexible and fully analog module allowing it to be used as: VCO, LFO, Ring Mod, Polarizer, “VCA”, “LPG”, Phase Lock Loop, Cross-Modulation, Minimum, Maximum, Logic Gates, Waveshaper, Complex gate generator, Fuzz, Distorsion, Gate extractor, Trig extractor, Gate generator, Voltage generator, Trig Generator, comparator, window comparator, complex comparator, Half-Rectifier, Full-Rectifier, Inverter, Buffered Multiples, Mixer, Difference, Compressor, Sidechain, compressor, VC Clipper, VC Switch, Clock doubler, Envelope follower, and more.With its wide fields of application Cosmos can replace many modules but it will also bring new colors to your palette thanks to its unique character. This makes Cosmos the ideal module whether you have a small case or a big system. 100% analog and with an intuitive interface Cosmos is also very easy to use, no menu and button combo problems.Inspired by the past and crafted for the future, 100% analog Cosmos was not only thought to be the center of any system but also to blend perfectly with the rest of your case to form a consistent and coherent system.Cosmos was designed not only to be a swiss army knife module but also to push you to explore and you help create new sounds and explore sonic territories that were previously unattainable.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€320.00*
Clatters Machines - Garden Listener
sold out at the moment
The Garden Listener Eurorack module detects conductivity variations on living beings’ surface and transforms them into MIDI notes and CV signals. For once, leave those LFOs alone, and let any living conductive being modulate your signals. It detects conductivity variations on living beings’ surface and transforms them into MIDI notes, ranging from C-1 to C8, and CV signals (0 – 5V).Its behavior can be tamed through the one-knob menu from which you can choose and modify:• probes’ sensitivity (making it more or less sensitive to current variations)• scale (chromatic, major, minor, indian and arabic)• MIDI channel (from 1 up to 16)• LEDs’ brightnessIt generates trigger, gate, and CV (1V/oct). The CV output behavior can be modified via an octave selector which acts as a “CV equalizer” from which you can choose to generate CV only if the respective MIDI note lies within a certain octave range.The MIDI output allows you to take advantage of the sound of either any synthesizer equipped with a MIDI port or any VST in your DAW.The module comes with 3.5mm white probes and a set of snap-on adhesive reusable electrode pads. A MIDI-TRS type A adapter (not included) is required for the MIDI output.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€273.70*
Making Sound Machines / DivKid - DivSkip
only 2 left
DivSkip is a 4 Channel Trigger and Gate Processor, with loads of great modes. Bernoulli Gates, Clock Division, Turing, Euclidean Split, Euclidean Classic, Ramp / Gate Length, Retrigger and Pattern.Plug in triggers or gates from a clock, logic module or sequencer and generate new rhythms and variations. Modes include Probability, Clock Division, Turing, Euclidean, Retrigger, Gate Delays and 64 step preset patterns.Features:• 4 Channels of Triggers or Gates• push-to-mute• 8 modes per Channel• LED rings for visualizationDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€158.00*
Patching Panda - Particles
available
Particles, is 4 channels of trigger modulation, capable of mathematically variating and manipulating your patterns with a combination of fun features to play with. It can evolve your rhythmic idea into more complex and groovy patterns which are difficult to achieve without music knowledge.You can create your algorithms from the rhythmic tools provided to be able to change the patterns instantaneously in many ways without worrying to sacrifice the original idea.You can shift and scramble the outputs, you can repeat the triggers with different time signatures to transform the grooves, mute in different ways, disappear by probability trigger inputs, disappear by probability repetitions, use sequential switching to shift randomly with a different kind of resetting, bypass each channel and set it individually the amount of each feature per channel when feeding external CV.The idea of Particles, was designed to provide features for building complex breaks, grooves, organic-evolving percussion sounds, different options for arpeggios, and even bass line grooves, the limits are decided by you.Features:• 4 trigger inputs/outs.• Repetitions with different distribution time to choose from.• Manually shift the output channels, scramble them randomly or clocked them in foward mode.• Reset the ouputs to 4 different shift modes.• Dissapear repetitions by probability per channel.• Dissapear the input trigger by probability per channel.• Mute each channel with clock divisions from input clock.• Mute manually the outputs• Disable triplets from repetitions to have musical patterns• Random volatges output clocked from clock input.• The slider keeps the adjusted value from each feature.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€243.95*
Rebel Technology - Logoi
available
Λόγοι is a voltage controlled clock divider, counter, and delay. It subdivides and adds time, creating organic, evolving signatures. Λόγοι brings movement and life to the trigger signal, from a subtle swing to bizarrely complex and intricate rhythms. Instructions The functions of Λόγοι are split with division on the left, and addition on the right. The right side operates either in Counter mode, by adding clocks, or Swing mode, by adding a time delay. The mode is set by the centre switch. The module has CV inputs (top jacks) and trigger outputs (middle left/right jacks) for each side, and a combined trigger output (centre bottom jack) which gives the output of both operations: divide and add. The trigger input (bottom left and right jacks) is shared between division and addition. There is also a reset input (middle centre jack) and manual reset switch (push switch up). There are three LEDs indicating the divided and added output to the left and right, and the combined output in the centre. Divide The divider toggles its output every n clocks, where n is the divisor. The divisor is set with a manual (top knob) and CV level control, in a range from 1 to 32. Count With the switch in the down position, the additive side functions as clock counter. The counter will output a trigger signal every m clocks, where m is the addend. The range is from 1 to 32 clocks, with 16 in the centre position. The combined output will divide and count. If i is the incoming clock, n the divisor, and m the addend, then it will output a a trigger signal every i/n + m clocks. Note that when the addend is larger than the divisor, in other words, n < m, then the divider frequency is higher than the addition and the combined output will never trigger. Swing With the switch in the centre position, the right side adds a time delay to the input. The amount of delay, or swing, ranges from 0ms to around 1000ms. In Swing mode, the combined output passes all clocks through until each time the divisor triggers, when it adds a time delay. The result is that every n-th clock is delayed by m, where m is the amount of swing and n is the divisor. As in Count mode, if the divisor frequency is greater than the delay time, the combined output will not trigger. In Swing mode, this is determined by the combination of input clock frequency and delay time. DIY-Kit-Type: THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€122.57*

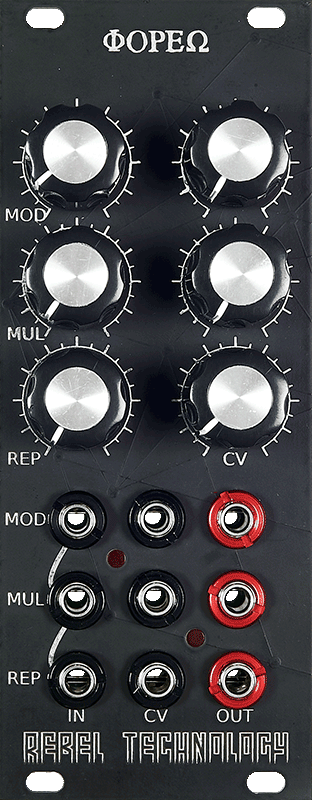

Rebel Technology - Phoreo
only 2 left
Φορέω is a triple function processor for triggers, gates and clocks. It simultaneously performs pulse width modulation, multiplication and repetition, with individual input, output and CV for each function.• Pulse width modulation, as a ratio of the input signal rate, is adjustable from 0 to 100 percent. Multiplication also operates on the input signal rate, multiplying it by a factor from 1 to 16.• Repetition generates a burst of triggers, at the rate of the multiplier, with repetitions adjustable from 1 to 16.Each function has two knobs for manual and CV level, and three jacks for trigger input, CV input and trigger output.Pulse width modulation carries through to the outputs of the two other functions, and the three trigger inputs are normalled from top to bottom.When multiply and repeat are combined, Φορέω makes an excellent burst generator, perfect for rolls, flams and fills. The repeater gives precise control over burst length, while the multiplier easily moves from quarter notes, to thirds, to eights, to everything in between and lots more beyond. Go on, give us a snare rush!Φορέω is also extremely versatile with many utility functions, such as master clock doubling, clock modulation, and for triggering and clocking fast sequences. It even works as a square wave overtone generator with PWM, tracking audio input signals up to 20kHz.Φορέω perfectly complements Στοιχεῖα, Λόγοι, Κλάσματα and Χρόνος, completing our Euclidean series of trigger processors.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€122.57*
Robaux - SWT16+
sold out at the moment
The Robaux SWT16+ is a 16-track eurorack trigger sequencer with up to 64 steps per track.The Sweet Sixteen Plus is perfect for triggering drums, envelopes or modulation sources.With the new member of the Robaux family, you can switch between eight different patterns.This will allow you to create even more exciting performances. You can store these patterns in up to 16 memory banks.Program your tracks step by step. Play your tracks on the fly. Or just use the new Euclidean rhythm generator.The new design has even more crazy flashing buttons! With the improved menu navigation, you can use the sequencer even more intuitive.The sequencer offers 16 different modes to create and modify rhythms. Modes are divided into four distinct areas:Create, Perform, Track Settings and Sequencer Settings.Randomize your tracks, move your steps or reverse your patterns. With these tools, you can discover entirely new rhythms.And the new Coin function adds even more variety to your beats.Features:• Number of Tracks: 16• Number of Steps per Track: up to 64• Number of Presets: 16• Number of Patterns per Preset: up to 8• 1 x Clock In• 1 x Reset In• 16 x Trigger Out• 1 x MIDI Out (Alternative firmware and adapter required)• 28 x backlight silicon button padsDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€245.00*
SetonixSynth - Detectorist
only 2 left
The SetonixSynth Detectorist is a 2 HP Gate-to-Trigger-to-Gate module, designed to provide useful “duty cycle”-like behavior from any sharp rising edge input.When triggered by either the gate input jack or manual pushbutton, the Detectorist will produce an adjustable-length pulse, spanning in length from 12 milliseconds - about 85 seconds over its three ranges. If the Detectorist is re-triggered while the output is already active, the count will reset but the output will remain active without dropping to zero, thus “tying” the pulses, or producing 100% duty cycle.Features:• Converts any rising-edge pulse to a gate with three time ranges• Overall hold range of 12ms - 85 seconds• Manual gate trigger/hold button• Capable of re-triggering while output is activeDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€53.00*
Shakmat - Knight's Gallop (discontinued)
sold out at the moment
AlgoRhythmic Generator. Two outputs and five different rhythmic flavors multiply by a load of “algo-rhythmic” processing to result in a practically infinite number of polyrhythms. That’s the fundamental formula that produces the Knight's Gallop principle : a dual trigger generator providing sequences according to tables and modes.The source tables contain patterns such as the Euclidean polyrhythms, and the modes allow the user manipulate and mangle those patterns according to different algorithms. As the module has two outputs, it is a very powerful instrument to create diversified and instantaneous polyrhythms.Features:• Dual Output Trigger Generator• Variable length sequences (up to 16 steps)• Length and Pulse amount potentiometers and CV inputs• Shift + & shift - buttons allowing to shift the sequence forward and backward• Main mode (MN) providing a lot of utlity modes for the second output : reset, no shift, invert and reverse• Compute mode (CP) calculating associated sequences for the second output delivering very musical polyrythm• Random mode (RD) adding randomness on the second output sequence, 4 amounts of randomness determined by the sub mode• Dual mode (DL) allowing to set the two outputs seperatly• Record mode (RC) turning the Knight's Gallop into a “play your sequence on the buttons to record it” module• Five different kind of tables for five different rythmic flavours : Divider Sequences, Classic Euclidean, Revised Euclidean, Anti Euclidean & Split Sequences• User replaceable firmware chipDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€134.47*
Zlob Modular - Diode Chaos
only 1 left
Chaotic voltage generator in 3HP. It is a unique module because it has never existed as an electronic music instrument until now. The module is based on a circuit from a paper called “A simple chaotic circuit with a light-emitting diode” written by Volos, Wang, Jafari, and Kapitaniak.Diode Chaos produces 3 phases of interrelated morphing voltages including a chaotic trigger out. The range is 20-30 seconds a cycle up to audio rate, although only the X out and TRIG out go up to audio rate. The frequency is controlled by the RATE knob. Each output exhibits different behavior at different rate settings. X,Y, and Z outs like to stay in the 4vpp range although at different RATE settings the outs can reach 10vpp. The TRIG out chaotically releases 0-10v triggers although sometimes it will spit out smaller voltage peaks.LED soldermask windows provide constant display of positive and negative voltage crossings. Differences between chaos and random (some quoted and summarized material from Ian Fritz’s site) chaos is “highly irregular, but still contained within a finite region (the “strange attractor”)”. Chaos occurs in 3 dimensions chaos needs a non-linear element (with Diode Chaos the nonlinear element is a red LED, and the chaos is directly visible and useable at the TRIG out).DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€54.00*
