4ms - Meta Module
available
The MetaModule puts real knobs and jacks on virtual software modules. Step back from the computer and make music with hardware, while keeping the flexibility and expandability of software.THIS PRODUCT IS ASSEMBLED AND NO DIY!The MetaModule comes with over 160 built-in modules from 4ms Company, Befaco, HetrickCV, NonlinearCircuits, and Scanner Darkly, plus clones of popular classics such as the Mutable Instruments Eurorack modules, fun physical modeling algorithms, and lots of handy utilities.All of the included modules are also available on the computer using the free program VCV Rack. Whether you make patches on VCV Rack and transfer them to the MetaModule, or if you just create patches directly on the MetaModule, there are plenty of creative modules to inspire new ways to make music.MetaModule PluginsIf the 160+ built-in module aren’t enough, you can load more modules as plugins. Already there are over 200 modules in third-party plugins from Bogaudio, Valley, ChowDSP, NANO Modular, and the list is growing. We have an SDK available to make it easy for VCV Rack plugin developers to convert their plugin to a MetaModule plugin. Our licensing terms are non-restrictive: developers are welcome to distribute their plugin in any way they wish, commercially or not.Mapping Knobs and JacksThe MetaModule has 12 knobs that can be mapped to virtual knobs. Each knob can be mapped to up eight virtual knobs, and each mapping can have a different range and offset. You also can save a group of mappings as a Knob Set and switch between Knob Sets with the encoder. You also can map the 8 inputs and 8 outputs to virtual module jacks. Also, the MetaModule is a USB MIDI host, so you also can map MIDI CC, note, gate, and other parameters to knobs and jacks.ExpandersThere are lots of ways to customize your MetaModule. A Wifi expander allows you to wirelessly transfer patches from your computer. Add eight more knobs with the Knob expander, or buttons with the Button expander. A CV/Audio expander adds more high-resolution inputs and outputs, and the Gate In/Out expander adds not only gate jacks but also TRS MIDI and I2C.Under the HoodThere are six CV/Audio inputs, two gate inputs, and six CV/Audio outputs. The CV/Audio jacks are all 24-bit, 48kHz DC-coupled, -10V to +10V. A USB-C jack accepts MIDI devices and thumb drives. Patches and plugins can be loaded via a USB drive or microSD Card, and internal flash memory lets you save patches you always want to come back to.The processor is more advanced than anything 4ms has used in the past, and is among the most powerful processors found in Eurorack. Startup time and latency are blazingly fast.Features:Patches• Patches are loaded from microSD Card, USB drive, or via the Wifi expander• Patches can be optionally saved onto internal flash memory• Create patches using VCV Rack or directly on MetaModule• Patches can be given a name and descriptionMappings• Map each physical knob to up to 8 virtual knobs• Set range and offset for each mapping, including inverted control• Knob mappings are grouped into Knob Sets, and changing Knob Sets can be done quickly without menu-diving• Map physical jacks to virtual jacks, seamlessly making splits/mults• Add or edit modules, cables, and mappings in real-time while the patch is playing• Create alias names for mappings like "Kick Drum Level"Interface• Simple, intuitive graphical interface lets you zoom in on details, or zoom out to get a big picture• Patch View displays the patch as faceplates and cables, with knobs, buttons, and lights animating in real-time• Knob Set View simplifies the display, showing only the mapped knobs for the current Knob Set• Module View shows just one module and lists the names of each jack, knob, and control legibly• Mapping View lets you adjust details of a knob mapping• Adjust styles and visual preferences to your liking• Save, rename, duplicate, and delete patches• Firmware updater and plugin loader read from microSD Card or USB driveHardware• 12 Knobs• 8 CV/Audio outputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 6 CV/Audio inputs, 24-bit 48kHz, -10V to +10V, DC-coupled• 2 Gate inputs• USB-C jack: MIDI Host or MSC (External drive) Host• microSD Card slot• Internal Flash RAM for additional patch storage• Dual-core 800MHz Cortex-A7 plus Cortex-M4 co-processor• 512MB DDR3 533MHz RAM• Bare-metal operation for fast startup and low latencyDIY-Kit-Type:Assembled unit. This is completely ready to use, nothing to solder or to assemble.
€649.00*
4ms - Quad Clock Distributor Expander (Black)
available
The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€166.60*
4ms - Quad Clock Distributor Expander (Silver)
only 2 left
The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€166.60*

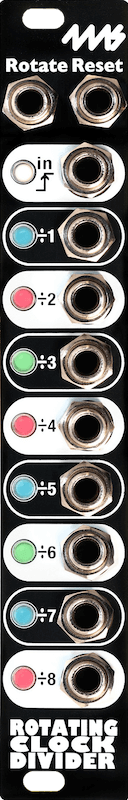

4ms - Rotating Clock Divider (Black)
only 2 left
The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.Features:• Divide-by-1 to Divide-by-64, on 8 output jacks• CV Rotate jack to shift divide-by amount on each jack• CV Reset jack to reset/re-sync all jacks• Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€104.96*

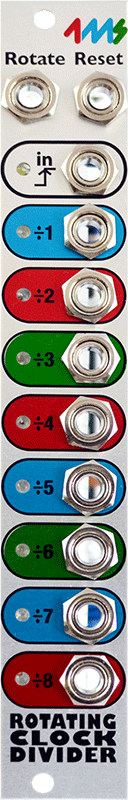

4ms - Rotating Clock Divider (Silver)
only 2 left
The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.Features:• Divide-by-1 to Divide-by-64, on 8 output jacks• CV Rotate jack to shift divide-by amount on each jack• CV Reset jack to reset/re-sync all jacks• Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€104.96*
4ms - Shuffling Clock Multiplier (Black)
available
The Shuffling Clock Multiplier (SCM) produces eight multiplied clock tempos from a single input clock, ranging from x1 to x8 (x32 by using the Breakout). Some of the outputs can be shuffled/swung. The amount of shuffle is controlled by a CV Slip jack. A Rotate CV jack re-assigns the multiplication number of each jack. More features of the SCM can be controlled by the SCM Breakout.Features:• Multiply-by-1 to Multiply-by-32, on 8 output jacks• Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)• Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects• CV Rotate jack to shift multiply-by amount on all jacks• CV Slip causes particular beats to land ahead in time• Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast• ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code• Maximum input frequency 3kHzDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€104.96*

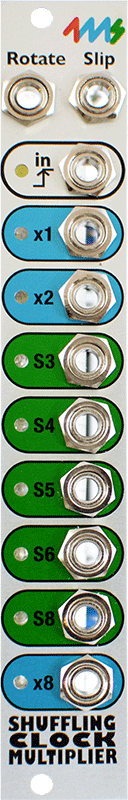

4ms - Shuffling Clock Multiplier (Silver)
only 1 left
The Shuffling Clock Multiplier (SCM) produces eight multiplied clock tempos from a single input clock, ranging from x1 to x8 (x32 by using the Breakout). Some of the outputs can be shuffled/swung. The amount of shuffle is controlled by a CV Slip jack. A Rotate CV jack re-assigns the multiplication number of each jack. More features of the SCM can be controlled by the SCM Breakout.Features:• Multiply-by-1 to Multiply-by-32, on 8 output jacks• Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)• Three steady clock outputs (x1, x2, and x8), which are not effected by Slip/Shuffle/Skip effects• CV Rotate jack to shift multiply-by amount on all jacks• CV Slip causes particular beats to land ahead in time• Connects to the SCM Breakout for controlling more features: Pulse Width, Shuffle pattern, Skip, Re-sync, Mute, and 4x Fast• ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code• Maximum input frequency 3kHzDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€104.96*
4ms - Shuffling Clock Multiplier Breakout (Black)
available
The SCM Breakout is an add-on module for the Shuffling Clock Multiplier. It adds a host of new features for controlling shuffle/swing patterns (Slip, Shuffle, and Skip), as well as Pulse Width, Mute, and 4x Fast. Each feature has a CV jack and manual knob. The Mute and 4x Fast buttons act as inverters of the gate signal on their respective jack, and light up to indicate on/off status.Features:• New features for version 2:• Mute and 4x Fast are LED buttons• Pressing Mute or 4x Fast inverts the signal on the jack• Knobs are centered straight up (12:00)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€109.48*
4ms - Shuffling Clock Multiplier Breakout (Silver)
only 2 left
The SCM Breakout is an add-on module for the Shuffling Clock Multiplier. It adds a host of new features for controlling shuffle/swing patterns (Slip, Shuffle, and Skip), as well as Pulse Width, Mute, and 4x Fast. Each feature has a CV jack and manual knob. The Mute and 4x Fast buttons act as inverters of the gate signal on their respective jack, and light up to indicate on/off status.Features:• New features for version 2:• Mute and 4x Fast are LED buttons• Pressing Mute or 4x Fast inverts the signal on the jack• Knobs are centered straight up (12:00)DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€109.48*
Black Noise Modular - Dual Rectifier 2
only 2 left
Dual Rectifier II is a small yet versatile and essential module for any Eurorack system. It can be used as an AC to DC converter, a distorsion, a complex waveform generator, a frequency doubler, a clock doubler or an envelope follower and more.Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance.Whether you're starting a small system or have a wall full of modules, Dual Rectifier II is a must-have for any Eurorack system.DUAL RECTIFIER II is divided into two sections:On top section the Positive Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 1.-Output 2 Half-rectified, signal from input 1 below 0V will be remove.-Output 3 Full-rectified, signal from input 1 below 0V will be rectified.On bottom section the Negative Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 2.-Output 2 Half-rectified, signal from input 2 above 0V will be remove.-Output 3 Full-rectified, signal from input 2 above 0V will be rectified.By default input 2 is normaled to output 1 (inverted) of the top section.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€88.00*
Black Noise Modular - Dual Rectifier 2 - S
only 2 left
Dual Rectifier II - S is a small yet versatile and essential module for any Eurorack system. It can be used as an AC to DC converter, a distorsion, a complex waveform generator, a frequency doubler, a clock doubler or an envelope follower and more.Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance.Whether you're starting a small system or have a wall full of modules, Dual Rectifier II - S is a must-have for any Eurorack system.DUAL RECTIFIER II - S is divided into two sections:On top section the Positive Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 1.-Output 2 Half-rectified, signal from input 1 below 0V will be remove.-Output 3 Full-rectified, signal from input 1 below 0V will be rectified.On bottom section the Negative Rectifier offer 1 input and 3 outputs :-Output 1 is an Inverted copy of input 2.-Output 2 Half-rectified, signal from input 2 above 0V will be remove.-Output 3 Full-rectified, signal from input 2 above 0V will be rectified.By default input 2 is normaled to output 1 (inverted) of the top section.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€88.00*
Extralife Instruments - Super Sixteen
available
Super Sixteen is a 64-step control voltage sequencer with gate, pitch, linear CV, and clock outputs, and a unique 2-handed programming interface that makes programming melodies, rhythms, an basslines a joy.Features:• Patch memory for 99 sequences• Up to 64 step sequence length• Selectable scales and swing timing• Intuitive motion recording• Per-step glide/portamento• Real-time rhythm and pitch effects like beat repeat, stutter roll, and randomization.• Code and hardware files are open-source for you to edit and experimentDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€166.60*
Making Sound Machines / DivKid - DivSkip
available
DivSkip is a 4 Channel Trigger and Gate Processor, with loads of great modes. Bernoulli Gates, Clock Division, Turing, Euclidean Split, Euclidean Classic, Ramp / Gate Length, Retrigger and Pattern.Plug in triggers or gates from a clock, logic module or sequencer and generate new rhythms and variations. Modes include Probability, Clock Division, Turing, Euclidean, Retrigger, Gate Delays and 64 step preset patterns.Features:• 4 Channels of Triggers or Gates• push-to-mute• 8 modes per Channel• LED rings for visualizationDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€158.00*
Music Thing Modular - Pulses (Turing Machine Expander)
sold out at the moment
Eleven rhythmic outputs for wONkY drum patterns.• Pulses turns the sequence from the main Turing Machine into a series of repeating rhythmic semi-random clock signals, that are based on the main clock input.• Seven of the 11 outputs are just the binary steps of the sequence on the front panel of the main module. The other four are derived from those pulses - so when steps 1+2 are active, the 1+2 output pulses.• As with most of the Turing Machine features, it is hard to explain, but very easy and intuitive in practice: send pulses from the module to anything that takes a rhythmic pulse; envelope generators, FM Index inputs, drum modules or other sequencers. Very complex polyrhythms come easily.• Because the Pulses are all related to the main module, they randomise, lock and change with that module. With the main module's big knob at 12 o'clock, the pulses are random. At 5 o'clock, they are locked, and at 3 o'clock they will 'slip' slowly over time.• You can try out a fully operational Turing Machine + Pulses + Volts in the free VCV Rack software.• Pulses connects around the back with a 16-way ribbon cable and works with any Turing Machine (Mk2, or Mk1 with the backpack).• Pulses uses Surface Mount components but is still a very simple build for anyone who has done a bit of through hole soldering beforehand.• Here is an epic series of videos from mixolydian2010 that documents the whole build process• Here's a very old audio demo from when I was developing Pulses, which shows the kind of polyrhythmic craziness it can create.• Despite involving SMD components, Pulses is a very straightforward DIY build, that most people complete without any problems. If you get stuck, the Pulses Github Issue List or the main Turing Machine issue list are probably the best places to start.DIY-Kit-Type:SMD-Kit-2. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. It includes SMD and through-hole parts! For build guide, more info, videos etc. please check the buttons below.
€52.30*
Music Thing Modular - Startup
sold out at the moment
Startup is a headphone amp, six-input mixer, tap tempo clock, divider & multiplier in 4hp. It's the perfect way to start a small Eurorack case. Full DIY Kit.Startup is designed to be the best way to start a small Eurorack case, featuring a Mixer, Clock & Headphone Amp. This is a really easy project for DIY newcomers, all the SMD components come pre-soldered and the PCB is programmed and testing prior to shipping. You just need to solder the buttons, jacks and pot. The Music Thing Modular ‘Startup’ is designed to be the best way to help start a small Eurorack case.This 4HP module does three things:1) It’s a 5 channel output mixer, with a spare channel for stereo signals (like a Korg Volca or a phone).2) It’s a nice clean headphone amp with two outputs.3) It’s a useful tap-tempo clock, with a second channel giving divided or multiplied clocks.The best way to understand Startup is with with the Quick Start Manual. (Use button below)DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€90.00*
Music Thing Modular - Turing Machine mk2
only 1 left
1) The Turing Machine makes music for you. It's a binary sequencer, based around a 16 bit memory circuit called a shift register. It’s a sequencer that you can steer in one direction or another, not one that you can program precisely.2) You cannot program this sequencer to play specific tunes. You cannot save sequences. You can never go back to a sequence that has changed.3) To put it another way: the Turing Machine produces clocked stepped randomly changing control voltages. In other words, melodies, basslines, sequences. Unlike many random voltage generators, these sequences can be locked into loops that repeat according to the length control.4) The Turing Machine has become one of the most popular Eurorack DIY projects since June 2012. The #turingmachine tag on Instagram contains lots of great demos (and a certain amount of the real Alan Turing).5) This 27 minute video from DivKid explains everything you need to know about the Turing Machine and the expanders.6) And here's me talking for 20 minutes about how the Turing machine works and how it was designed.7) Here is a nice review of the Turing Machine from Sound on Sound Magazine8) Turing Machine Expanders connect to the back of the module, and take the sequence from the main module and use it in different ways:- Volts adds an extra voltage output, with the sequence set by five pots.- Pulses turns the sequence into beats: eleven rhythmic pulse-train outputs.- Voltages adds two CV outputs controlled by 8 faders.- Vactrol Mix is a sequencer controlled matrix mixer. It's fantastic for rhythmically cutting up audio, stereo panning and feedback loops, but a little hard to explain.9) In the Turing Machine, looping is controlled by the big knob.- At noon, the sequences are random.- At 5 o'clock, it locks into a repeating sequence.- At 7 o'clock, it double locks into a repeating sequence twice as long as the 'length' setting.- At 3 o'clock or 9 o'clock, it slips; looping but occasionally changing notes.10) You can try out a fully operational Turing Machine + Pulses + Volts in the free VCV Rack software11) Electronically, the circuit was inspired by the long history of shift register pseudorandom synth circuits, including the Triadex Muse, Buchla 266 Source of Uncertainty and Grant Richter's Noisering.12) Musically, the module was inspired by 60s and 70s minimalist process music by people like Steve Reich, Terry Riley or Philip Glass: “I am interested in perceptible processes. I want to be able to hear the process happening throughout the music.To facilitate closely detailed listening a musical process should happen extremely gradually.” Steve Reich, Music as a Gradual Process, 196813) While designing the Turing Machine, I compiled this Random Reading List which includes notes on the history of random sequence generators from Marvin Minsky's Muse to Don Buchla's Source of Uncertainty to Doepfer's A-149 module.14) Tony Surgeon is a long-time Turing Machine user. In this workshop from 2016 he shows how he uses it to generate sequences which are then looped on an Octatrack.15) Turing Machine is open source, which has inspired many offshoots, alternative panels and third party expanders, including:- Mystic Circuits' Vert and Leaves- Grayscale Modular's Permutation- Magpie Modular's crazy combo panels- Software Turing Machines inside the Ornament & Crime module, Frames Parasites firmware, Reactor Blocks, VCV Rack Modules and even Mutable Instruments' Marbles.16) The Turing Machine is not a real Turing Machine the way Alan Turing explained it. The name is vaguely relevant because the module uses a loop of data being changed, but the similarity ends there. It's certainly not a 'probabilistic random sequence generator based on the research of Alan Turing' ;-).17) The original Mk1 documentation contains more detail about how the Turing Machine works, including a block diagram.18) The Turing Machine is a fairly straightforward through-hole DIY build, but it's fairly dense and takes a while to complete, so probably shouldn't be a first DIY project (I always recommend Mikrophonie or Mini Drive as first builds). Build documents are available from Thonk. If you get stuck, the Github Issue List is probably the best place to start - remember to check closed issues as well as open ones.Features:Turing Machine has the following expanders available:• Pulses MKii• Voltages• Volts• Vactrol MixDIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€129.90*

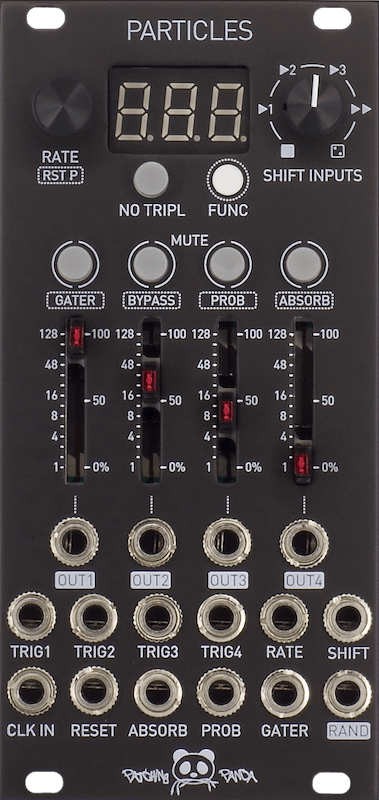

Patching Panda - Particles
available
Particles, is 4 channels of trigger modulation, capable of mathematically variating and manipulating your patterns with a combination of fun features to play with. It can evolve your rhythmic idea into more complex and groovy patterns which are difficult to achieve without music knowledge.You can create your algorithms from the rhythmic tools provided to be able to change the patterns instantaneously in many ways without worrying to sacrifice the original idea.You can shift and scramble the outputs, you can repeat the triggers with different time signatures to transform the grooves, mute in different ways, disappear by probability trigger inputs, disappear by probability repetitions, use sequential switching to shift randomly with a different kind of resetting, bypass each channel and set it individually the amount of each feature per channel when feeding external CV.The idea of Particles, was designed to provide features for building complex breaks, grooves, organic-evolving percussion sounds, different options for arpeggios, and even bass line grooves, the limits are decided by you.Features:• 4 trigger inputs/outs.• Repetitions with different distribution time to choose from.• Manually shift the output channels, scramble them randomly or clocked them in foward mode.• Reset the ouputs to 4 different shift modes.• Dissapear repetitions by probability per channel.• Dissapear the input trigger by probability per channel.• Mute each channel with clock divisions from input clock.• Mute manually the outputs• Disable triplets from repetitions to have musical patterns• Random volatges output clocked from clock input.• The slider keeps the adjusted value from each feature.DIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
€243.95*
Rebel Technology - Logoi
available
Λόγοι is a voltage controlled clock divider, counter, and delay. It subdivides and adds time, creating organic, evolving signatures. Λόγοι brings movement and life to the trigger signal, from a subtle swing to bizarrely complex and intricate rhythms. Instructions The functions of Λόγοι are split with division on the left, and addition on the right. The right side operates either in Counter mode, by adding clocks, or Swing mode, by adding a time delay. The mode is set by the centre switch. The module has CV inputs (top jacks) and trigger outputs (middle left/right jacks) for each side, and a combined trigger output (centre bottom jack) which gives the output of both operations: divide and add. The trigger input (bottom left and right jacks) is shared between division and addition. There is also a reset input (middle centre jack) and manual reset switch (push switch up). There are three LEDs indicating the divided and added output to the left and right, and the combined output in the centre. Divide The divider toggles its output every n clocks, where n is the divisor. The divisor is set with a manual (top knob) and CV level control, in a range from 1 to 32. Count With the switch in the down position, the additive side functions as clock counter. The counter will output a trigger signal every m clocks, where m is the addend. The range is from 1 to 32 clocks, with 16 in the centre position. The combined output will divide and count. If i is the incoming clock, n the divisor, and m the addend, then it will output a a trigger signal every i/n + m clocks. Note that when the addend is larger than the divisor, in other words, n < m, then the divider frequency is higher than the addition and the combined output will never trigger. Swing With the switch in the centre position, the right side adds a time delay to the input. The amount of delay, or swing, ranges from 0ms to around 1000ms. In Swing mode, the combined output passes all clocks through until each time the divisor triggers, when it adds a time delay. The result is that every n-th clock is delayed by m, where m is the amount of swing and n is the divisor. As in Count mode, if the divisor frequency is greater than the delay time, the combined output will not trigger. In Swing mode, this is determined by the combination of input clock frequency and delay time. DIY-Kit-Type: THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€122.57*
Rebel Technology - Phoreo
only 2 left
Φορέω is a triple function processor for triggers, gates and clocks. It simultaneously performs pulse width modulation, multiplication and repetition, with individual input, output and CV for each function.• Pulse width modulation, as a ratio of the input signal rate, is adjustable from 0 to 100 percent. Multiplication also operates on the input signal rate, multiplying it by a factor from 1 to 16.• Repetition generates a burst of triggers, at the rate of the multiplier, with repetitions adjustable from 1 to 16.Each function has two knobs for manual and CV level, and three jacks for trigger input, CV input and trigger output.Pulse width modulation carries through to the outputs of the two other functions, and the three trigger inputs are normalled from top to bottom.When multiply and repeat are combined, Φορέω makes an excellent burst generator, perfect for rolls, flams and fills. The repeater gives precise control over burst length, while the multiplier easily moves from quarter notes, to thirds, to eights, to everything in between and lots more beyond. Go on, give us a snare rush!Φορέω is also extremely versatile with many utility functions, such as master clock doubling, clock modulation, and for triggering and clocking fast sequences. It even works as a square wave overtone generator with PWM, tracking audio input signals up to 20kHz.Φορέω perfectly complements Στοιχεῖα, Λόγοι, Κλάσματα and Χρόνος, completing our Euclidean series of trigger processors.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€122.57*
Robaux - DCSN3
sold out at the moment
The Robaux Decision Tree randomly sends a gate to one of three outputs and then to one of three sub-outputs. Generate unpredictable rhythms. You can choose to route a gate to a single random output or play polyphonic gates. Utilize the knob to transition from total chaos to a repeating loop.The latch mode lets you hold an incoming gate. Pair it with a multimode filter to select various filter types. Use it to alternate between a variety of waveforms. The random input routing injects vibrancy into your sound.The DCSN 3 can also function as a traditional clock divider. The signal is split from half to 1/16 on the top four jacks. Additionally, a continuous sequence is output through the lower eight jacks. Odd divisions enable intricate rhythm creation. Utilize it at audio rate for polyphonic chords using just one square VCO.DIY-Kit-Type:THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
€79.00*
