CubuSynth - Engine v2
Product information "CubuSynth - Engine v2"

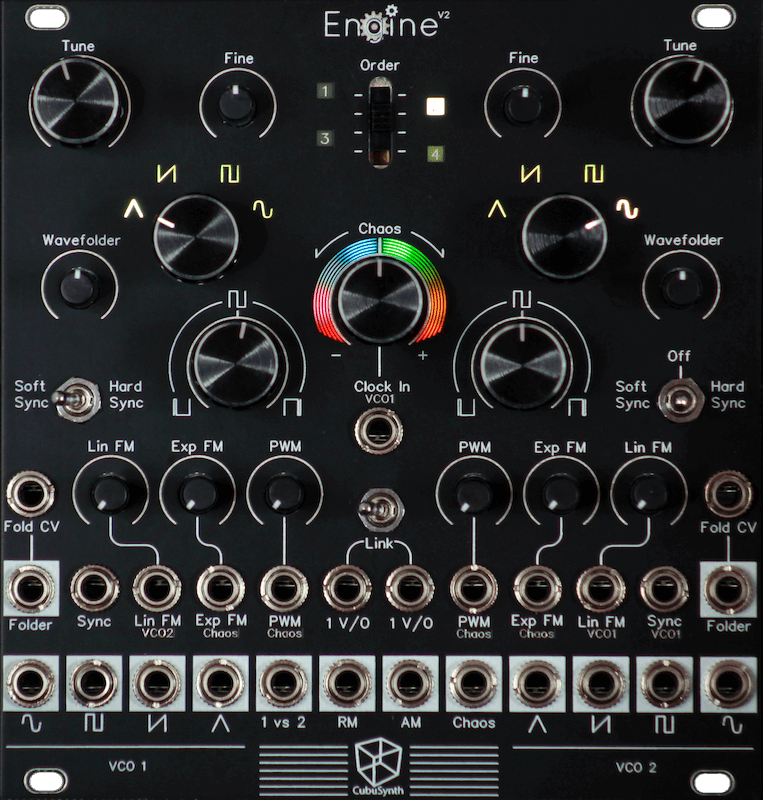

The CubuSynth Engine is a dual analog VCO with wave shaping functions, internal modulations and a chaos generator. It is based around the 3340 chip and features 4 Waveforms + Wavefolder per VCO and 4 Modulated Outputs, all simultaneously.
The CubuSynth Engine can work as 2 independent VCOs, or as one complex FM oscillator. With its inernal "Chaos Engine" it creates semi-random voltages, generated by the 2 oscillator cores. This signal is then normalized to the CV inputs for Pulse width modulation and exponential FM. Each of the 2 VCOs offers a switch to select one of the 4 waveshapes to be used by thewavefolders, and the linear FM input normalisations.
Features:
• 2 VCO cores (voices)
• 4 simultaneous wave forms per voice + 4 Modulation Outputs
• Wavefolder per voice
• Pulse Width modulation
• Linear and exponential FM inputs
• 1 V/oct tracking stable over up to 10 octaves
• Chaos generator with external clock input
• Complex internal normalized modulations
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
The CubuSynth Engine can work as 2 independent VCOs, or as one complex FM oscillator. With its inernal "Chaos Engine" it creates semi-random voltages, generated by the 2 oscillator cores. This signal is then normalized to the CV inputs for Pulse width modulation and exponential FM. Each of the 2 VCOs offers a switch to select one of the 4 waveshapes to be used by thewavefolders, and the linear FM input normalisations.
Features:
• 2 VCO cores (voices)
• 4 simultaneous wave forms per voice + 4 Modulation Outputs
• Wavefolder per voice
• Pulse Width modulation
• Linear and exponential FM inputs
• 1 V/oct tracking stable over up to 10 octaves
• Chaos generator with external clock input
• Complex internal normalized modulations
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +5 V [mA]: | 15 |
|---|---|
| Current draw +12 V [mA]: | 87 |
| Current draw -12 V [mA]: | 74 |
| DIY Level: | Advanced |
| Depth [mm]: | 24 |
| Width [HP]: | 24 |
| Format: | 3U |
| Panel / Color: | Black FR4 |
