Black Noise Modular - Dual Rectifier 2 - S
Product number:
100586
Product information "Black Noise Modular - Dual Rectifier 2 - S"
Dual Rectifier II - S is a small yet versatile and essential module for any Eurorack system. It can be used as an AC to DC converter, a distorsion, a complex waveform generator, a frequency doubler, a clock doubler or an envelope follower and more.
Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance.
Whether you're starting a small system or have a wall full of modules, Dual Rectifier II - S is a must-have for any Eurorack system.

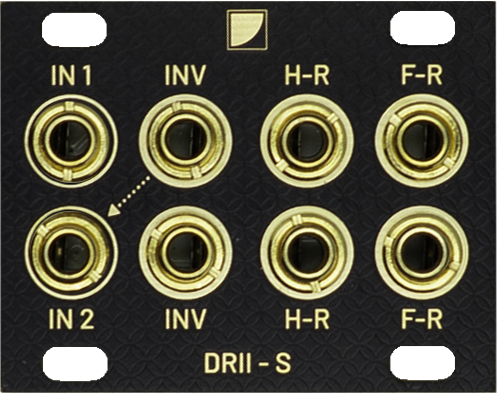

DUAL RECTIFIER II - S is divided into two sections:
On top section the Positive Rectifier offer 1 input and 3 outputs :
-Output 1 is an Inverted copy of input 1.
-Output 2 Half-rectified, signal from input 1 below 0V will be remove.
-Output 3 Full-rectified, signal from input 1 below 0V will be rectified.
On bottom section the Negative Rectifier offer 1 input and 3 outputs :
-Output 1 is an Inverted copy of input 2.
-Output 2 Half-rectified, signal from input 2 above 0V will be remove.
-Output 3 Full-rectified, signal from input 2 above 0V will be rectified.
By default input 2 is normaled to output 1 (inverted) of the top section.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
Like all our modules, Dual Rectifier II is built with high-quality components only and designed to offer the best performance.
Whether you're starting a small system or have a wall full of modules, Dual Rectifier II - S is a must-have for any Eurorack system.
DUAL RECTIFIER II - S is divided into two sections:
On top section the Positive Rectifier offer 1 input and 3 outputs :
-Output 1 is an Inverted copy of input 1.
-Output 2 Half-rectified, signal from input 1 below 0V will be remove.
-Output 3 Full-rectified, signal from input 1 below 0V will be rectified.
On bottom section the Negative Rectifier offer 1 input and 3 outputs :
-Output 1 is an Inverted copy of input 2.
-Output 2 Half-rectified, signal from input 2 above 0V will be remove.
-Output 3 Full-rectified, signal from input 2 above 0V will be rectified.
By default input 2 is normaled to output 1 (inverted) of the top section.
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 5 |
|---|---|
| Current draw -12 V [mA]: | 3 |
| DIY Level: | Easy |
| Depth [mm]: | 20 |
| Width [HP]: | 10 |
| Format: | 1 U |
| Panel / Color: | Black FR4 |
Manufacturer "Black Noise Modular"
Black Noise Modular specializes in the production of handcrafted boutique Eurorack modules in Dijon, France. They design distinctive, innovative and high-quality tools for sound explorers who want to delve into unexplored sonic worlds. Their commitment to quality, sound and functionality is rock solid, allowing you to unleash your creativity with ease.
