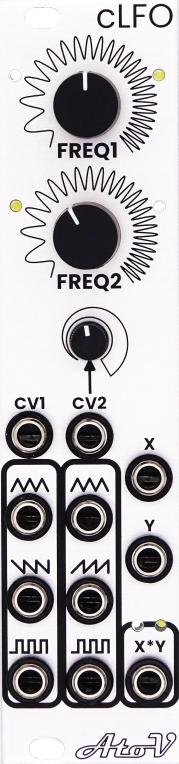

AtoVproject - cLFO
Product number:
100630-SV
Product information "AtoVproject - cLFO"
Introducing our innovative Complex Low Frequency Oscillator (cLFO) - The cLFO is an instrument for those who believe in pushing the limits of modulation. Featuring two CV-controlled LFOs that intricately intermodulate and are seamlessly integrated with a ring modulator, this module elevates your synthesis and sound design to unprecedented levels.
Crafted with a focus on cross and self-patching, the cLFO invites you to explore the endless possibilities of modulation. Dive into creating continuously variable waveforms, exponential shapes, bouncing ball effects, immersive stereo soundscapes and many other sonic wonders!
Each LFO outputs Triangle, Saw, and Square waves. The Triangle output of LFO1 is normalled to the CV input of LFO2 with attenuation. The addition of a ring modulator to this setup draws from years of the designer's own experimental projects. It is an invitation to experiment with effects traditionally reserved for audio in the realm of modulation. A ring modulated LFO delivers the rhythmical essence of a conventional LFOs but with an added complexity and variability that ensures your soundscapes are always evolving.
This module offers an expansive modulation frequency range, with speed adjustments from as slow as 2 minutes per cycle to as fast as 20 cycles per second. With CV control, frequencies can stretch from 13 hours per cycle to 400 cycles per second, ensuring unparalleled versatility in your modulation explorations.
Accompanying the cLFO is a detailed manual filled with lots of patch idea designed to elevate your sound design skills to new levels.
Dive into the world of advanced modulation manipulation with cLFO.
Stay inspired! Stay innovative!
Features:
• Two analog LFOs
• Control voltage over LFO frequency
• 3 waveform outputs per LFO: Triangle, Square and Sawtooth (LFO1 - ramp down; LFO2 ramp up)
• Wide frequency range: 2 minutes - 0.05s (20Hz) without CV and 13 hours to 400Hz with CV
• Ring Modulator (aka four quadrant multiplier aka bipolar VCA)
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
Crafted with a focus on cross and self-patching, the cLFO invites you to explore the endless possibilities of modulation. Dive into creating continuously variable waveforms, exponential shapes, bouncing ball effects, immersive stereo soundscapes and many other sonic wonders!
Each LFO outputs Triangle, Saw, and Square waves. The Triangle output of LFO1 is normalled to the CV input of LFO2 with attenuation. The addition of a ring modulator to this setup draws from years of the designer's own experimental projects. It is an invitation to experiment with effects traditionally reserved for audio in the realm of modulation. A ring modulated LFO delivers the rhythmical essence of a conventional LFOs but with an added complexity and variability that ensures your soundscapes are always evolving.
This module offers an expansive modulation frequency range, with speed adjustments from as slow as 2 minutes per cycle to as fast as 20 cycles per second. With CV control, frequencies can stretch from 13 hours per cycle to 400 cycles per second, ensuring unparalleled versatility in your modulation explorations.
Accompanying the cLFO is a detailed manual filled with lots of patch idea designed to elevate your sound design skills to new levels.
Dive into the world of advanced modulation manipulation with cLFO.
Stay inspired! Stay innovative!
Features:
• Two analog LFOs
• Control voltage over LFO frequency
• 3 waveform outputs per LFO: Triangle, Square and Sawtooth (LFO1 - ramp down; LFO2 ramp up)
• Wide frequency range: 2 minutes - 0.05s (20Hz) without CV and 13 hours to 400Hz with CV
• Ring Modulator (aka four quadrant multiplier aka bipolar VCA)
DIY-Kit-Type:
THT-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. Only trough-hole parts to solder. Make sure to check the build guide before you buy. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 52 |
|---|---|
| Current draw -12 V [mA]: | 60 |
| DIY Level: | Medium |
| Depth [mm]: | 25 |
| Width [HP]: | 6 |
| Format: | 3 U |
| Panel / Color: | Silver Alu |
Manufacturer / Hersteller:
Arthur Gibert AtoVproject
Einbecker Str. 76 B
10315 Berlin
Germany
support@atovproject.de
Product Safety Information
Eurorack DIY Kits
Important Notice & Intended Use
Please read this safety guide before installation or use. This kit is intended for adult users experienced in electronics and modular synthesis. Assembly, including soldering, is required. Proper testing and installation are essential to ensure safe and functional operation. The completed module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
General Warnings
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
• Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the module.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it in your Eurorack system. When the unit has malfunctions due to incorrect assembly, the entire Eurorack system might be damaged. It's a good idea to test it in a separate case with only that single module.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Mount securely in a Eurorack case using the provided screws.
• Use only the included or manufacturer-recommended power cable.
• Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
Contact Information
For further assistance, contact the manufacturer (you'll find the info under each product in our shop) or our shop support team at:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19, 04229 Leipzig, Germany
support@exploding-shed.com
Arthur Gibert AtoVproject
Einbecker Str. 76 B
10315 Berlin
Germany
support@atovproject.de
Product Safety Information
Eurorack DIY Kits
Important Notice & Intended Use
Please read this safety guide before installation or use. This kit is intended for adult users experienced in electronics and modular synthesis. Assembly, including soldering, is required. Proper testing and installation are essential to ensure safe and functional operation. The completed module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
General Warnings
1. Electrical Hazards:
• Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). Incorrect voltage can damage the module and pose a safety risk.
• Never connect or disconnect the module while the Eurorack system is powered on.
• Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.
2. Heat Generation:
• The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
3. Sharp Edges:
• The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
4. Small Parts:
• Contains small parts that could cause a choking hazard. Keep away from children and pets.
5. Compatibility:
• This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Assembly Requirements
• Soldering skills are required to complete the module.
• Ensure a clean, well-lit and ventilated workspace free of flammable materials during assembly.
• Use appropriate tools and safety equipment, such as eye protection.
Testing
• Test the module thoroughly for shorts or incorrect assembly before powering it in your Eurorack system. When the unit has malfunctions due to incorrect assembly, the entire Eurorack system might be damaged. It's a good idea to test it in a separate case with only that single module.
• Use a multimeter or other appropriate tools to confirm proper functionality.
Installation and Use
• Mount securely in a Eurorack case using the provided screws.
• Use only the included or manufacturer-recommended power cable.
• Connect only when the power is off.
• Follow the module's user guide for instructions on operation. Do not exceed the input/output limits specified.
Responsibility
Users are solely responsible for proper assembly and testing. Contact manufacturer support for assistance if needed.
Environmental Safety
• Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
• The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
Contact Information
For further assistance, contact the manufacturer (you'll find the info under each product in our shop) or our shop support team at:
Tech Creation Lab Leipzig UG (haftungsbeschränkt)
Nonnenstrasse 19, 04229 Leipzig, Germany
support@exploding-shed.com
Manufacturer "AtoVproject"
AtoVproject is a Berlin based manufacturer that has strong ties with the local synthesizer community. AtoVproject aims at creating units that last a lifetime while also being as sustainable as possible, therefore great effort is put into the quality of our products.
