Products of Apollo View

Apollo View is a boutique Eurorack manufacturer from the South East of England, dedicated to crafting high-quality modules for synth enthusiasts, sound designers, and artists around the planet. Our mission is simple: to ignite creativity and propel artists to explore new sonic frontiers.

Building upon our heritage in hardcore, electro, and drum & bass production, we continue creating music as Apollo View. This experience ensures that musicality and functionality are at the forefront of our designs. Our design language combines striking aesthetics with versatile sonic capabilities. Our modules offer a range of sound-shaping possibilities that allow artists to explore and create diverse electronic music textures and styles.

At Apollo View, we hold craftsmanship in the highest regard. We utilise top-quality components to ensure each module's longevity and outstanding sonic performance.

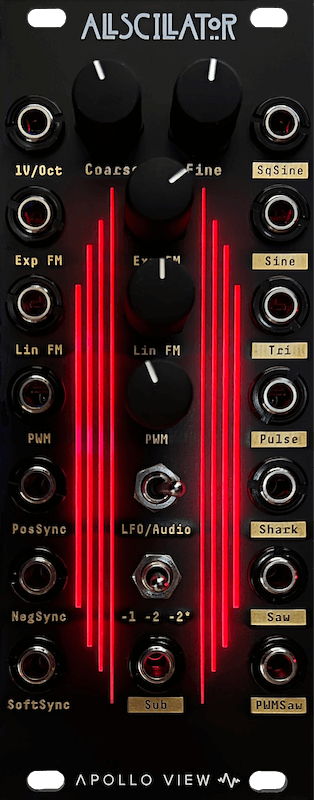

Apollo View - Allscillator

only 2 left

'ALL' the oscillator waveforms in 10 HP - No ordinary 3340 VCO!Extremely stable across all temperatures, wide-ranging (0.0011Hz - 20kHz), all analogue triangle core VCO / LFO / Ultra-LFO based on 3340 VCO IC, which utilises the full potential of the 3340’s capabilities and adds additional wave-shaped outputs.Features:• 1V/oct tracking over +10 octaves• Eight simultaneously available waveforms• Unique PWM Saw• Sub Pulse waveform (-1 octave, -2 octave, -2* octave)• Audio / LFO / Ultra LFO modes (up to 15 mins)• Exponential Frequency Modulation• Linear Frequency Modulation• Exp FM and Lin FM simultaneously available• Positive edge Hard Sync• Negative edge Hard Sync• Soft Sync• 3 Sync types simultaneously available• Coarse Knob sweeps 5 octaves in Audio mode• Fine Knob sweeps -+5 semitones in Audio mode• Extremely stable across all temperaturesDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€299.88*

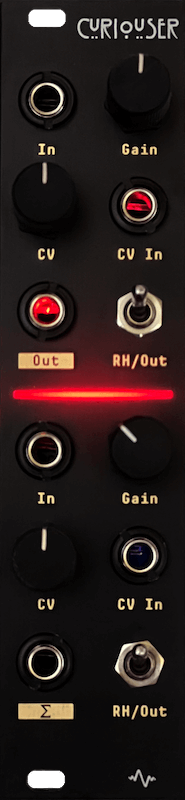

Apollo View - Curiouser

sold out at the moment

6 HP expander for Rabbit Hole. Provides 2 additional input channels. Each channel can either be sent to Rabbit Hole or used as a standalone VCA. When used standalone, the two channels are normalled to sum at the bottom output. Gain CV is normalled from Rabbit Hole.Features:• Expander for Rabbit Hole• 2 inputs with vintage character OTA VCA• Each channel can be used as a standalone VCA• Attenuverters for CV inputs• All analogue signal pathDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€123.76*

Details

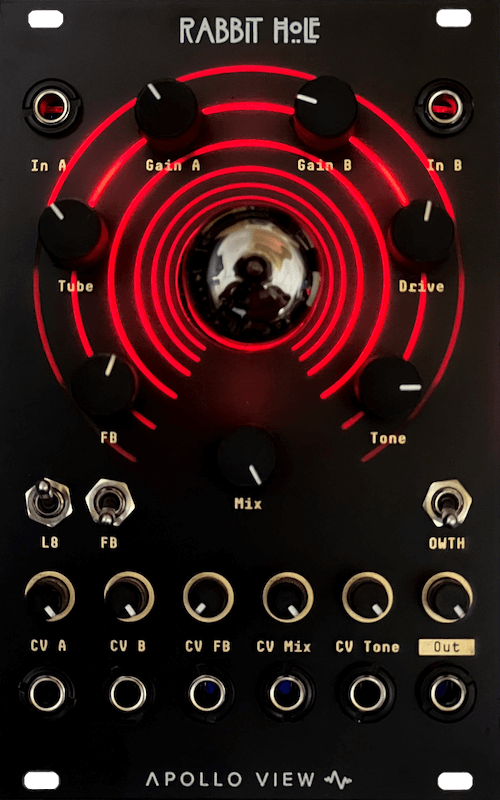

Apollo View - Rabbit Hole

sold out at the moment

16 HP summing mixer with characterful valve saturation & distortion. Rabbit Hole is a hybrid solid-state and vacuum tube design. It has two input channels with independent vintage VCAs. The outputs of the VCAs are summed and passed to a solid-state Drive circuit which at higher gain settings hard clips the signal before entering the starved cathode dual-triode vacuum tube. The OWTH - Off With Their Heads diode LED clipping circuit can be engaged for further distortion.Features:• 2 channel mixer with vintage character OTA per input VCAs• 12AU7 Vacuum Tube Core• Fat sounding all analogue signal path• 4 possible stages of distortion• Tone shaping with CV control• Dry/Wet Mix with CV control• Feedback with CV control• Attenuverters on all CV inputs• Switchable diode clipping circuit “OWTH - Off With Their Heads”• “L8” Switch to change Tube characterDIY-Kit-Type:SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.

€276.08*

Details
