Alfa Rpar - AS3046D - NPN Transistor Array
Product number:
103111SO14
Product information "Alfa Rpar - AS3046D - NPN Transistor Array"

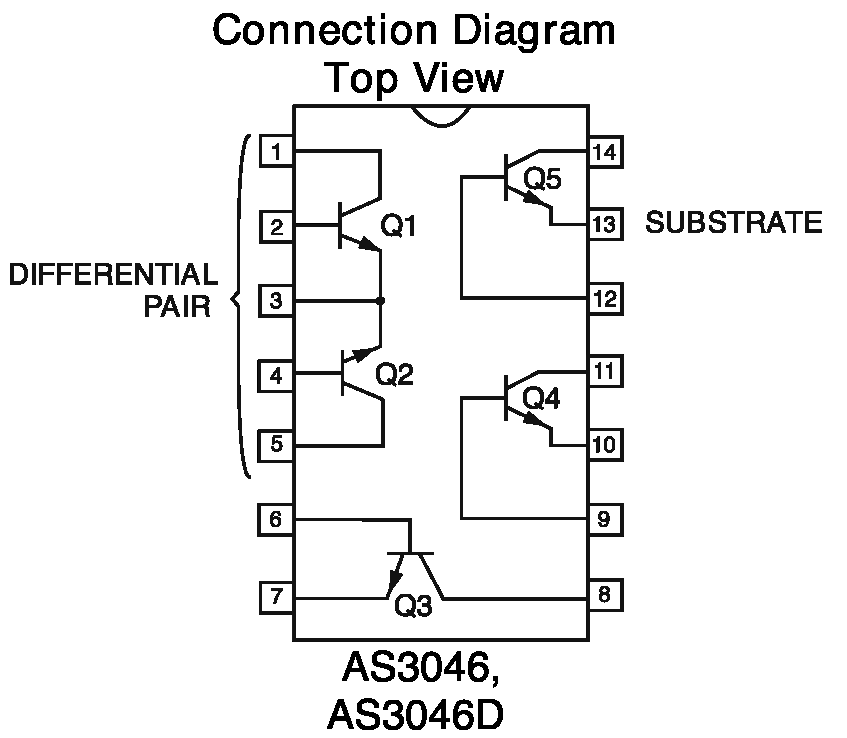

The AS3046 consists of five general purpose silicon NPN transistors on a common monolithic substrate. Two of the transistors are internally connected to form a differentially-connected pair. The transistors are well suited to a wide variety of applications in low power system. They may be used as discrete transistors in conventional circuits however, in addition, they provide the very significant inherent integrated circuit advantages of close electrical and thermal matching.
Features:
• matched pair of npn transistors
• VBE matched less than ±1 mV
• 5 general purpose monolithic transistors
• wide operating current range
Applications:
• filters
• custom designed differential amplifiers
• temperature compensated amplifiers
Features:
• matched pair of npn transistors
• VBE matched less than ±1 mV
• 5 general purpose monolithic transistors
• wide operating current range
Applications:
• filters
• custom designed differential amplifiers
• temperature compensated amplifiers
| Basic Function: | NPN Transistor Array |
|---|---|
| IC Package: | SOIC-14 (SMT) |
| Pin Count: | 14 |
| Pin Pitch [mm]: | 1,27 |
| Technology: | SMT |
