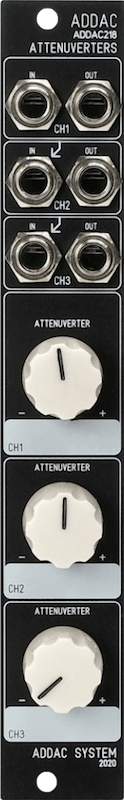

ADDAC System - 218 Attenuverters
DIY-Kit-Type:
SMD-Kit-1. This is a Do-It-Yourself kit, not an assembled module. The kit includes all parts to build the module. All SMD parts are pre-soldered, only trough-hole parts to solder. For build guide, more info, videos etc. please check the buttons below.
| Current draw +12 V [mA]: | 40 |
|---|---|
| Current draw -12 V [mA]: | 40 |
| DIY Level: | Easy |
| Depth [mm]: | 25 |
| Width [HP]: | 4 |
| Format: | 3U |
| Panel / Color: | Black Alu |
